Automatic new energy automobile motor winding machine
This motor stator winding machine is suitable for the manufacture of new energy automobile motors.
The mold adopts a modular design, and the winding adopts a dual-mode rotary winding mechanism with a three-axis mechanical arm wiring mechanism to achieve uniform arrangement of the windings into the wire-embedding mold.
The wound wire package is evenly arranged and has no cross, which is convenient for wire embedding. It solves the problem of irregular winding when the multi-strand electromagnetic wire is wound in the ordinary threading machine.
It has the function of automatic alarm for whether the U, V and W phases of the workpiece are embedded in the set one of the wrong phases and automatic identification of whether the stator is in place, that is, the incoming material foolproof function.
It is convenient and quick to disassemble and replace during maintenance or product change.
Motor Winding Machine Application
The automatic motor winding machine is suitable for new energy vehicle motors, electric vehicle motors, electric motorcycle motors, electric tricycle motors, and electric rickshaw motors.
Motor Winding Machine Main Technical Data
| Product name: | Automatic new energy automobile motor winding machine |
| Wire diameter: | 0.2~1.2mm |
| Max stack height: | 100mm |
| Max stack OD: | 160mm |
| Winding speed: | ≤2500RPM |
| Winding head: | 1pc |
| Fly fork diameter: | 300mm |
| Transfer number: | 1~5 section |
| Power supply: | 380V/50/60HZ 7KW |
| Weight: | about 1200kg |
| Dimension: | L2400*W1000*2450mm |
We can customize the machine according to your needs, please feel free to contact us.

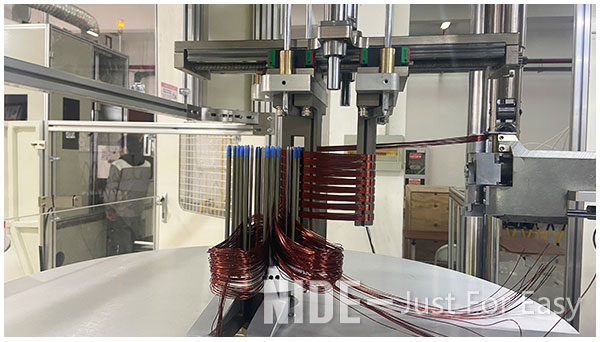

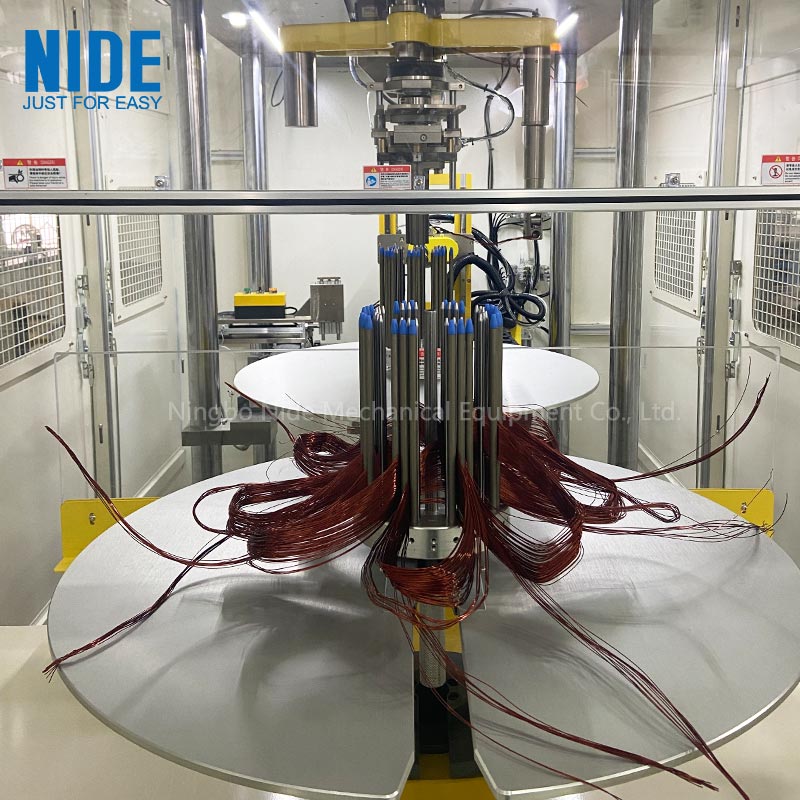

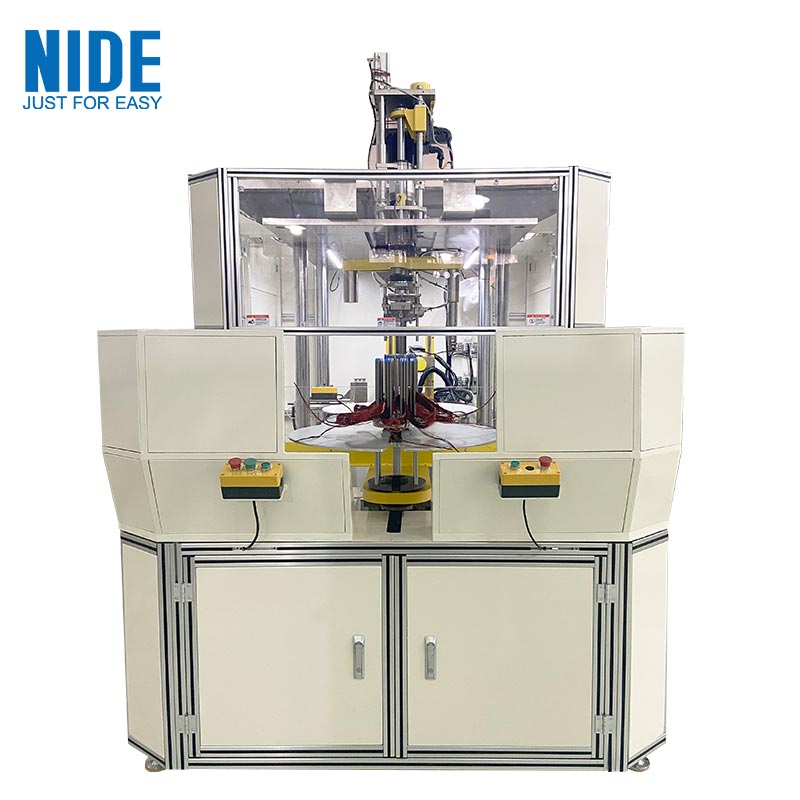

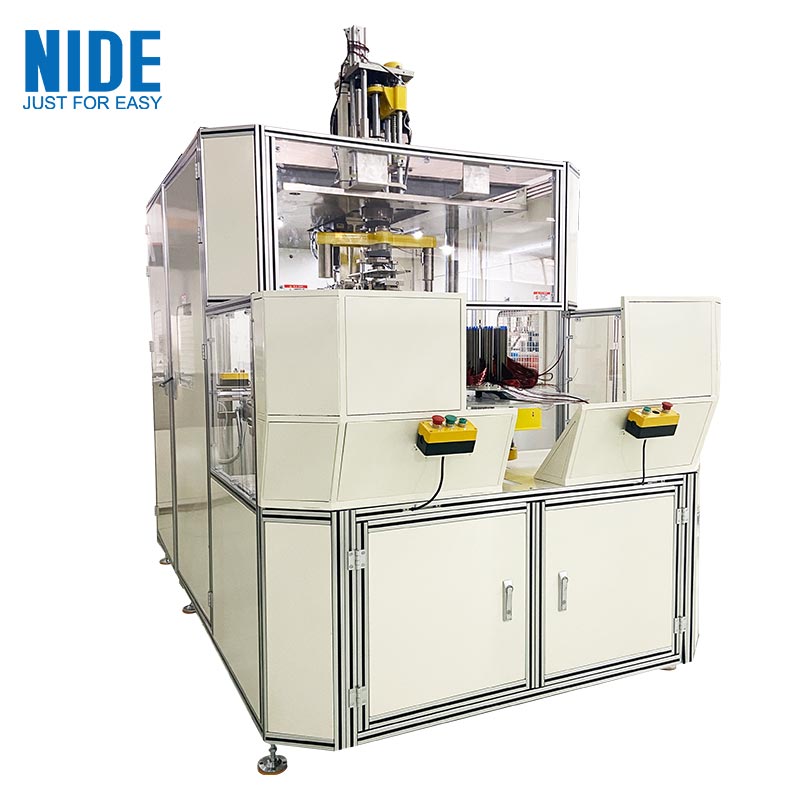

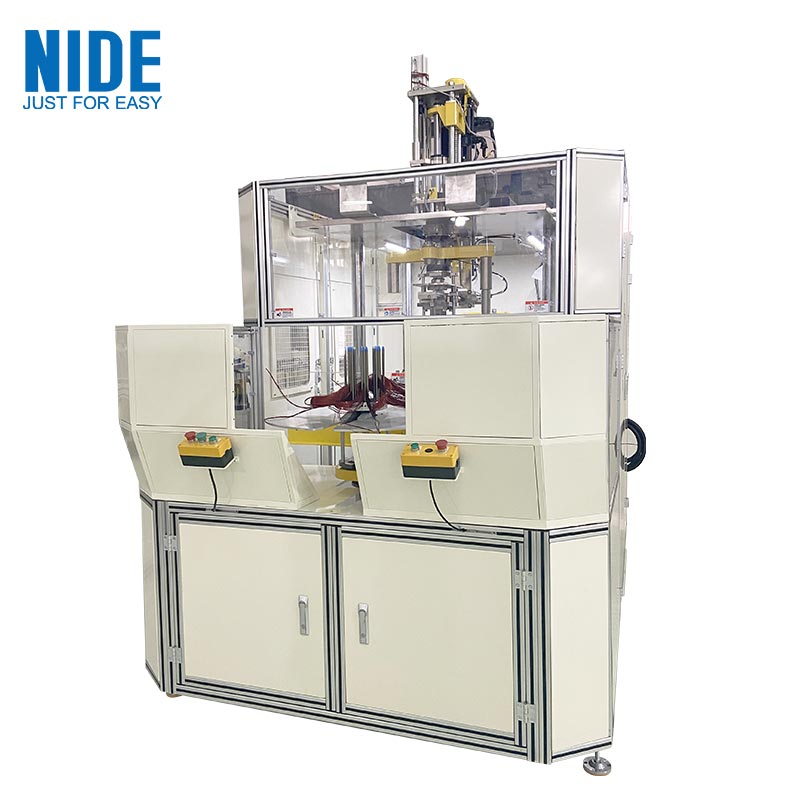

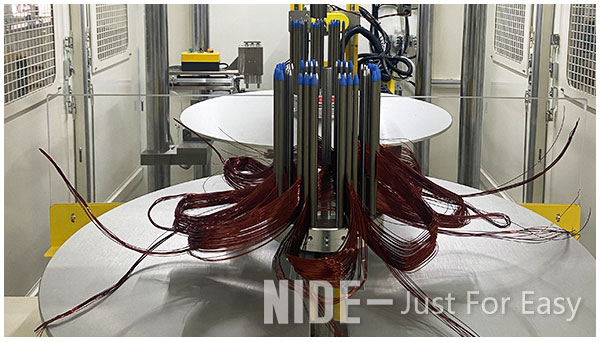

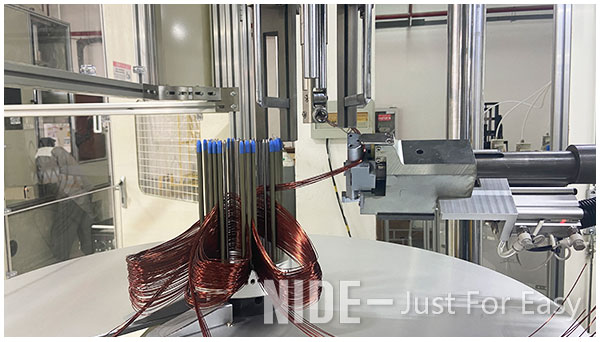

Motor Winding Machine Picture Show
