(1) Application
The automatic stations stator coil binding lacing machine production assembly line has 4 working stations .And it greatly improved production efficiency in the electric motor manufacturing. It is suitable for air conditioner motor,pump motor, compression motor, fan motor, washing machine motor and generator motor ,etc.
(2) Technical data
| Product name: | Fully automatic induction motor stator coil binding machine production assembly line |
| Stator ID： | ≤100mm |
| Stator OD： | φ40-φ160mm |
| Stack Height： | 30-160mm |
| Height of Coil： | ≤65mm |
| Pitch time： | ≤14s/pc（24 slots） |
| Air Pressure： | 0.4-0.6MPa |
| voltage： | 380V 50/60Hz |
| Power supply： | 6Kw |
| Dimension： | (L)2000×(W)1100×(H)1900mm |
| Weight： | about 1500Kg |
(3)Machine main function and characteristic
1.This motor stator coil lacing and binding machine production assembly line adopts turntable plates structure with four working station,
2.Different lacing pattern can be set, such as slot by slot lacing, interval slot lacing and fancy lacing.
3.With fast speed, low noise, simple operation and easy tooling change, this machine can be connected to automatic stator production line.
4.It is equipped with stator pressing device, auto feeding device, auto wire feeding device, auto knotting device, auto cutting device and etc.
5.Overhang winding adopts twin needle lacing simultaneously. Needle transposition, hooking and stator indexing are controlled by five spindle servo system.
6. The stator coil lacing machine production line is suitable for mass production and greatly save time and labor cost.

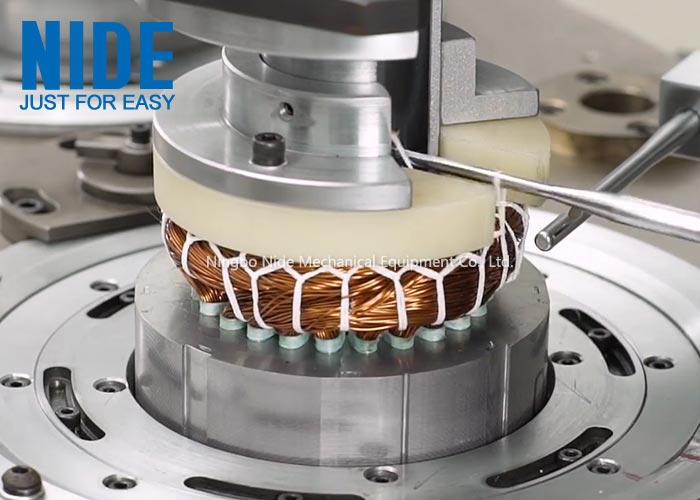

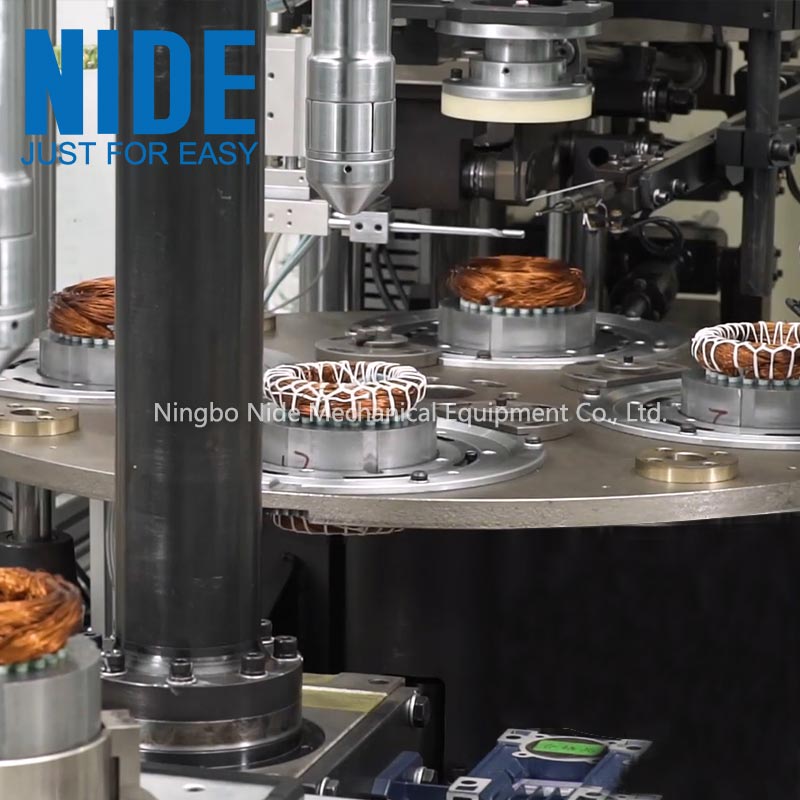

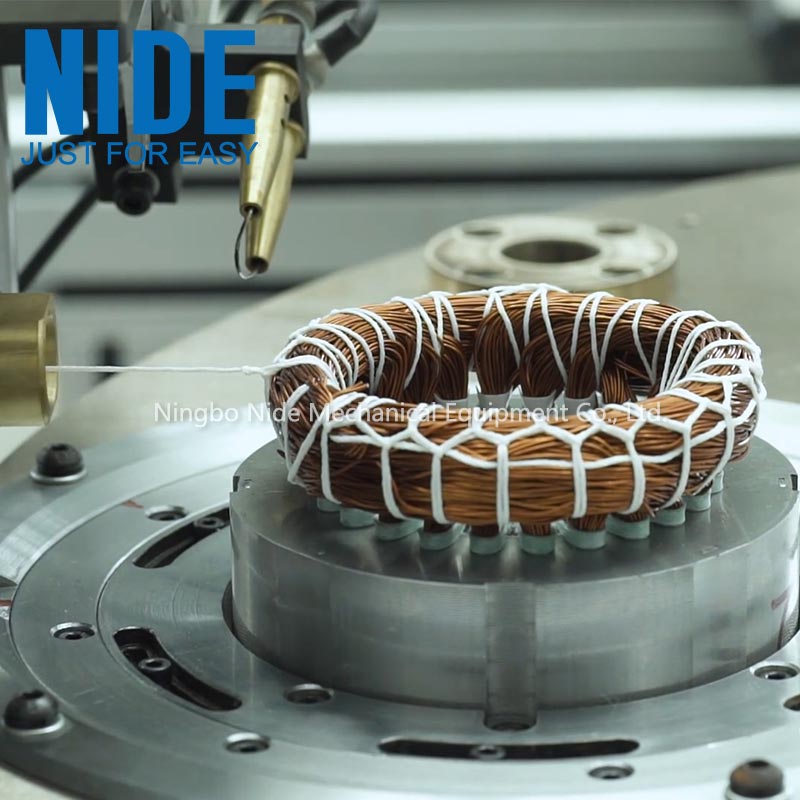

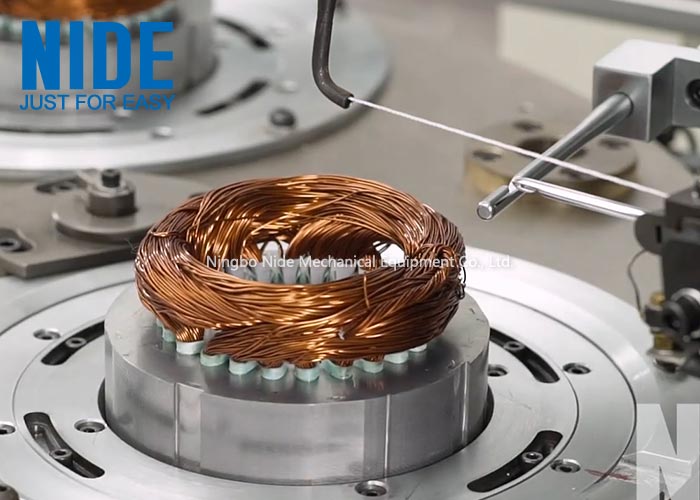

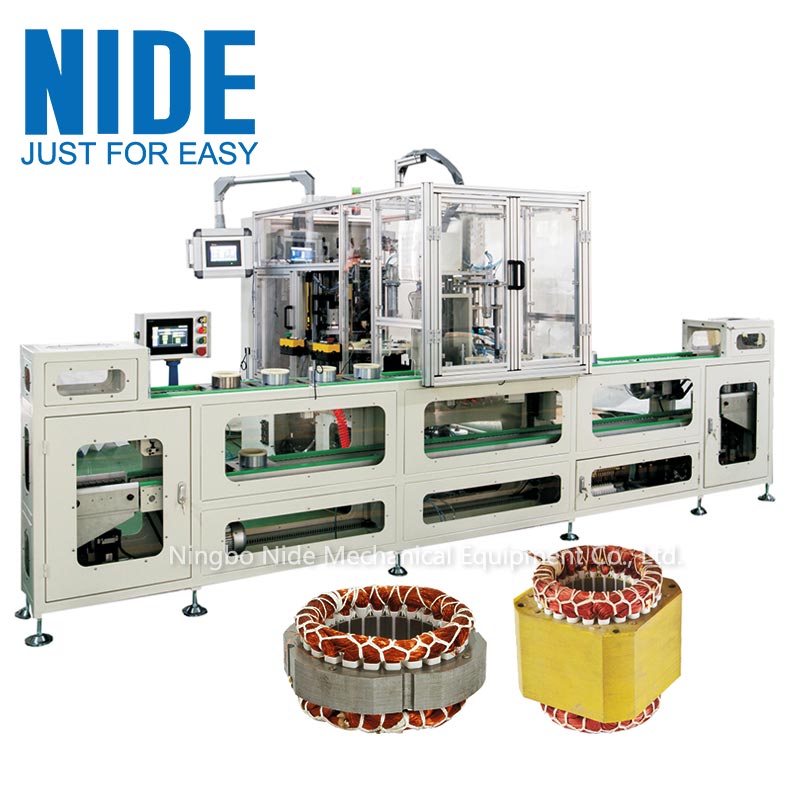

(4) Picture show
