Automatic motor coil winding machine for grinder stator

Automatic motor coil winding machine

The automatic motor stator winding machine is suitable for grinder , mixer ,air conditoner motor,washing machine motor,compressor motor,fan motor,pump motor etc.The stator coil winder has four winding heads with 8 coil winding working stations.Hight efficiency is the biggest advantage.

Automatic motor coil winding machine for grinder and mixer stator


(1) Machine main function and characteristic

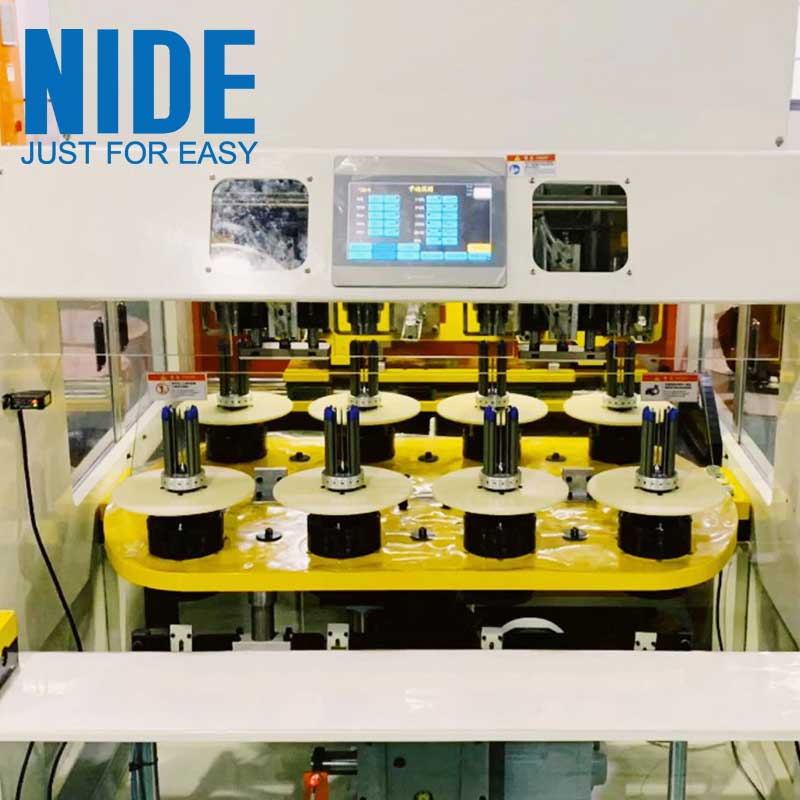

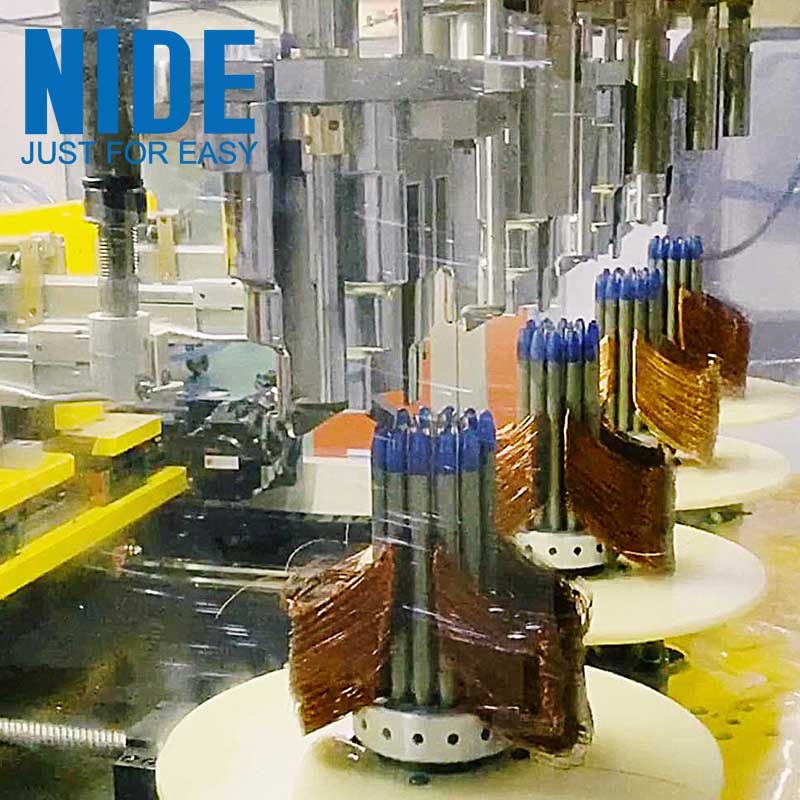

This automatic motor stator coil winding machine has four winding heads with 8 coil winding working stations.

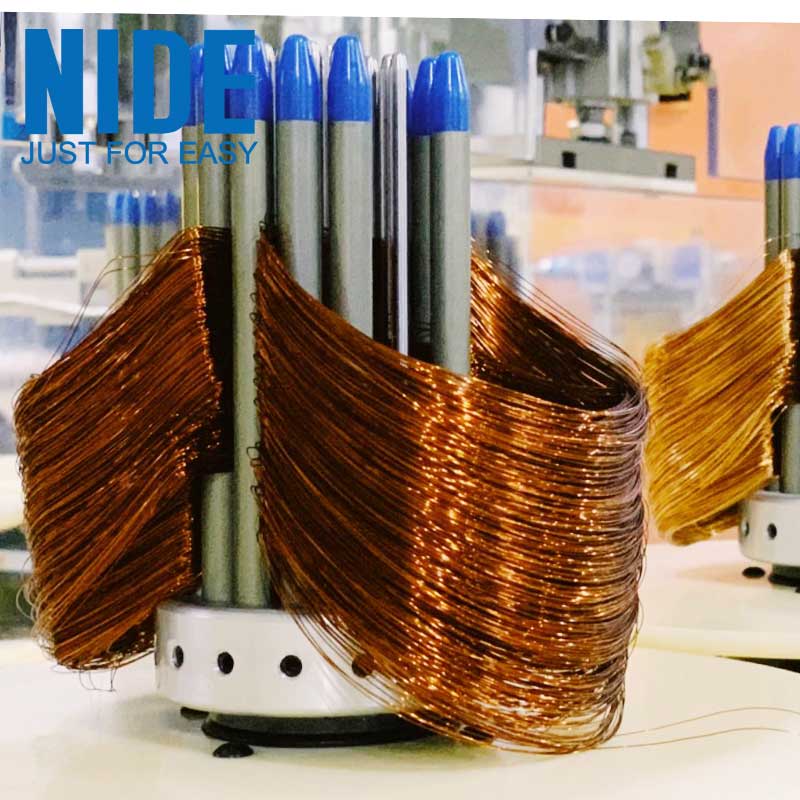

Hight efficiency is the biggest advantage.The coil winding machine can put coil into transfer tool automatically,

especially suitable for high fill factor,small slot opening stator;auto skip,auto cutting,

auto indexing could be completed at one time,parameter can be set in HMI,winding tension is adjustable,

has continuous/discontinuous winding method,can meet the 2poles,4poles,6poles coil winding.

Mature and advanced technology,reliable quality,easy operation and maintenece.


The series of machine including single coil winding head with 2 stations , two coil winding heads with 4 stations ,

four winding heads with 8 stations , and six winding heads with 12 stations.

Customers can communicate with us to negotiate technical solutions.


(2)Application

The automatic motor stator winding machine is suitable for grinder , mixer ,air conditoner motor,washing machine motor,

compressor motor,fan motor,pump motor etc.


(3)Technical paramenter

Wire diameter: 0.19~1.2mm

Flyer diameter: 220mm

Max stack height: 65mm

Max stator OD: 130mm

Max RPM: 2500RPM

Air source: ≥0.5MPa

Operation station: 8

Winding head: 4

Power supply: 380V 50/60HZ 15KW

Weight:about 4500KG

Dimension:(L)2400*(W)1900*(H)2250mm



(4)The automatic 8 stations motor stator coil winding machine working youtube video

https://youtu.be/GB2xykQSPjE
