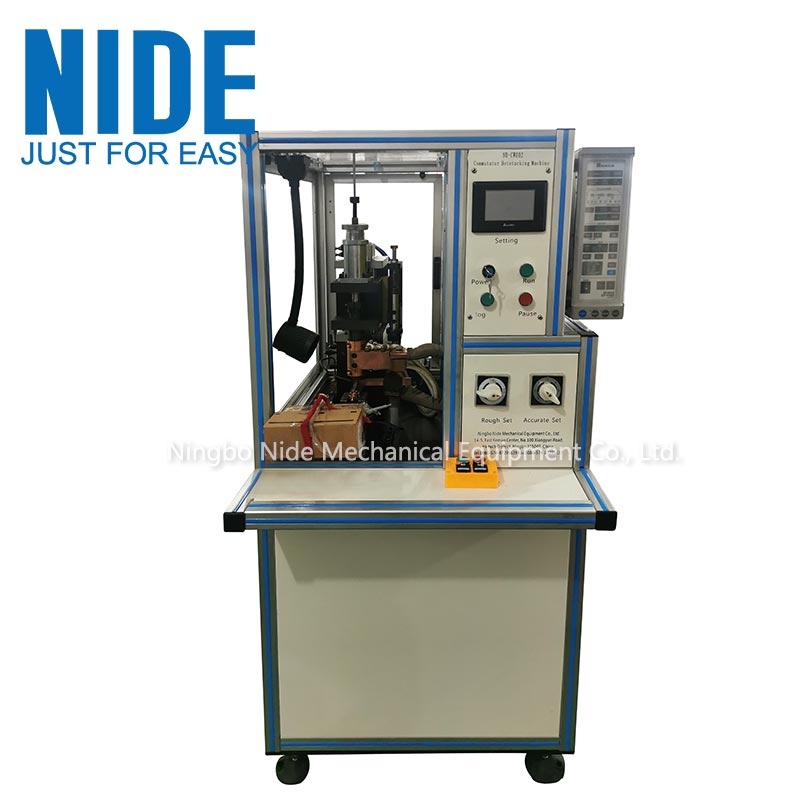

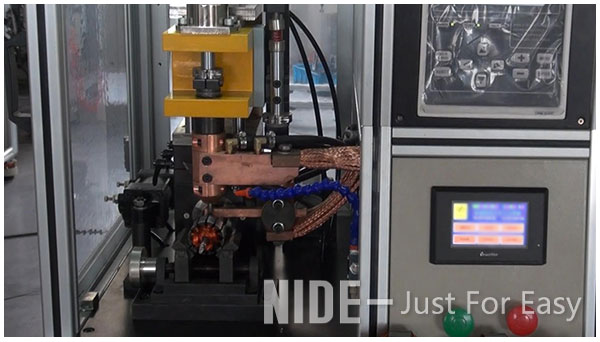

Automotive motor commutator spot welding machine

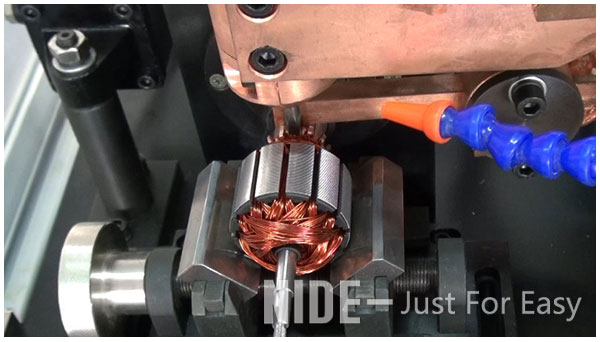

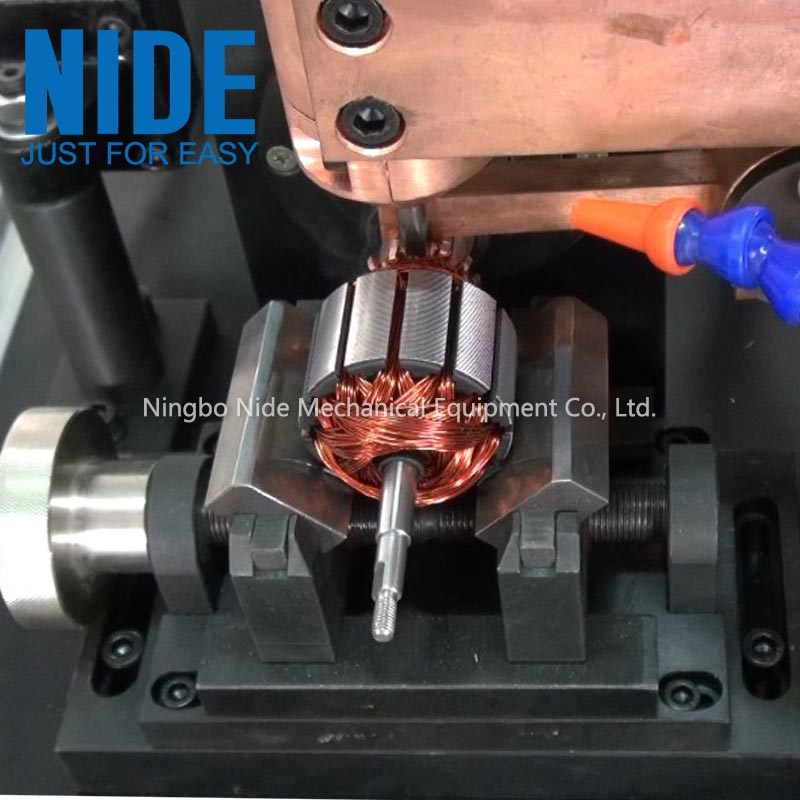

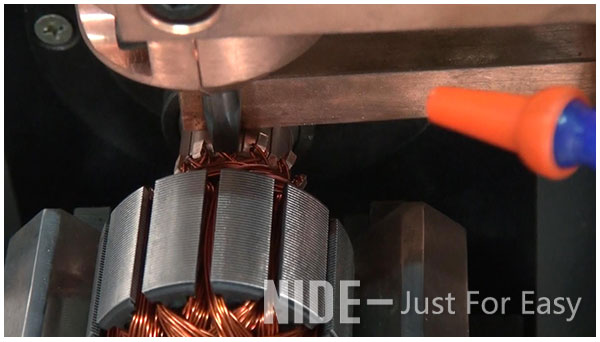

This motor armature commutator spot welding machine is suitable for weld the commutator one slot by one slot. After pre-set the rotor specification, machine will do the welding once the start button is pressed.
(1) Machine function and characteristic
The armature commutator spot welding machine is automatically indexing, automatically welding, user only need to load and unload the armature. Welding current can be adjusted according to different wire diameter. Easy operation and adjustment.
(2) Technical parameter:
| Product name: | Automotive motor armature commutator spot welding machine |
| Armature diameter： | 15~100mm |
| Commutator diameter； | 5~60mm |
| Wire diameter： | 0.07~1.8mm |
| Max power： | 25KVA |
| Power supply voltage： | 220V±10%50Hz |
| Air source pressure： | 0.5~0.7MP |
(3) Application:
The armature commutator spot welding machine is suitable for both hook and riser type commutator. It is suitable for home appliance, car ,power tool motor and universal motor armature.
