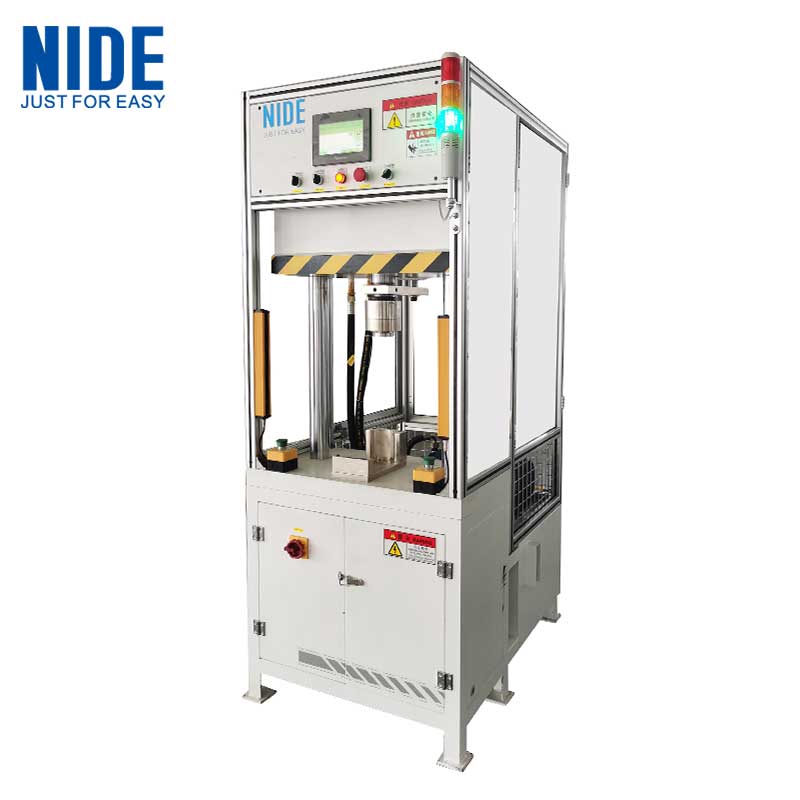

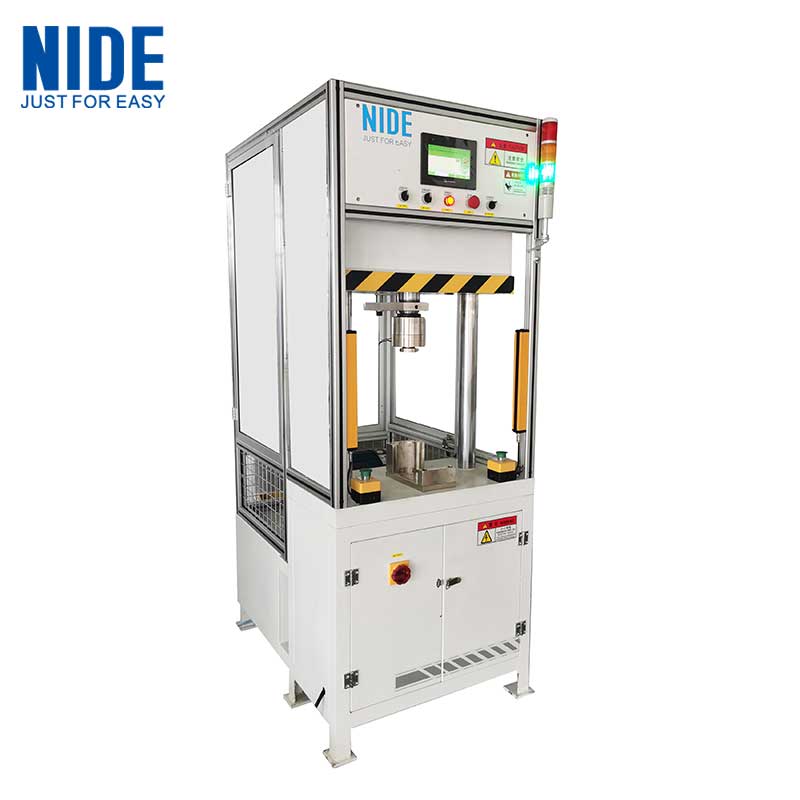

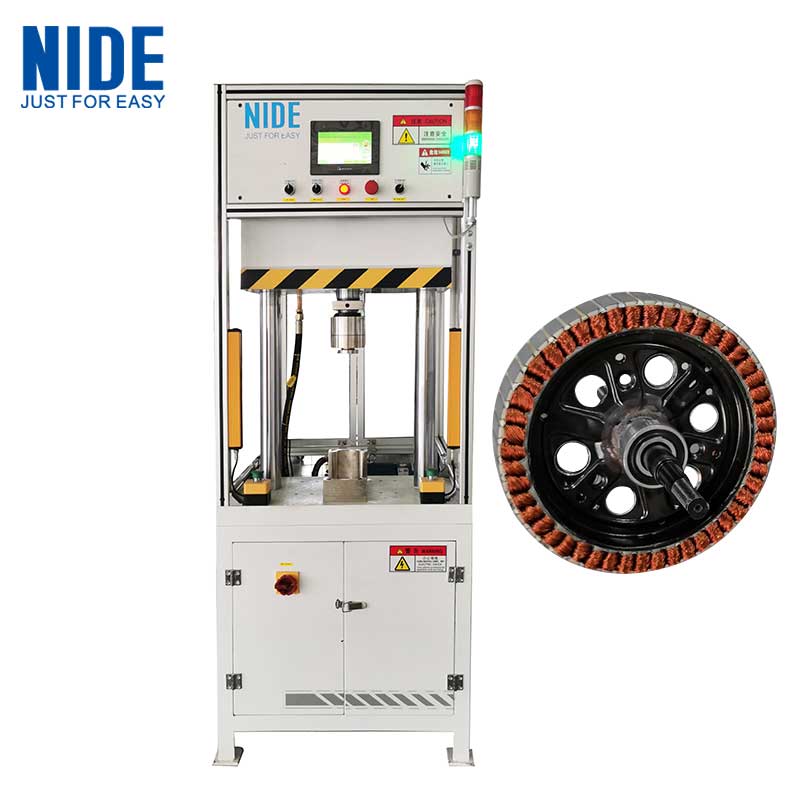

Automatic Wheel Hub Motor Stator Shaft Pressing Machine:
Application:
This motor shaft pressing machine is especially suitable for Wheel stator coil winding.
Features:
1. Shaft pressing is Servo Dirven
2. Max Stroke : 250 mm
3. Pressing Speed : 26 mm/sec

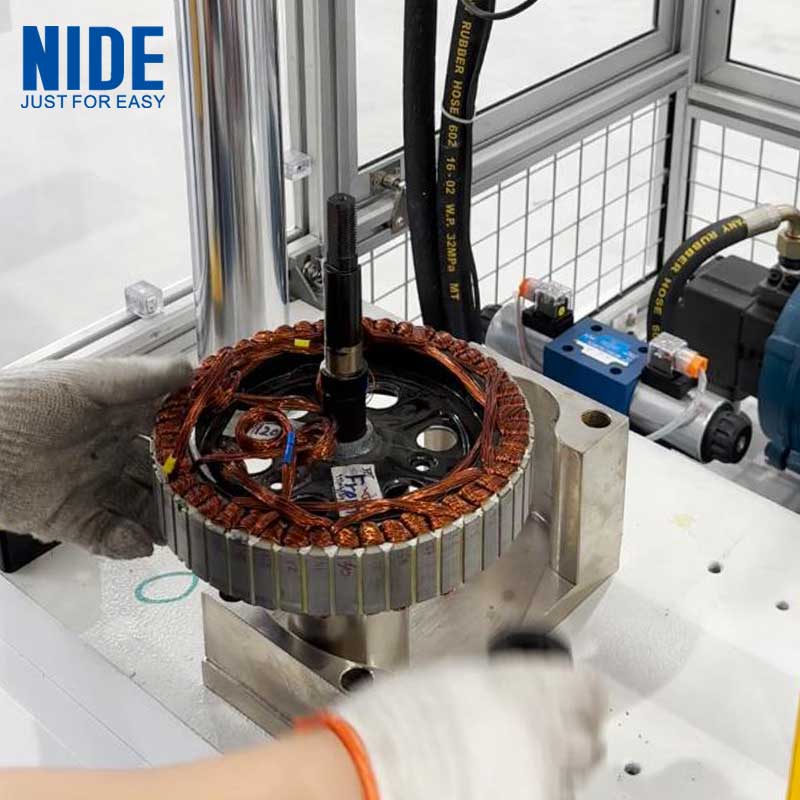

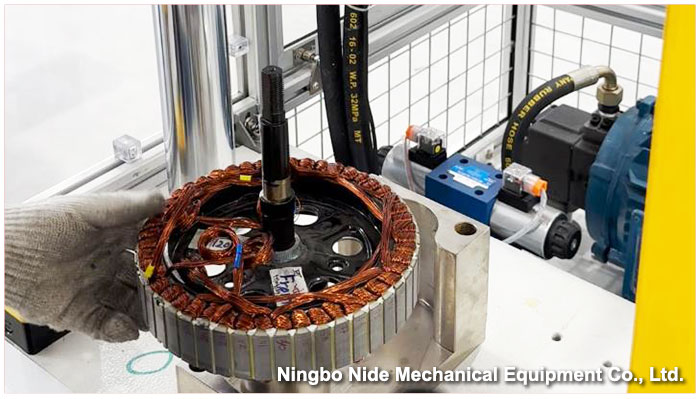

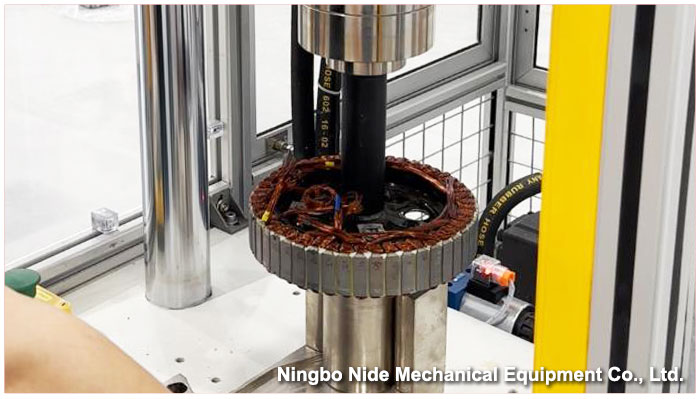

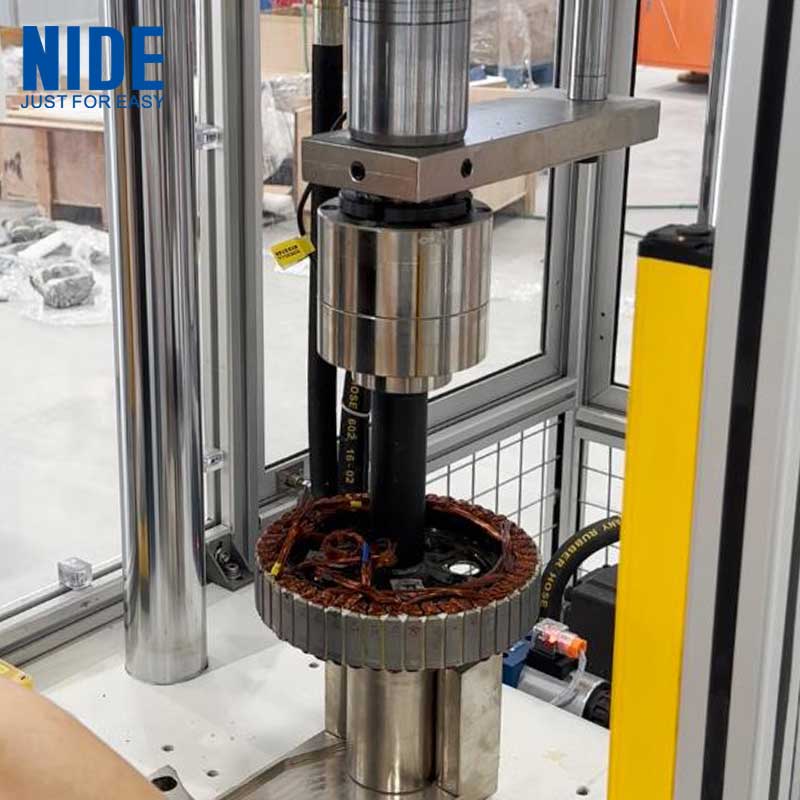

4. Manually feed shaft, manually feed rotor, auto pressing.
5. Parameter can be set in HMI.
6. Suitable for rivet stack only.
7. This machine adopts safety grating protection system. Operator need to stand
8. Machine adopts two hands simultaneously start button to ensure safety.
Technical parameter:
Power supply: three phase 380V
Power: 3.2KW
Air pressure: 0.4~0.7MPa
Machine dimension: 1700*2000**1800mm
Machine weight: about 700 kgs
