Fully automatic automobile generator alternator stator winding machine coil inserting machine
(1) Application
The motor winding machine is Suitable for auto alternator stator winding,
(2) Introduction and features
1.Automatic wire winding, automatic coil embedding and inserting.
2.Servo motor control wire arraying and coil winding, inserting coil into stator slot automatically,
3.PLC control, colorful touching screen,
4.High automation and efficiency.
5.Small size machine
(3) Technical Data
| Product name: | Alternator stator winding and coil inserting machine |
| Stator O.D: | ≤160mm |
| Stator I.D: | 75~120mm |
| Stack height: | ＜45mm |
| Slot opening size: | ≥2.2mm |
| Wire diameter: | 1.6mm maximum for single wire |
| Slot fill factor: | ＜70% |
| Machine dimension: | 800*620*1400mm |
| Voltage: | 2KW |
| Power supply: | AC200V, 50Hz |
(4) Picture show

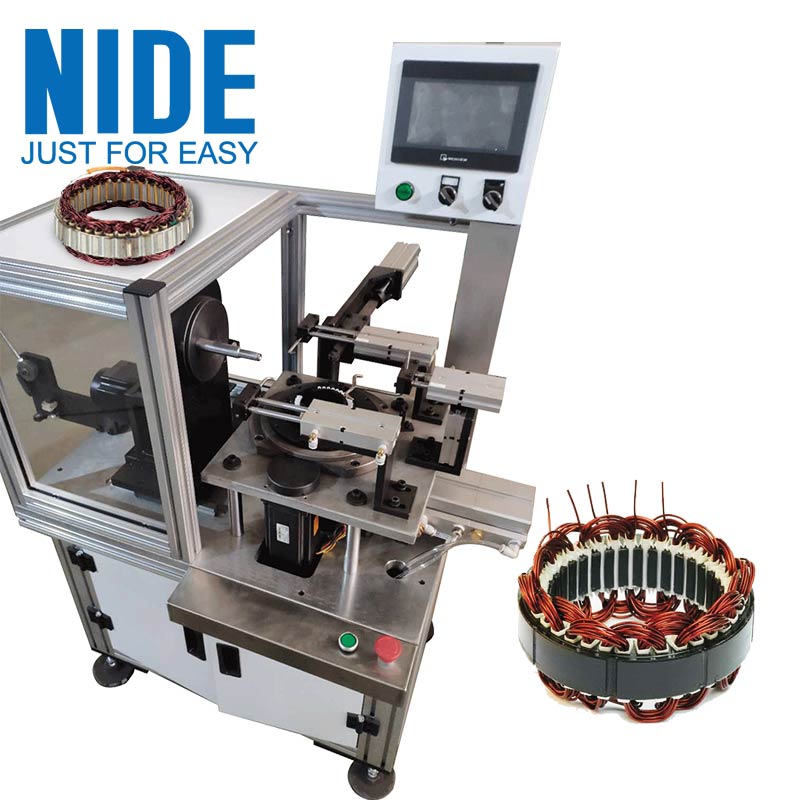

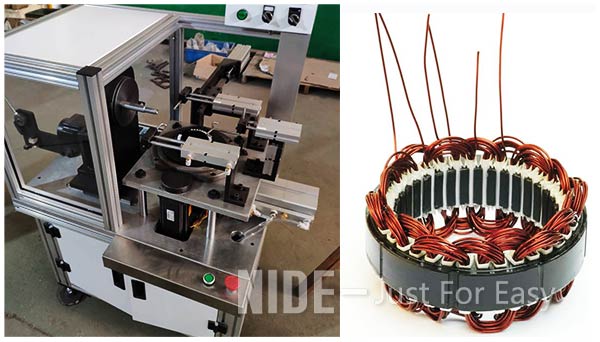

1.Alternator stator winding machine and stator

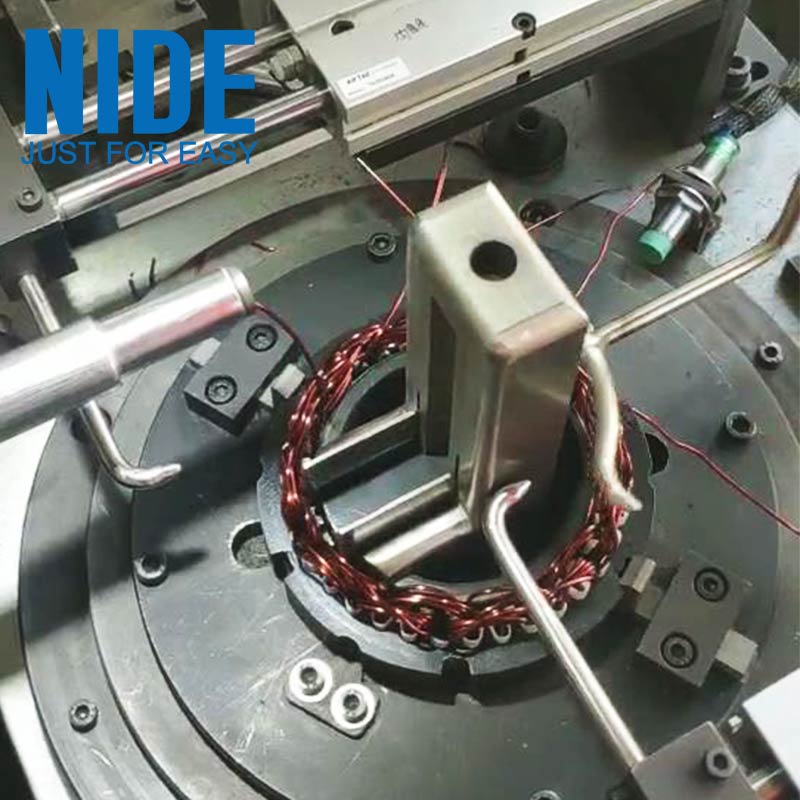

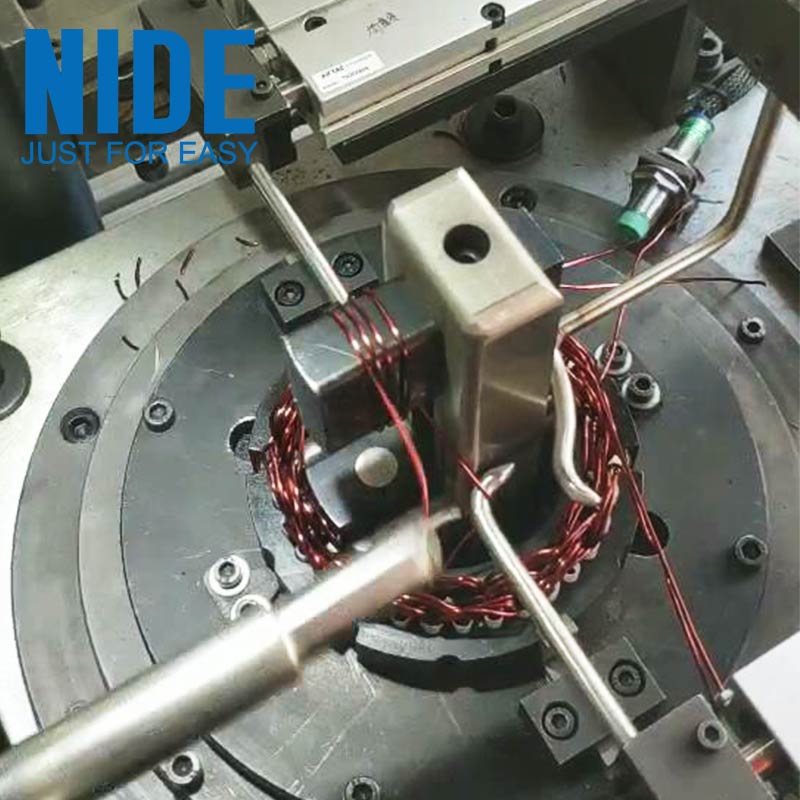

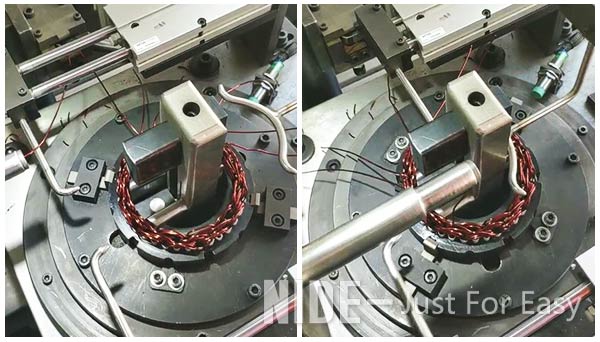

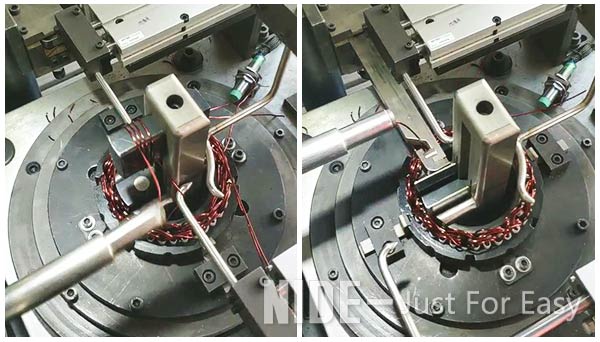

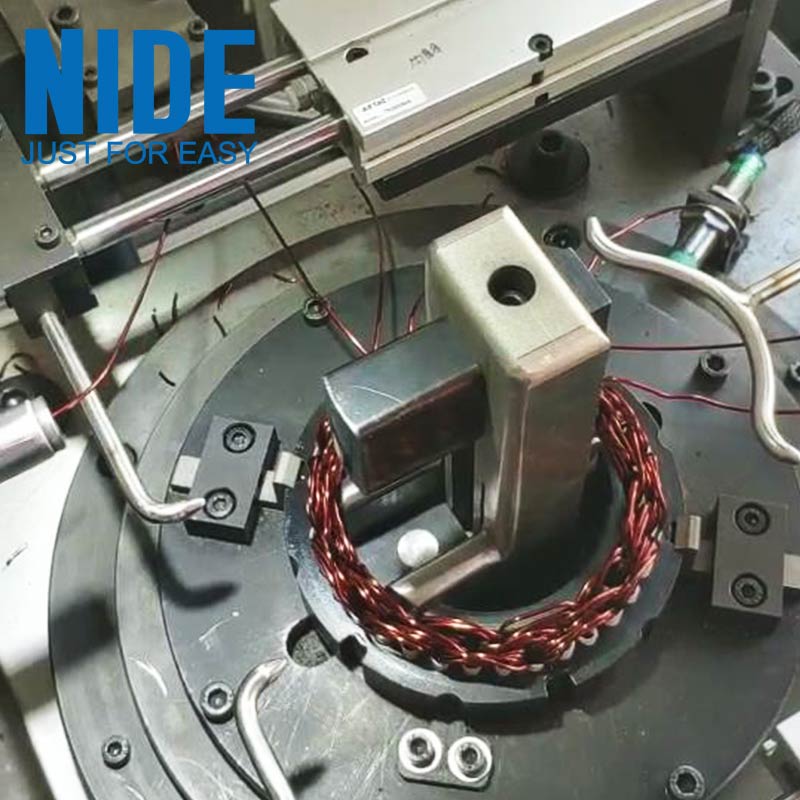

2.The stator winding and inserting process
(5) The alternator stator winding and coil insertion machine video
