This winding machine adopts single flywheel winding, double workstation, automatically wire clamping and manually feeding the armature rotor .

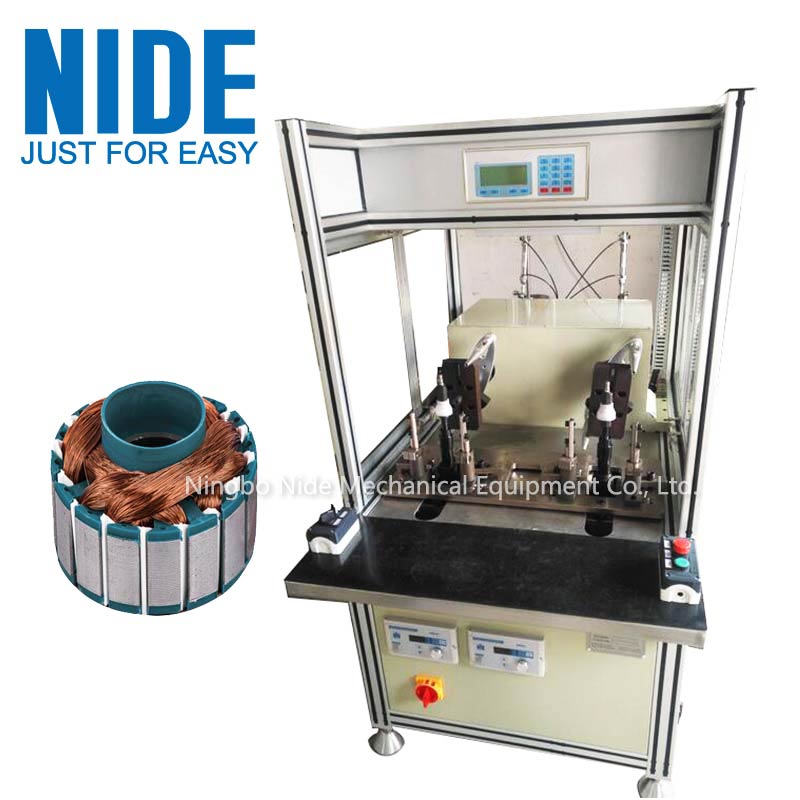

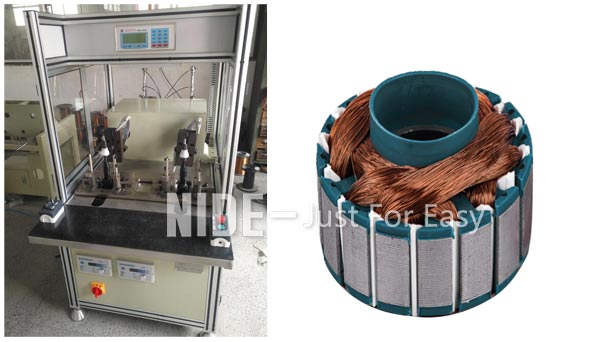

Single flyer BLDC winding machine outer Rotor coil winding machine

Introduction:

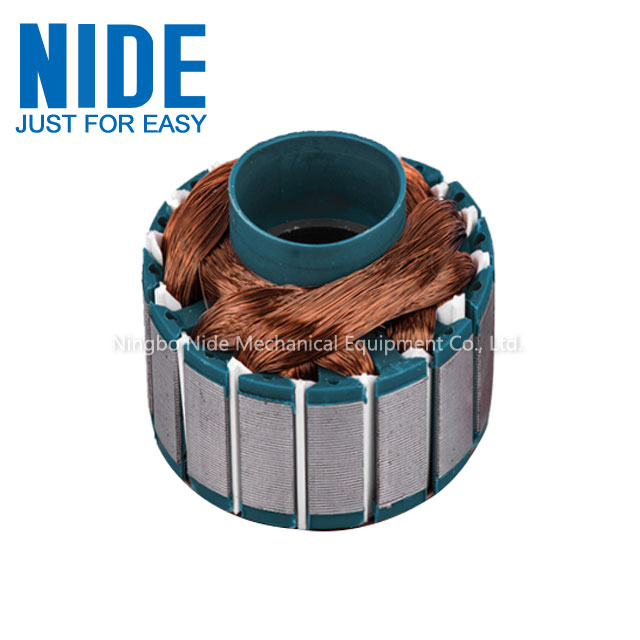

The BLDC winding machine is suitable for bldc outer rotor coil windings.

The operator can set the steering number, line clamping indexing angle, rotor direction and other parameters on the HMI of the BLDC winding machine.

This winding machine adopts single flywheel winding, double workstation, automatically wire clamping and manually feeding the armature rotor .

The BLDC motor outer rotor winding machine has a self-diagnostic function.

Production name: BLDC outer rotor coil winding machine

Rated speed: 700rpm

Max. speed : 2000rpm(no-load)

Air pressure: 0.4MPa~0.7MPa

Power: 3KW

Weight: about 350KG

Voltage: phase AC380V

Dimension: 870X560X1600(LXWXH)
