Big Wire Electric Motor Stator Coil Winding Machine

Big Power Motor Coil Winding Machine

This big-power electric motor stator coil winding machine is equipped with a lifting door, which improves the safety of the operator.This product has automatic adjustment function, improved offline device, easier to offline, and will not affect the coil.

Automatic Horizontal Big Wire Electric Motor Stator Coil Winding Machine


This high-power coil winding machine is equipped with a lifting door, which improves the safety of the operator.This product has automatic adjustment function, improved offline device, easier to offline, and will not affect the coil.


Big stator coil winding machine function and characteristic:

The automatic Big power motor Stator Coil Winding Machine adopts special purpose controller to achieve the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc.

The Big Stator Coil Winding Machine could produce different dimension coils which are for same series size stator by adjusting the tooling, and tension is adjustable.


Main Technical data:

Product name:Big Electric Motor Stator Coil Winding Machine
Wire diameter:0.3~1.6mm
Winding head:1
Swing stroke:450mm
Applicative frame size:280, 315, 355, 400, 455
Max RPM:60RPM
Max wire number:45 wires
Power:38V- 50/60HZ, 5.5Kw
Air pressure:0.4mpa
Dimension:2300mm X2200mm X2000mm
Weight:1000kg


Big stator coil winding machine Application

This automatic stator coil winding machine is suitable for winding the coil for big power motor.

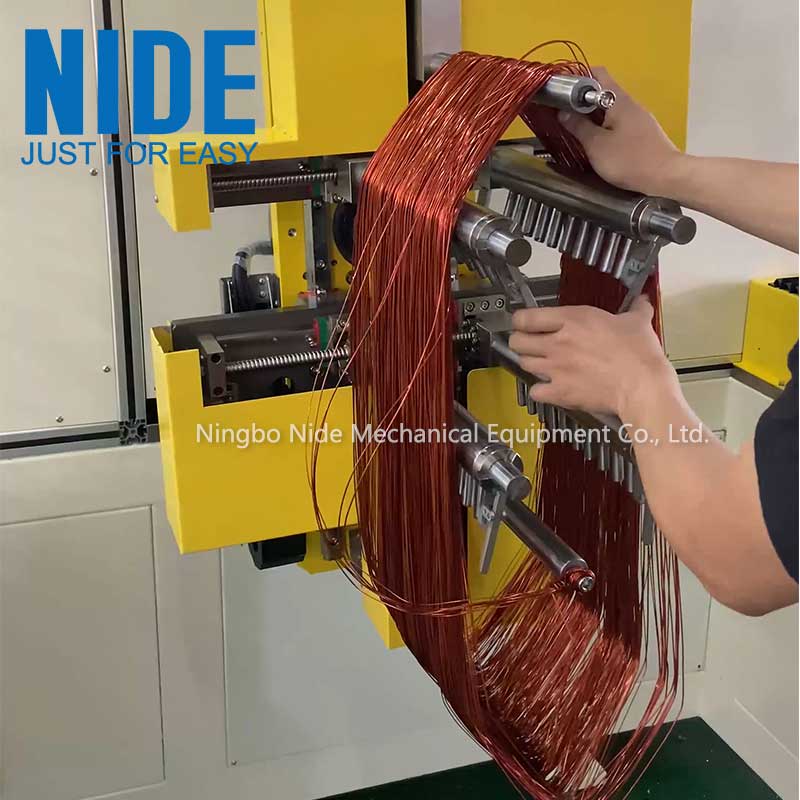

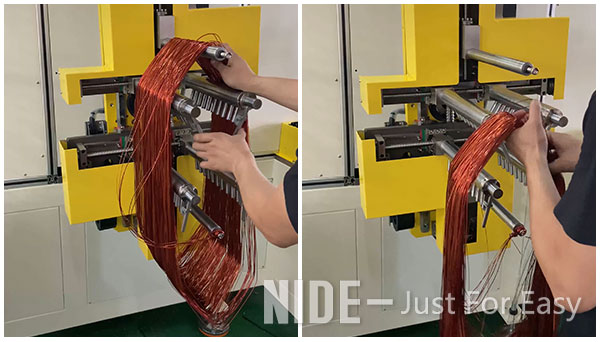

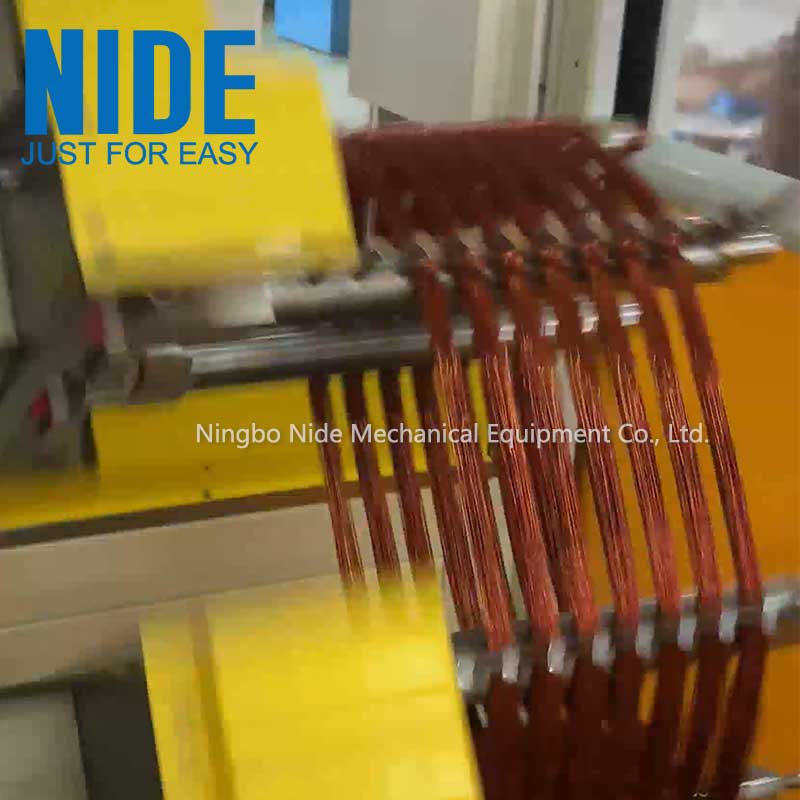

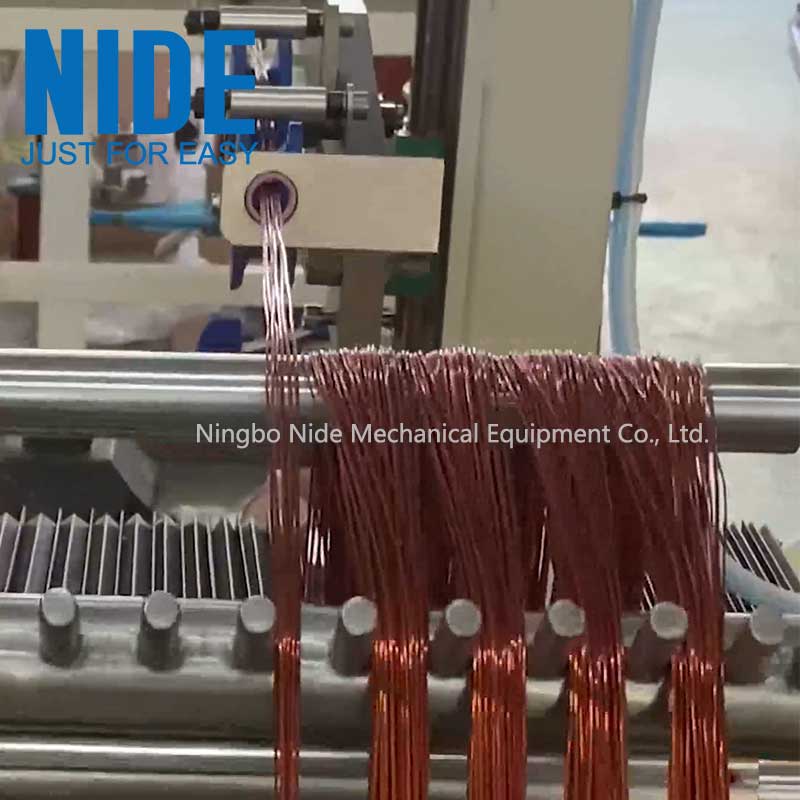

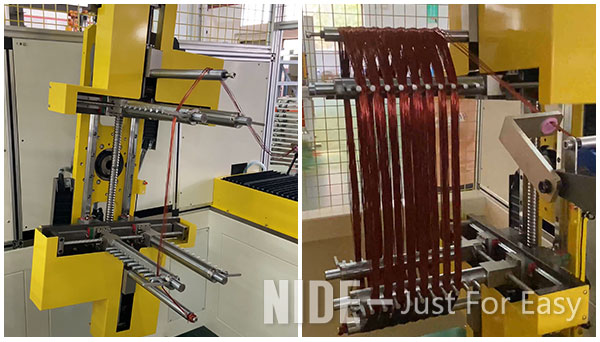

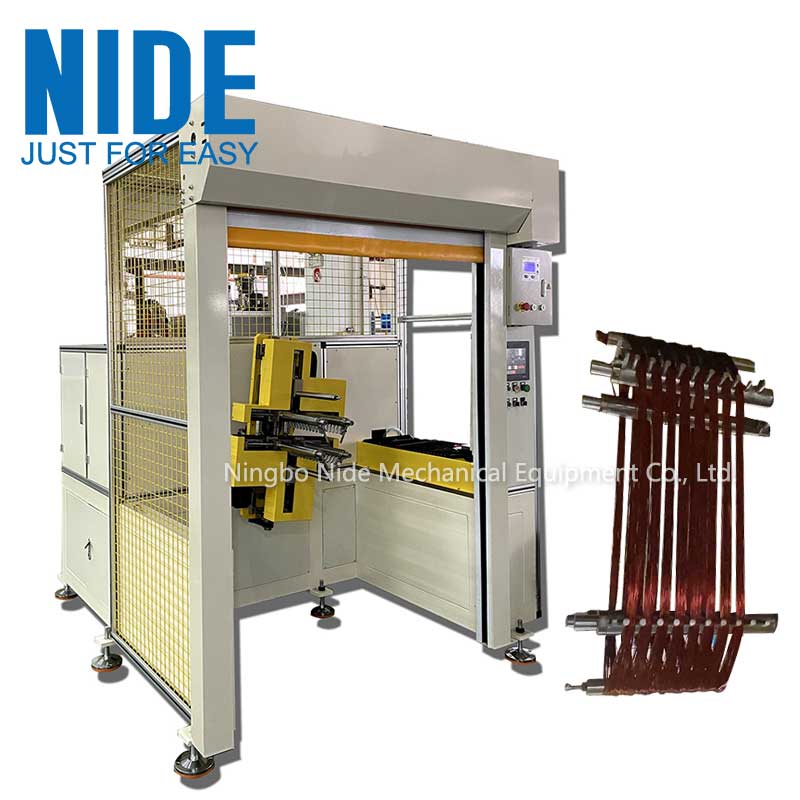

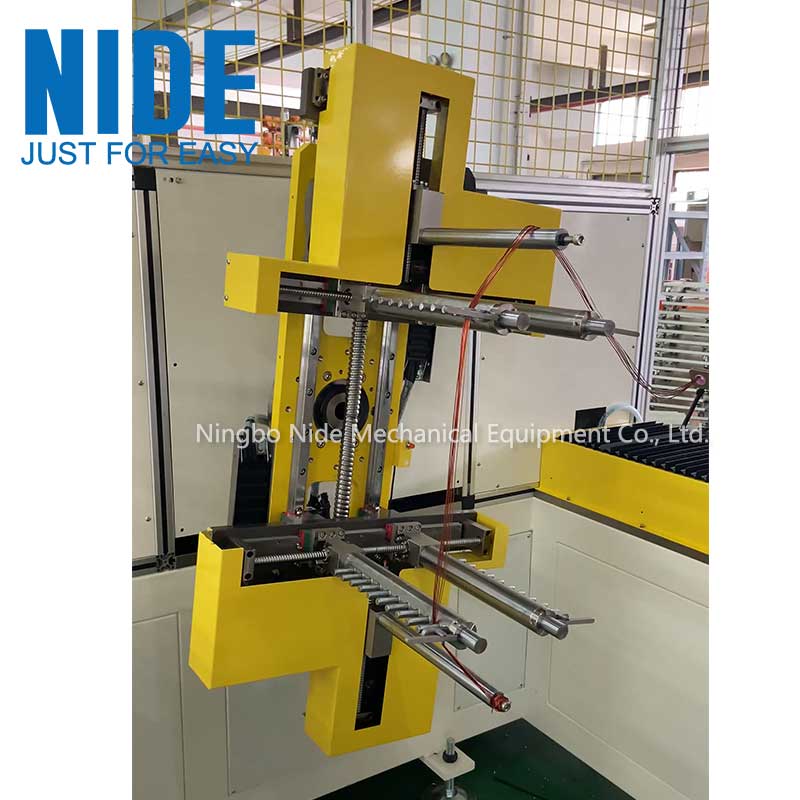

Big stator coil winding machine picture show
