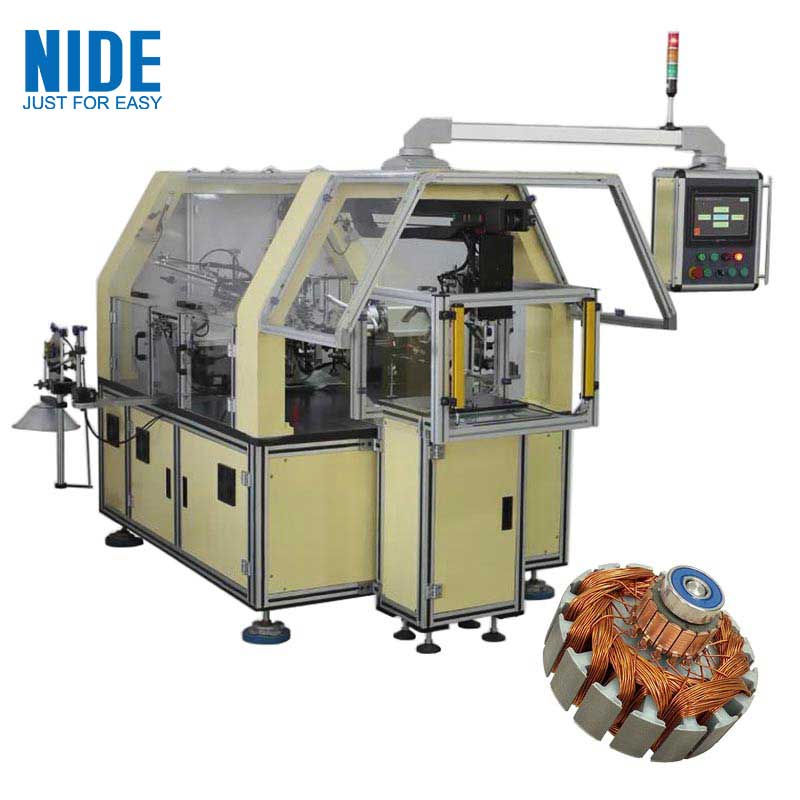

Automatic Auto Motor Armature Copper Wire Winding Machine
This armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding, indexing and wire cutting, only load and unload armature from material loader. Equipped with touch screen and PLC, winding parameter could be set and modified on the screen. We also have armature winding machine equipped with conveyor, operator only need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. Below parameter is our standard machine, we could produce machine according to customer's armature accordingly.
(1) Technical Parameter:
Item | Specification |
Wire diameter | Magnetic hysteresis method:0.16~0.55mm |
Electric control method:0.30~0.85mm | |
Armature O.D range | 20~60mm |
Stack length | 20~60mm |
Shaft diameter | 3~17mm |
Shaft length | Less than 300mm |
Armature slot | Even slot |
Turn number | 0~9999 |
Commutator diameter | 12~40mm |
Winding speed | 0~3000 rpm |
Winding motor power | 1.5KW * 2 |
Angle detecting speed | 0~3000 rpm |
Angle detecting motor power | 0.75KW *1 |
Air supply pressure | 4~6 Kg/cm2 |
The machine total power | 4.0 KW |
Voltage | Three phase AC380V50/60Hz |
Weight | 1180Kg |
Dimension | 2000(length)X1300(width)X1800(height)mm |
(2) Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.(3) The operation steps of this machine

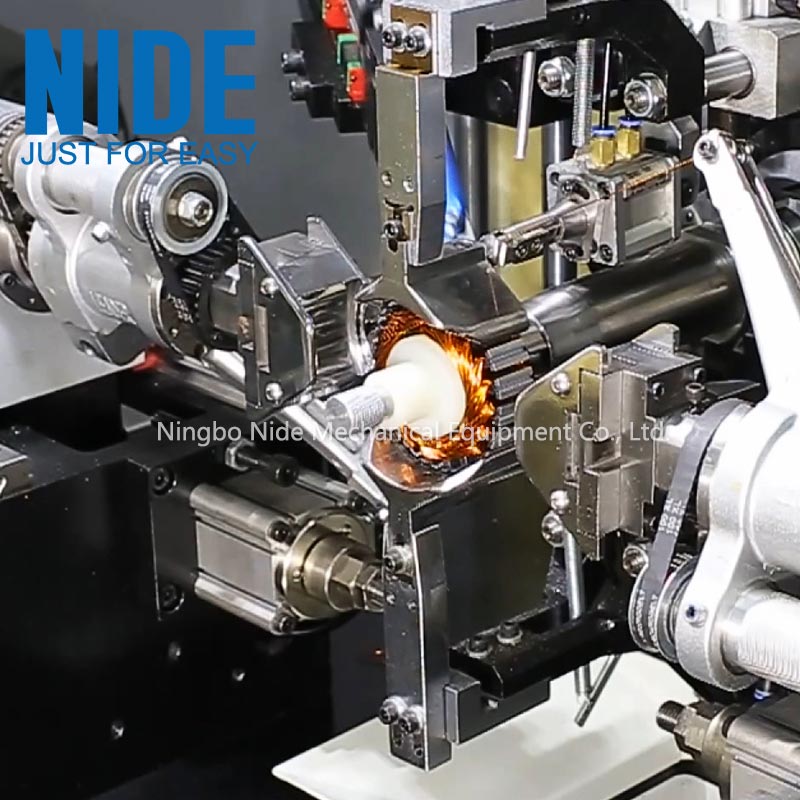

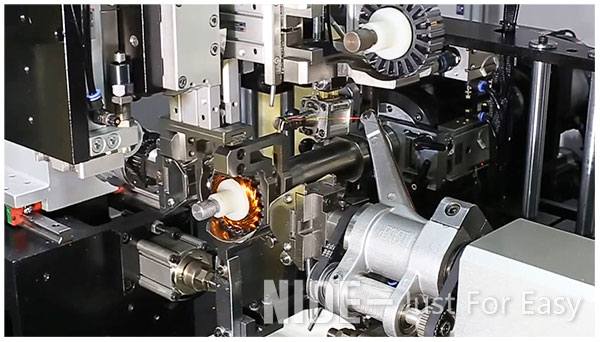

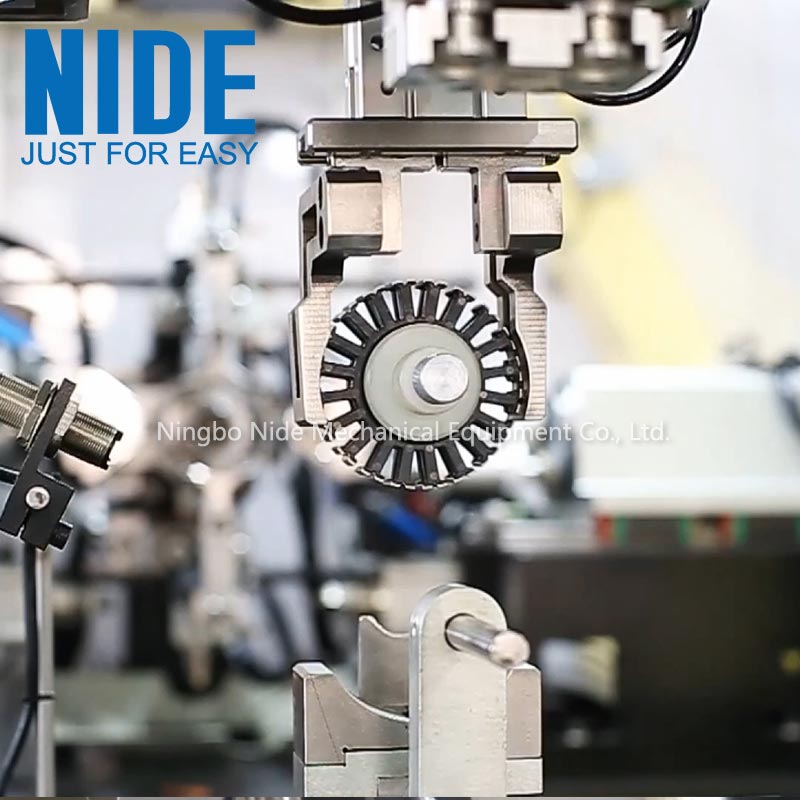

Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.
Automatic Armature Copper Wire Winding Machine video： https://youtu.be/ADADI3NongQ
