Fully Automatic 12-slot BLDC Motor Stator Needle Winding Machine With 4 Stations
This BLDC motor stator winding machine has 4 needle winding stations , suitable for 12 slots BLDC brushless motors and inverter motors in the field of household appliances, such as inverter washing machines, inverter refrigerators, inverter vacuum cleaners, inverter air conditioners,inverter kitchen range hoods, etc. is High efficiency and Low cost are its characteristics.
(1)Introduction：
1.The motor stator winding machine adopts 4 stations design, it can wind four stators at the same time.
2.Equipped with fully automatic flow conveyor, adopts an independent control system. It can automatic lifting, automatic position, and automatic stopping the stators.
3.High efficiency and Low cost.
4.All operating parameters can be set on the touch screen: the number of turns, the number of twist angles, and the steering are all programmable.
5.The stator coil winder has a self-diagnostic function.
(2)Specification:
| Product name: | Full Automatic 12 Slot BLDC Stator Coil Winding Machine |
| Wire Dia.： | f0.13mm～f1.1mm |
| Stator ID： | Φ36mm～Φ60mm |
| Stator OD： | Φ70mm～Φ132mm |
| Stator stack length： | 10mm～60mm |
| Winding speed： | 50-700 r/min |
| Winding method： | needle winding |
| Winding station: | 4 |
| Pole no： | 2、4、6、8 |
| Air pressure： | 0.5MPa～0.7 MPa |
| Voltage： | 380V/50HZ ,Three-phase four-wire |
| Power: | 26KW |
| Dimension： | 2200mm×1260mm×2020mm |
| Weight: | 1500kg |

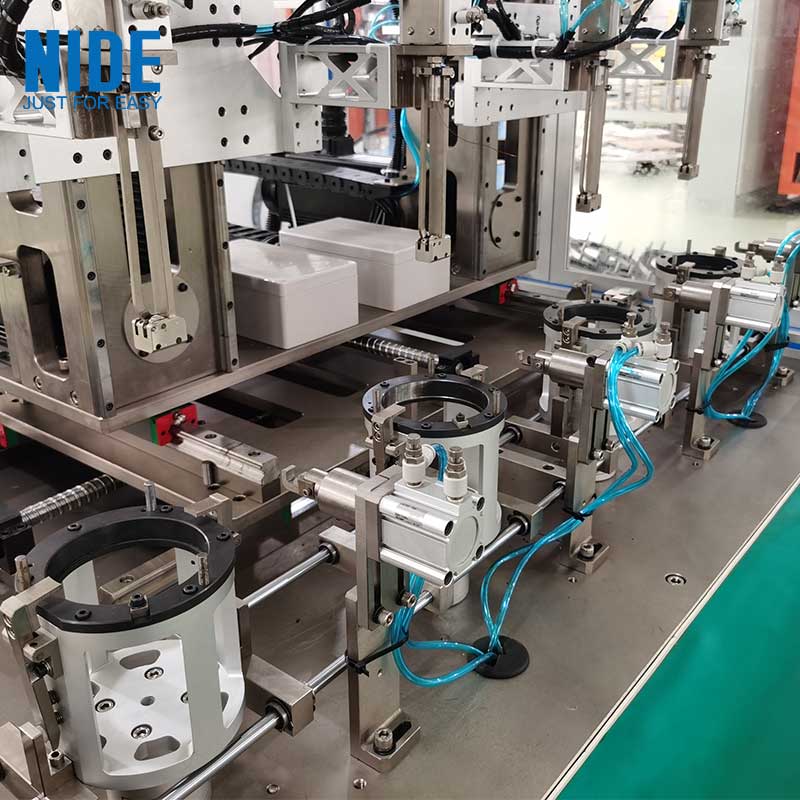

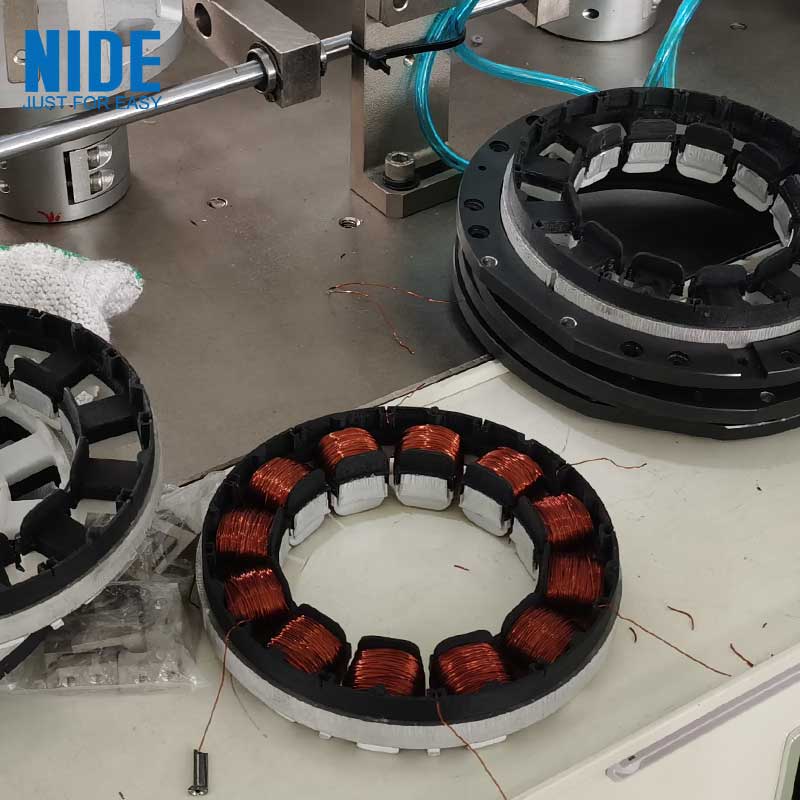

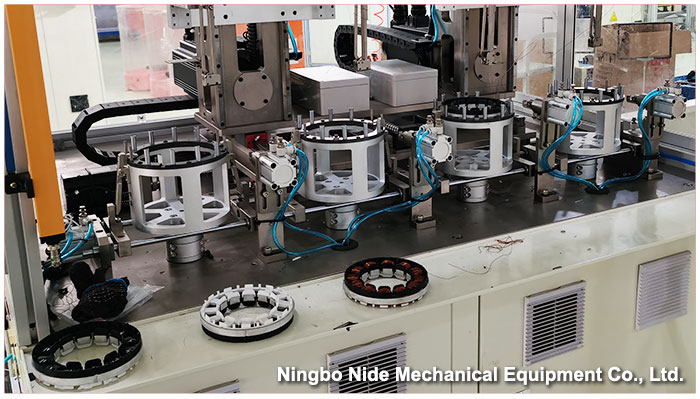

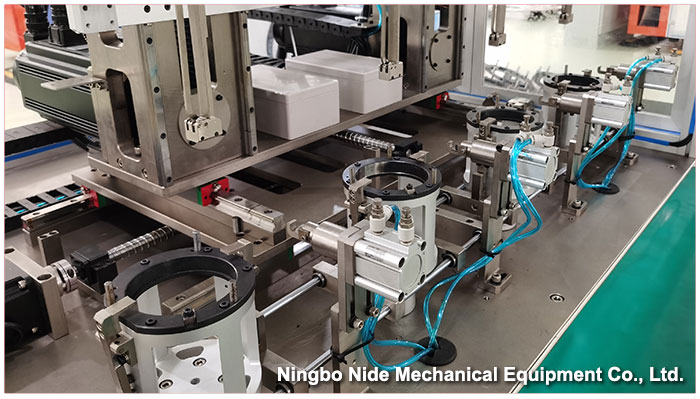

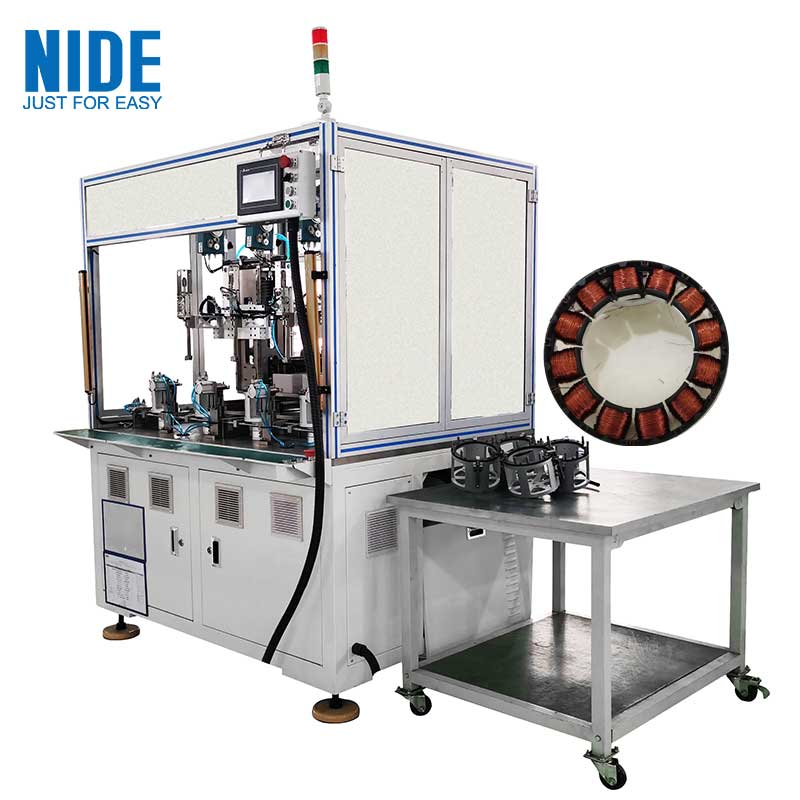

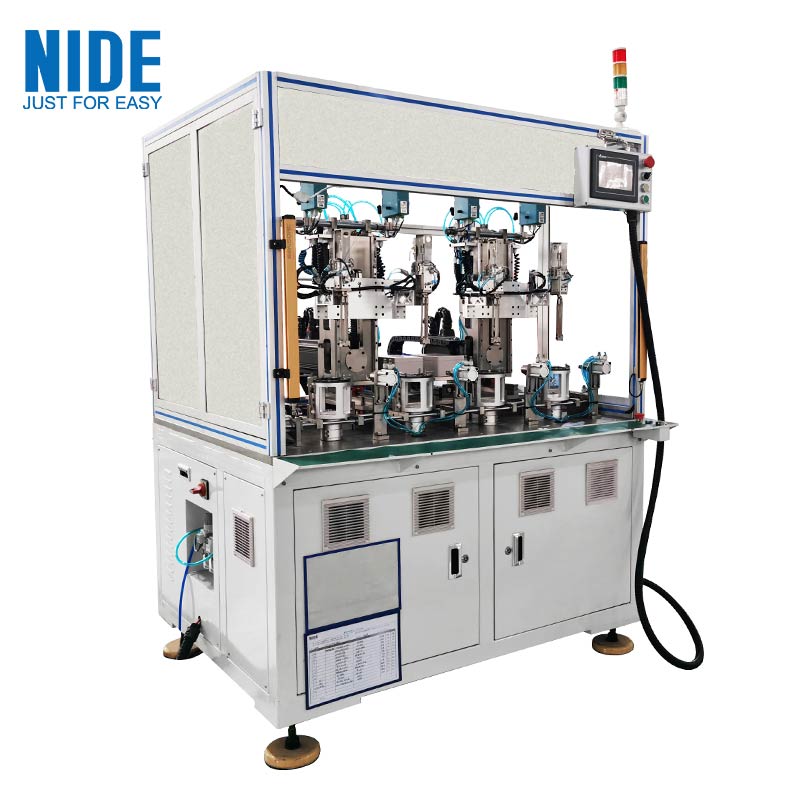

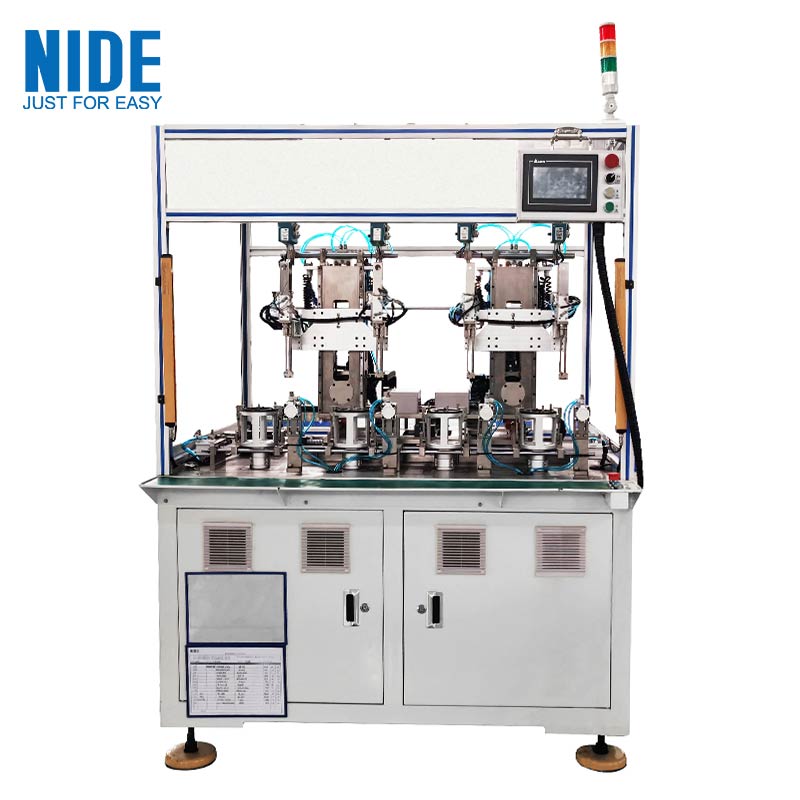

(3)Picture show
