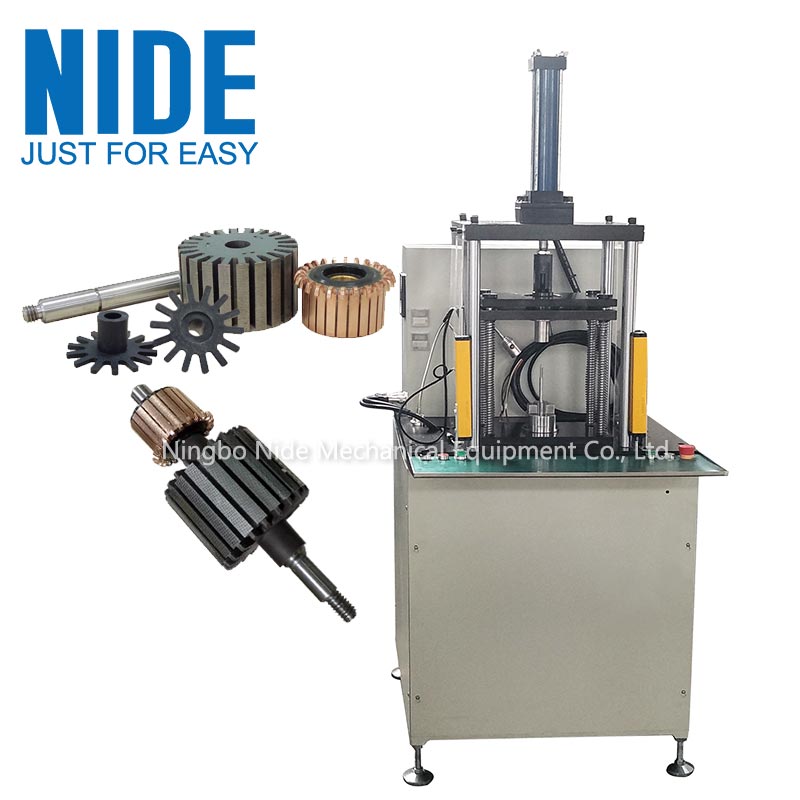

This pressing machine can insert shaft, end cover, commutator in one time. It greatly saves the time and improve the working efficiency.
(1) Application
This armature shaft commutator pressing machine is suitable for home appliance, car and power tooling motor armature.
(2) Technical data
| Product name: | Electric motor armature rotor shaf end cover commutator pressing and punching machine |
| Armature OD: | 25-65mm |
| Stack height: | 20-70mm |
| Power consumption: | 1KW |
| Air pressure: | 0.4-0.7Mpa |
| Weight: | 400KG |
| Machine dimension: | 900X800X1600mm |
(3) Main feature
1.Press shaft, end cover and commutator in one time
2.Entire fixture structure, fixture change over fast
3.High efficiency, less labr cost
(4) Operation step
Put armature core, shaft, end cover and commutator to the related position
Press start button
Machine will automatically press all these things into armature core

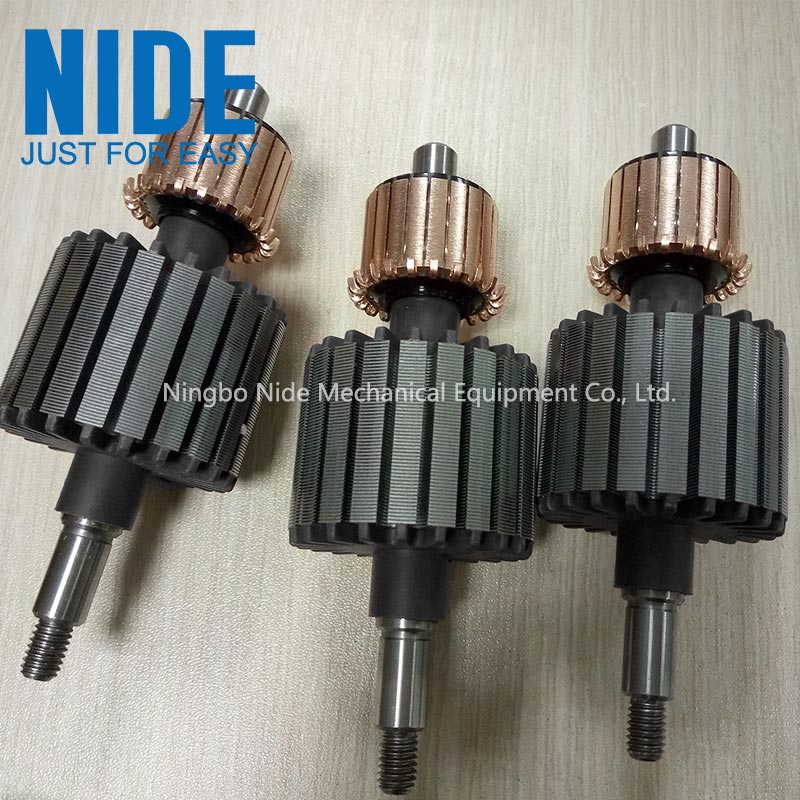

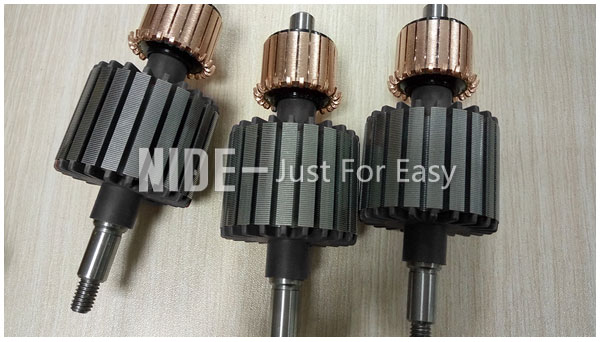

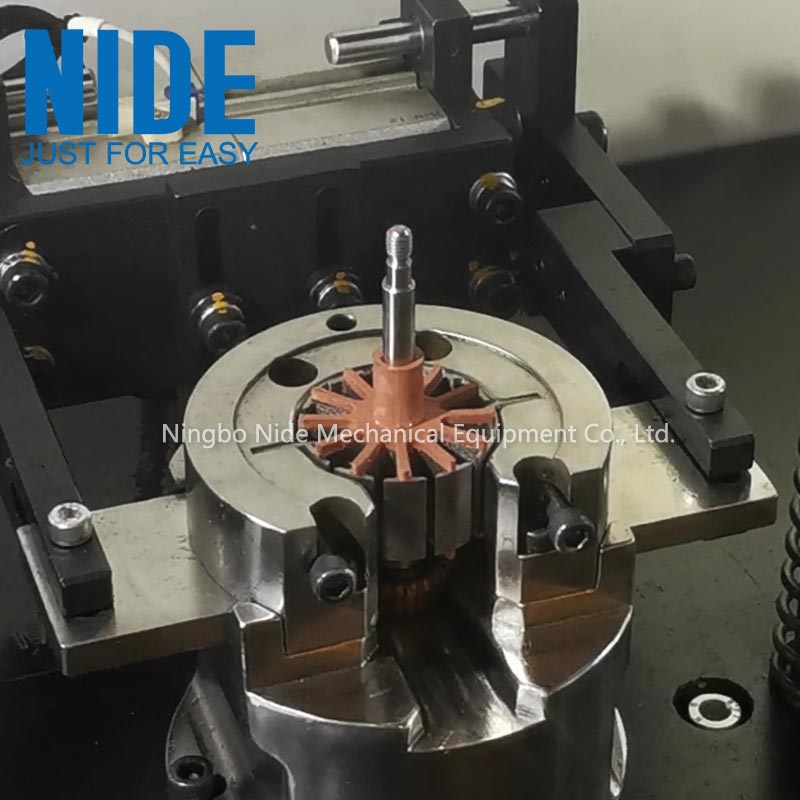

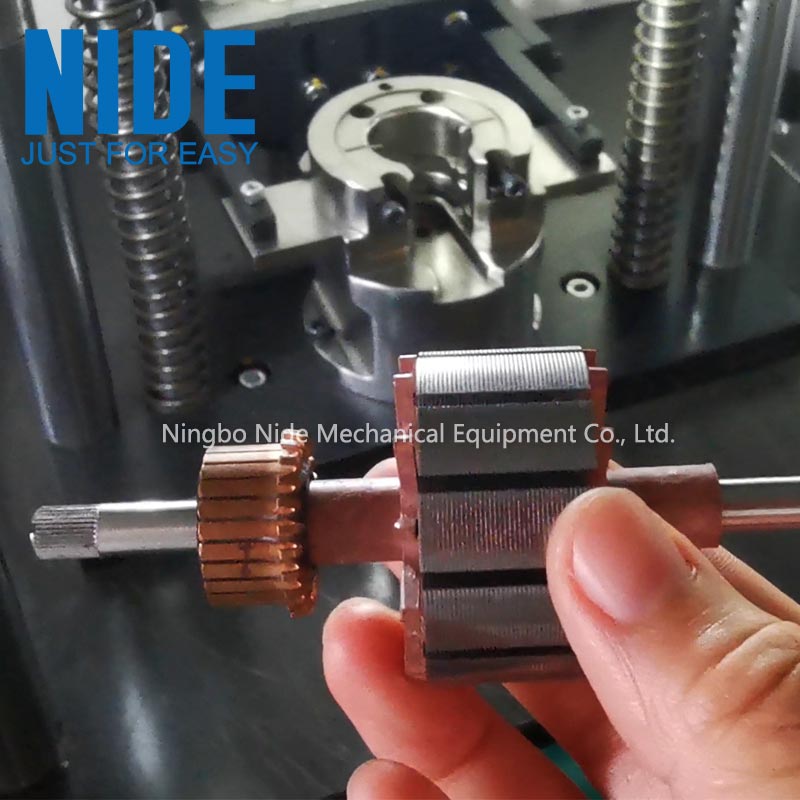

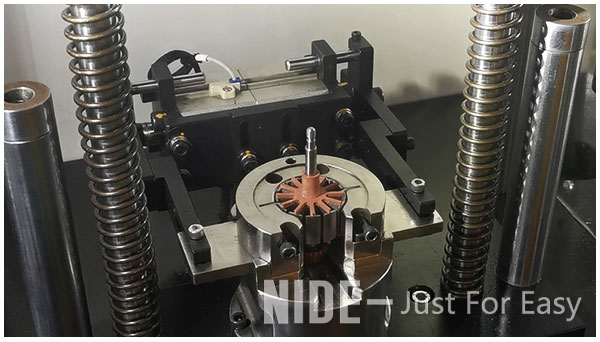

(5)Picture show
The armature making machine video:
