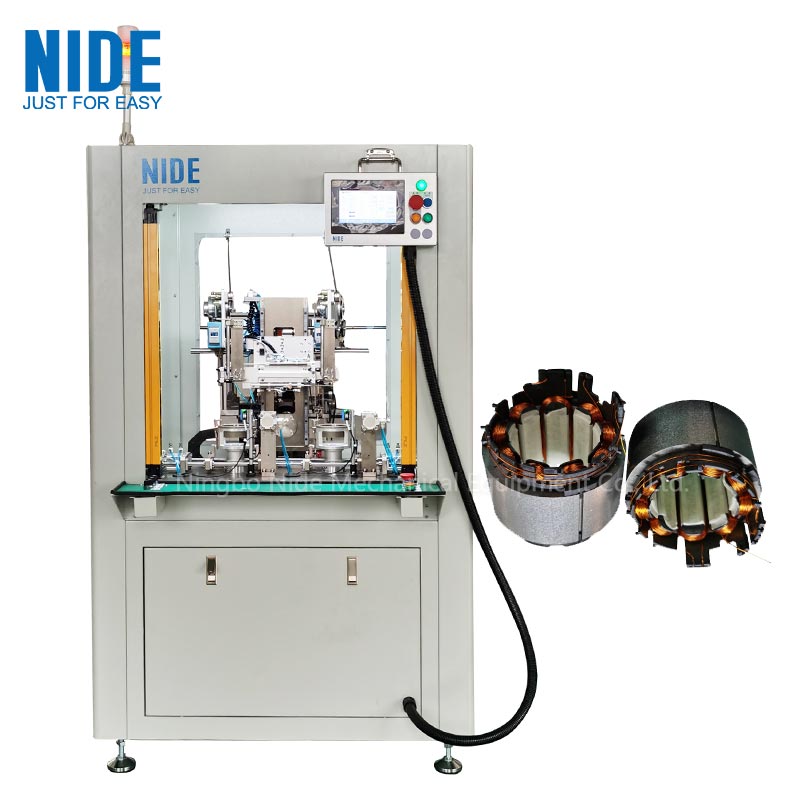

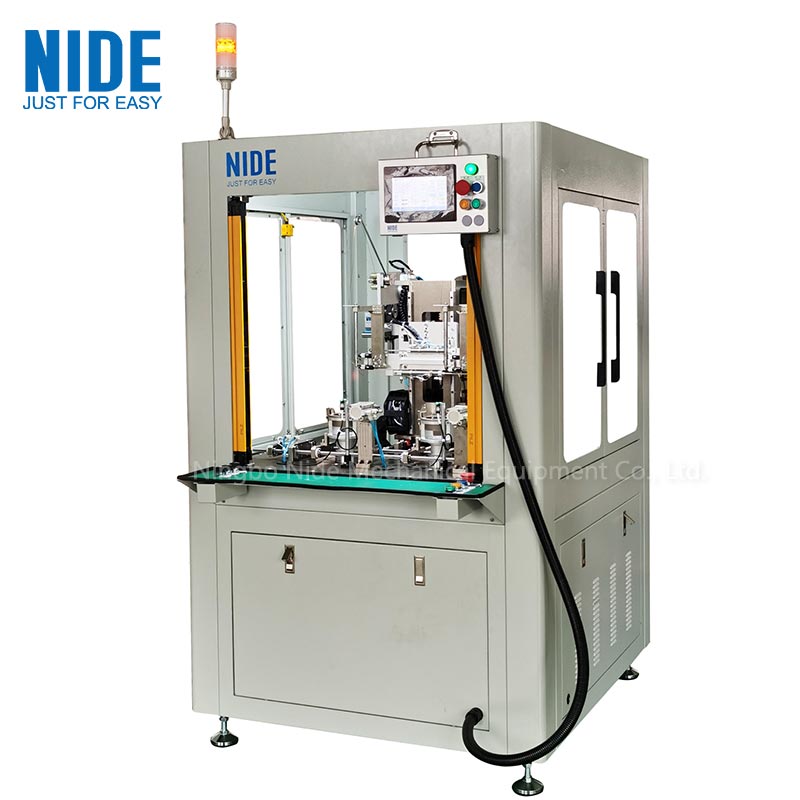

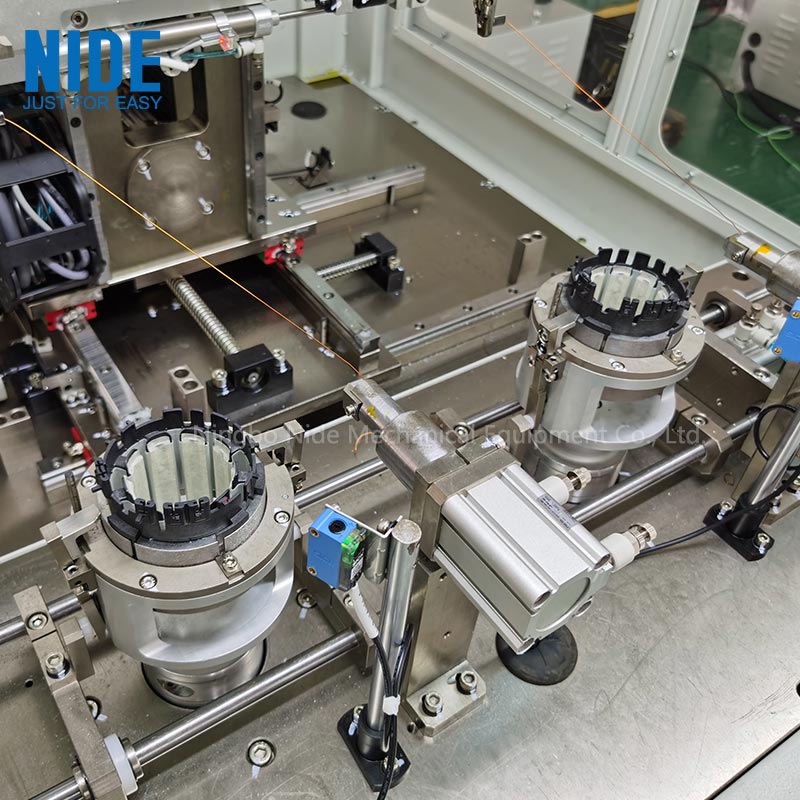

Frameless Brushless DC Motor Needle Winding Machine

Frameless Brushless DC Motor Winding Machine

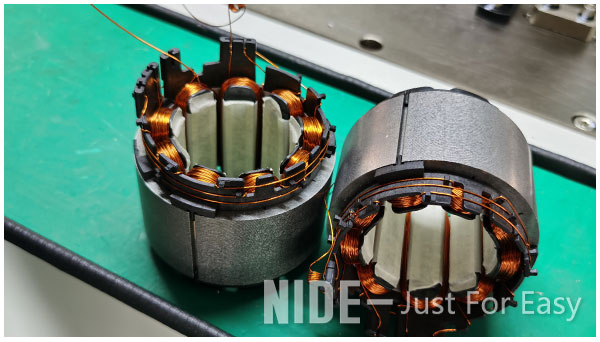

The stator needle winding machine is used for Frameless Brushless DC Motor Stator manufacturing.

Automatic Frameless Brushless DC Motor Needle Winding Machine


Frameless BLDC Motor Winding Machine Introduction:

The motor winding machine is used for Frameless Brushless DC Motor Stator manufacturing. Frameless brushless DC motors are unique and versatile in a wide range of applications. Lightweight, frameless motors delivering low inertia, high efficiency and high torque density in compact sizes.

Frameless BLDC motors fit more easily into small compact machines that require precision and higher torque density.


Applications in the fields

The Frameless Brushless DC Motor is suitable for robotics, automation, medical, industrial, semiconductors and more.


Frameless Brushless DC Motor Winding Machine Technical parameter

Product name:Frameless Brushless DC Motor Needle Winding Machine
Stator ID:φ25—φ60mm  (Other specifications can be specially designed)
Stator OD:φ60—φ200 mm (Other specifications can be specially designed)
Stack length:10-80mm(Standard stroke)
Wire diameter:φ0.13—φ1.2mm(Other specifications can be specially designed)
Dimension:1200*1300*1700mm
Spindle speeds:0-260 RPM adjustable
Air pressure:0.5-1MPa
Power:10KW
Voltage:380V/50HZ Three phase four wires
Weight:500KG


Frameless Brushless DC Motor Winding Machine Feature

Two-staions Needle Coil Winding Technology Design

For Frameless multi-pole stator winding, manual loading and unloading, automatic clamping, winding and shearing;

PLC control, fault display

Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.

Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;

Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.

Quick change-over of tooling;(20 minutes with proficiency)

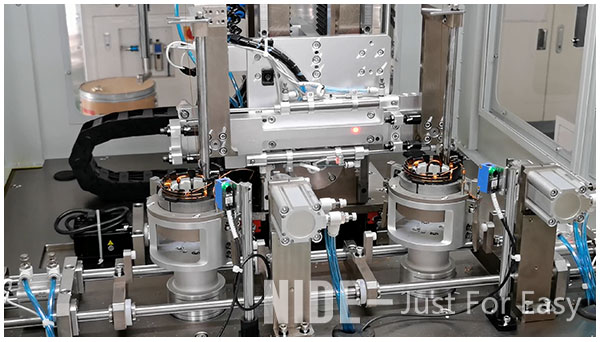

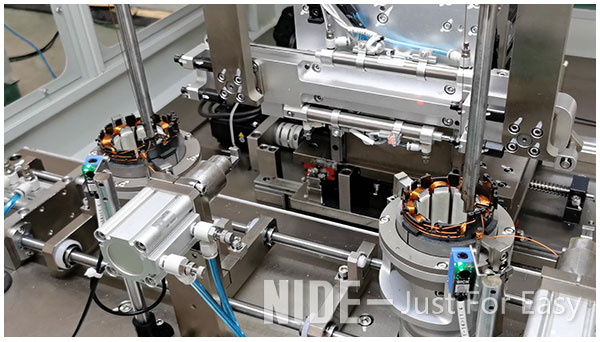

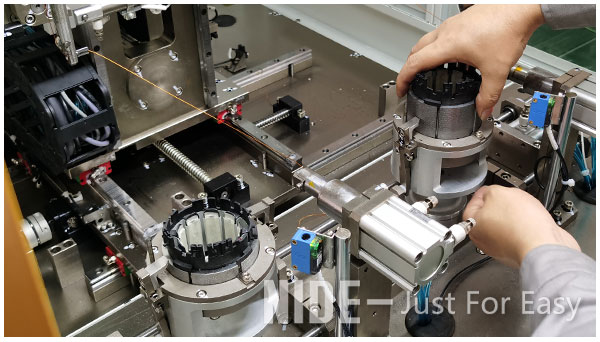

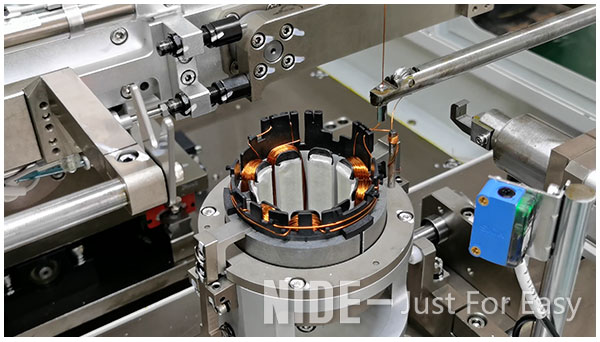

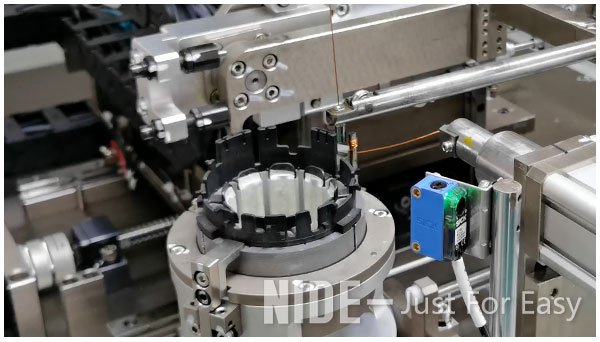

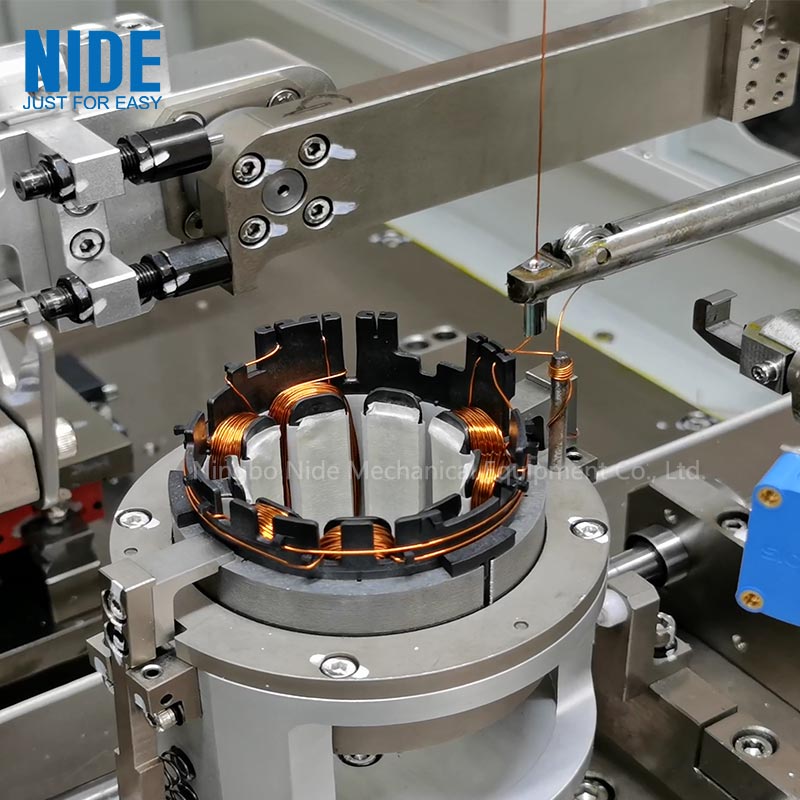

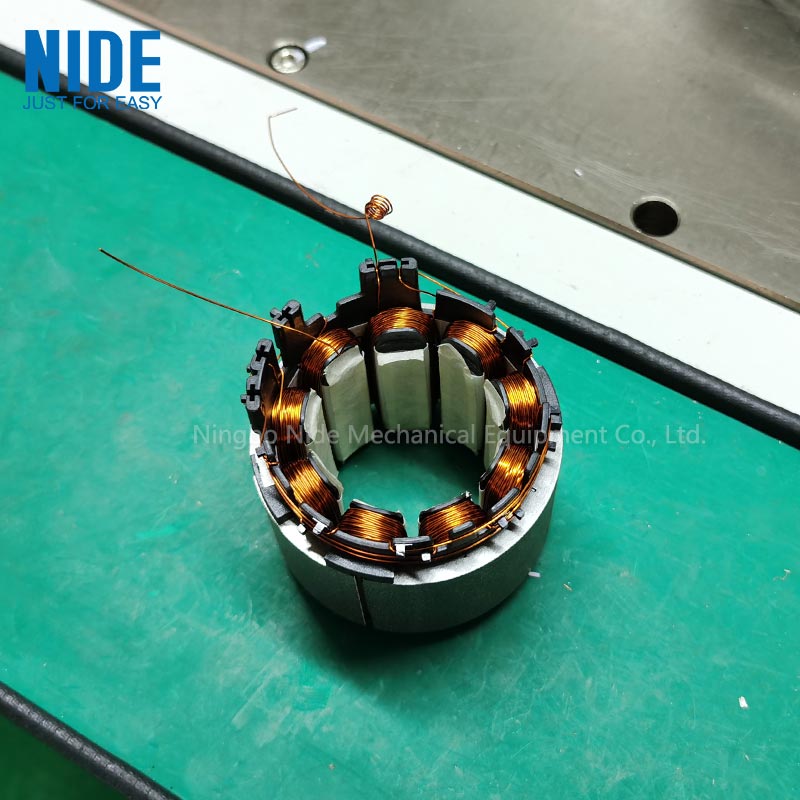

Frameless Brushless DC Motor Winding Machine Picture Show
