Automatic Self-Balance Scooter Wheel Hub Motor Winding machine
This brushless wheel hub motor winding machine is suitable for self-balancing scooter motor windings. It adopts flying fork winding technology and is equipped with two winding machine stations, which can wind 9 strands at the same time.
The brushless wheel hub motor is built into the drive wheel. This structure not only reduces the overall weight of the self-balancing scooter, but also the motor is not easily damaged. The self-balancing scooter has obvious advantages in volume and weight, the overall mass is reduced, the energy transmission link and energy loss are reduced, and the motor generates less heat.
Wheel hub winding machine application:
Self-balancing scooters, electric scooters, electric balance cars, small electric vehicles, two-wheeled electric vehicles.
Technical parameters:
| Product name: | Automatic self-balancing scooter wheel motor winding machine |
| Wheel motor Stator ID: | 10-100mm |
| Wheel motor Stator O.D: | 80-310mm |
| Wheel motor Stator stack length: | 10-50mm |
| Wire dia: | 0.2-1.3mm |
| Max. winding speed : | 1200RPM |
| Winding station: | 2 |
| Winding method: | Flyer Coil Winding |
| Parallel winding wire number : | 1-12 |
| Voltage : | three phase 380V 50HZ , single phase 220V 50HZ |
| Air pressure: | 0.4-0.7 MPA |
| Total power : | ＜7KW |
| Weight : | about 750KG |
| Dimension : | 1100x1000x1700mm |

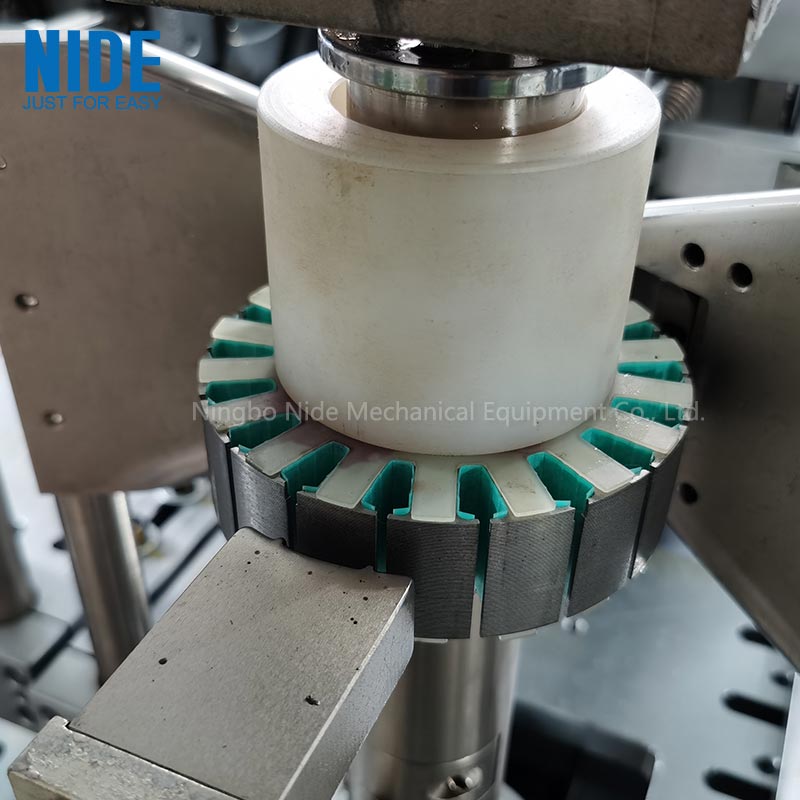

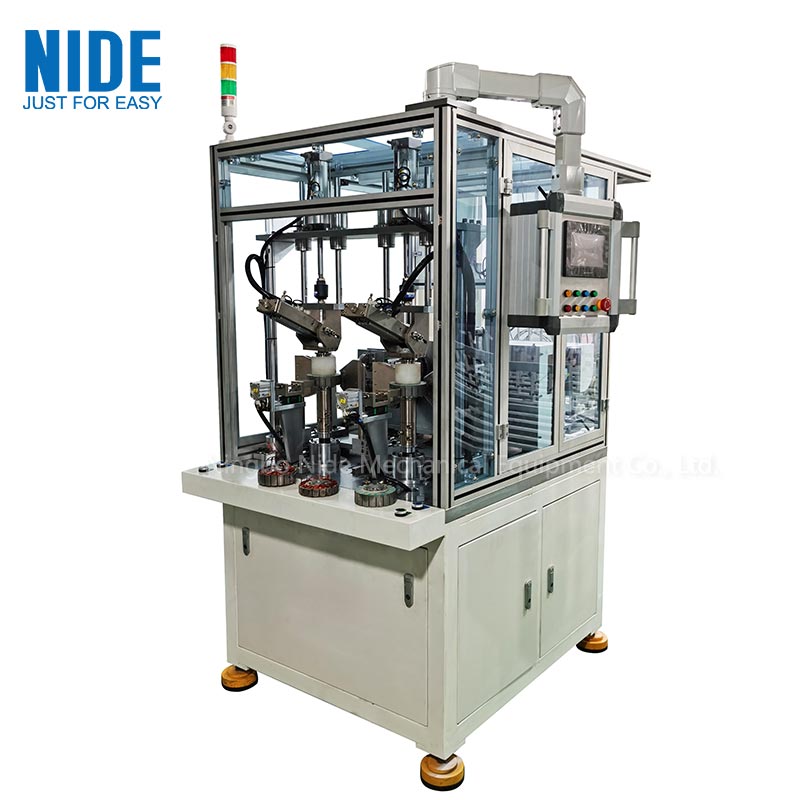

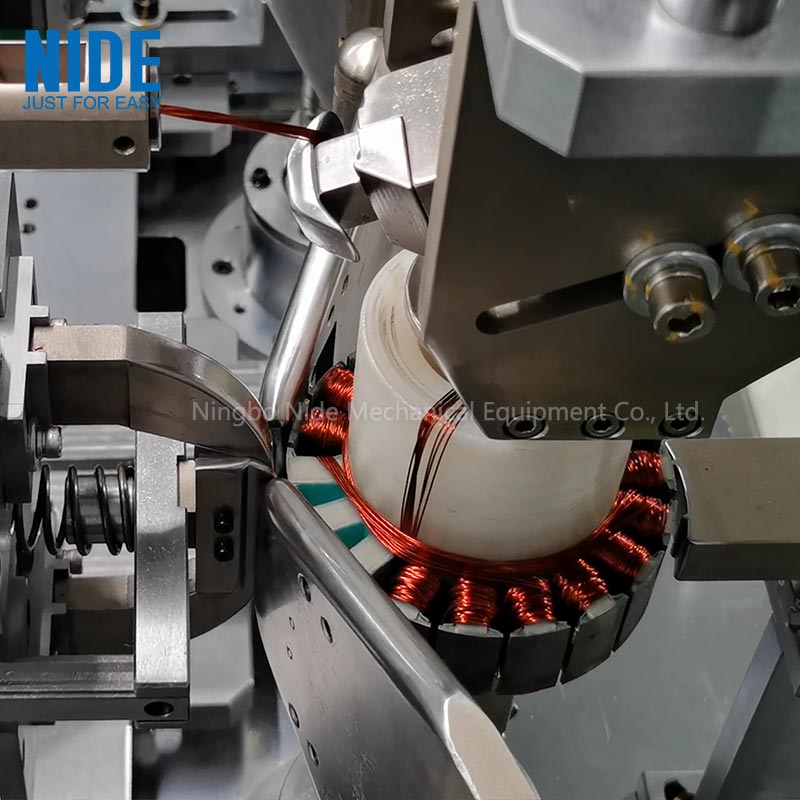

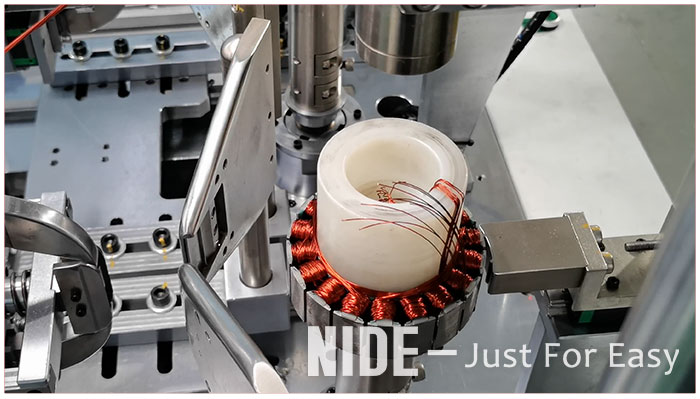

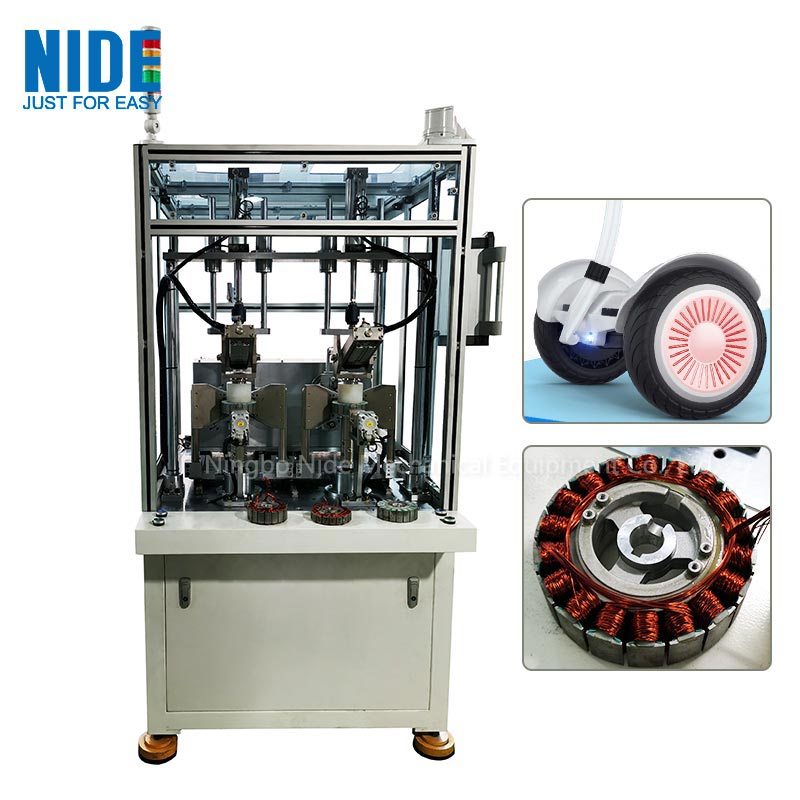

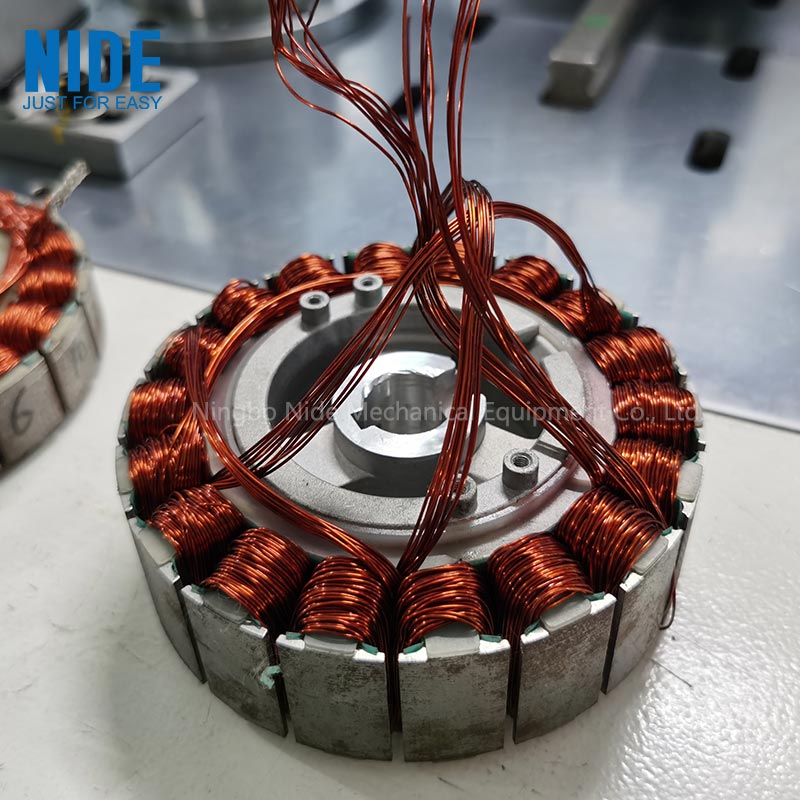

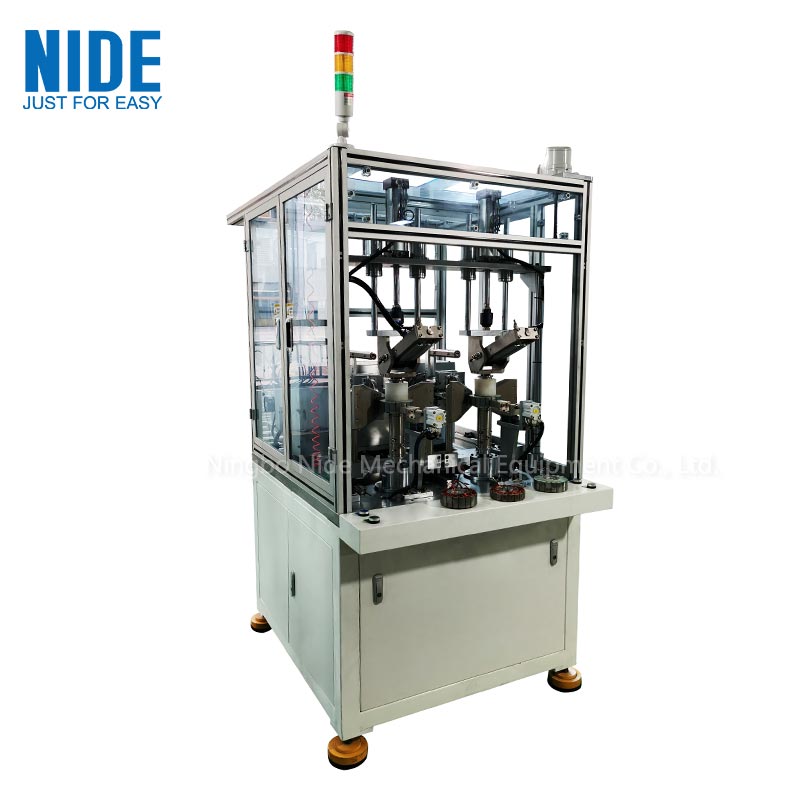

Picture Show:
Our in-wheel motor winding technology reduces starting current and back EMF, reducing energy losses. There are mainly single wire windings or multi-wire windings, depending on the needs of the in-wheel motor and its load and road conditions.
Single wire winding
Single-strand wire windings are suitable for mass production. Use mechanical winding to wind the enameled wire with a diameter of 0.7mm to 1.2mm for 10 to 20 turns, and try to make good use of the area in the slot without affecting the mechanical winding to control the speed of the hub motor body, which can improve the efficiency of the hub motor body. Controlled at around 83%.
Stranded wire winding
The multi-strand wire winding can achieve the best overall performance of the hub motor body. The winding is an enameled wire with a diameter of 0.3mm to 0.45mm, and 5 to 8 strands are wound for 5 to 10 turns. Using multi-strand wire winding, increase the starting current to 0.8A ~ 2.3A, which can increase part of the torque and remove the skin effect.
