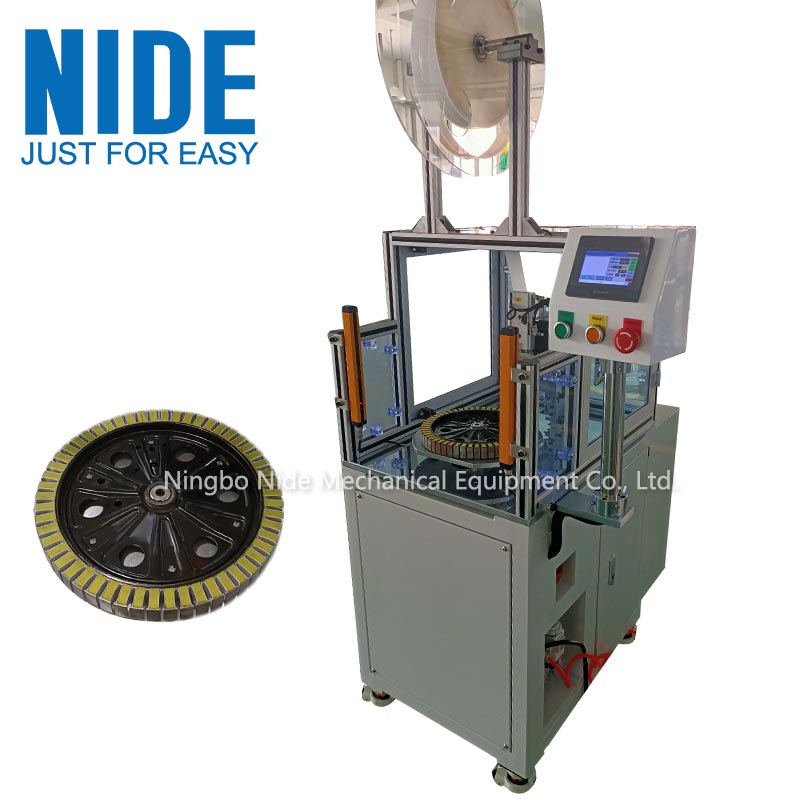

BLDC Wheel hub motor rotor paper inserting machine for electric vehicles
The BLDC motor rotor paper inserting machine is used in wheel hub motor manufacturing.
It is suitable for electric vehicles, electrical motorbike，new energy vehicles
Performance and features
The machine adopts air cylinder, PLC and touch screen control, and the paper feeding length is adjustable.

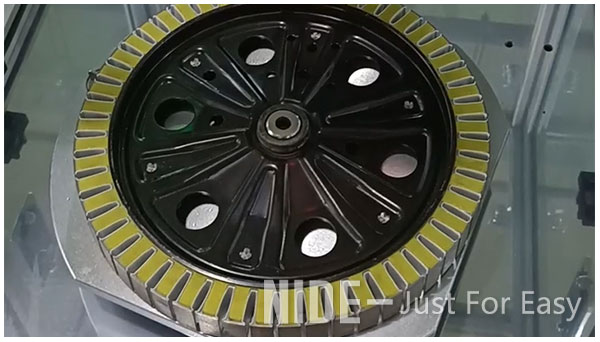

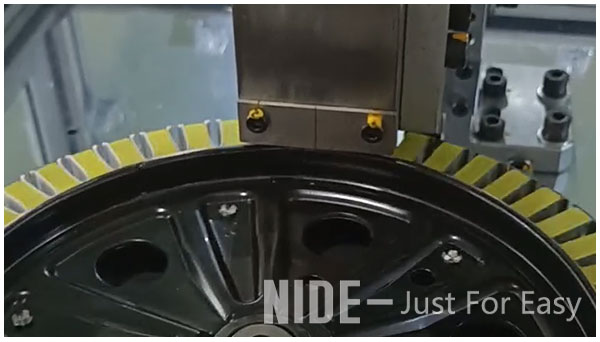

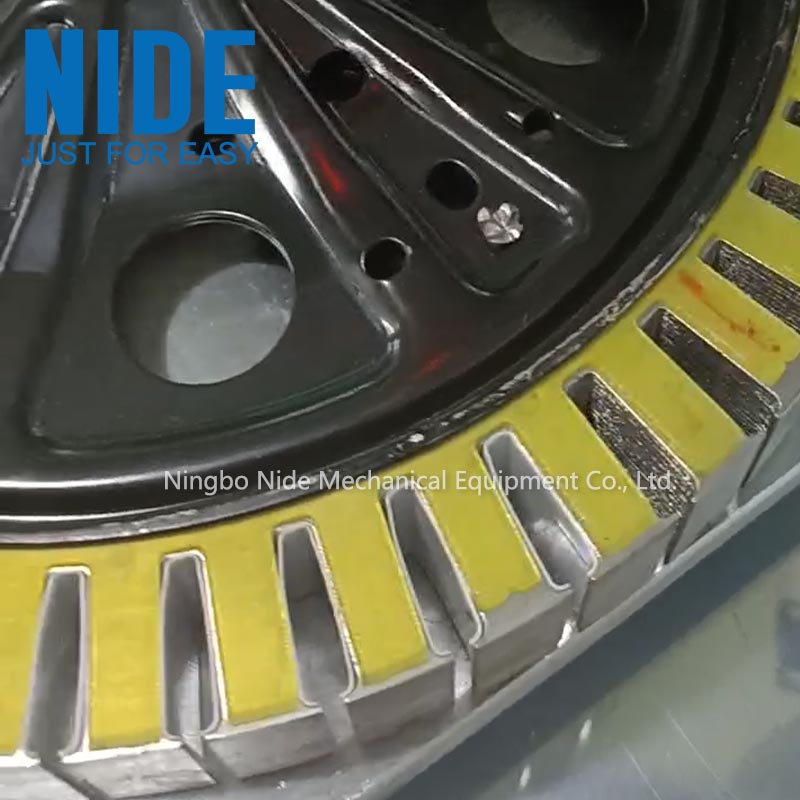

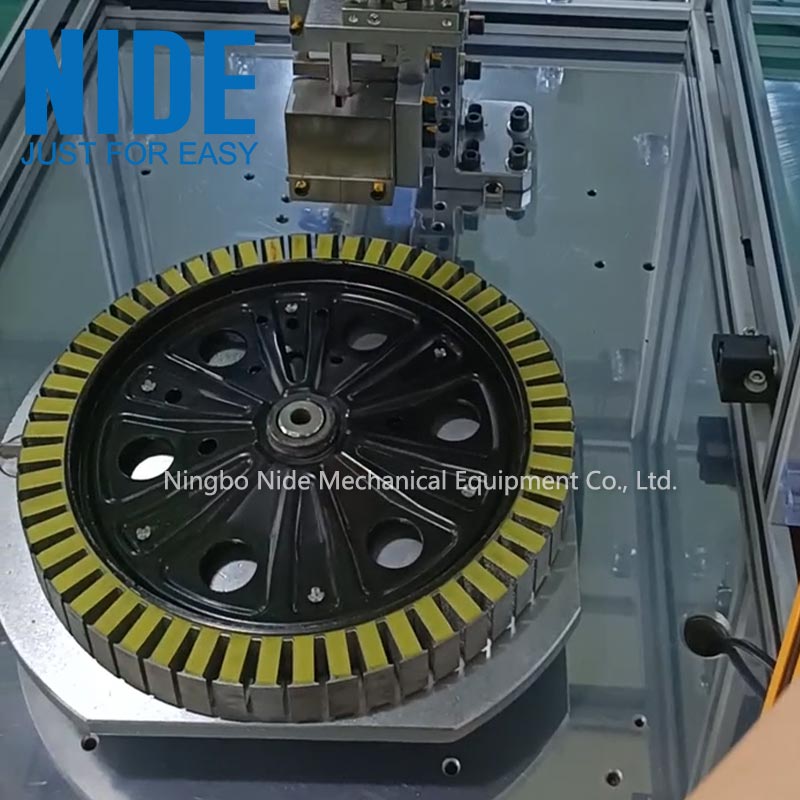

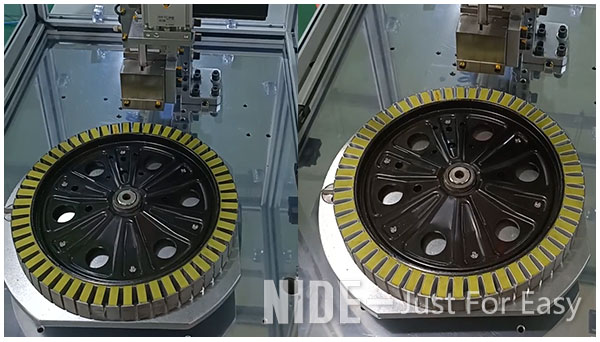

The forming paper is fed, cut, formed, discharged, indexed and other main actions through the air cylinder and motor, and the paper is inserted into each slot of the stator.
It can also bring its own shaping function.
Technical parameter
| Product name: | Wheel hub motor rotor paper inserting machine |
| Dimension： | (L)660*(W)510*(H)1779mm |
| Weight: | 200Kg |
| Air pressure: | 0.4-07Mpa |
| Input voltage: | 220V |
| Power: | 1.5KW |
| Color： | white |
| Rotor O.D: | D80-D230MM |
| Stack height; | 30-85MM |
| Paper inserting accuracy; | ≤0.4mm |
| Cycle time; | 5min/54 slot（normal） |
