Automatic DC motor winding insulation paper cutting machine with punching hole
(1). Introduction and application
The insulation paper forming and cutting machine is suitable for DC motor insulation paper and insulation slot wedge forming and cutting before motor coil winding process.
If user need the paper with punching hole, this machine can also do it.
During the paper forming and cutting machine running, the whole process will be done by machine automatically.
The insulation paper forming and cutting machine is easy to operate and easy to change tooling.
(2). Technical parameter:
| Product name: | DC motor insulation paper cutting and forming machine |
| Paper width: | Less than 130mm |
| Paper thickness: | Less than 1mm |
| Productivity: | 4pcs/second |
| Type: | automatic |
| Air pressure: | 0.4~0.7Mpa |
| Machine dimension: | 490*790*1200mm |
| Machine weight: | 110Kgs |

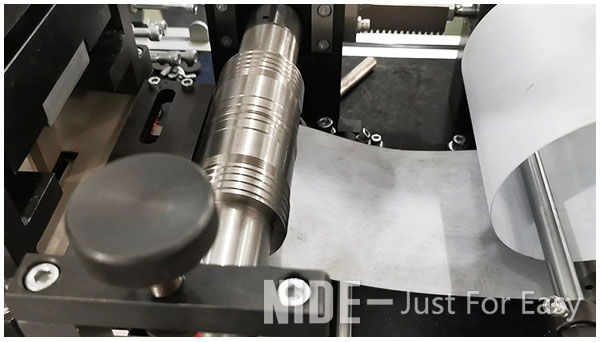

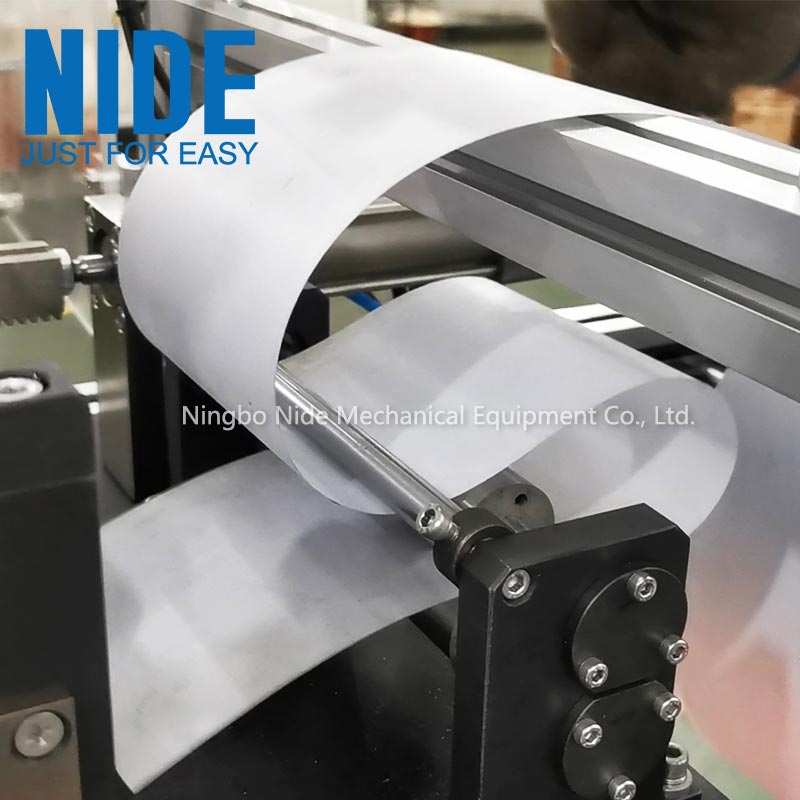

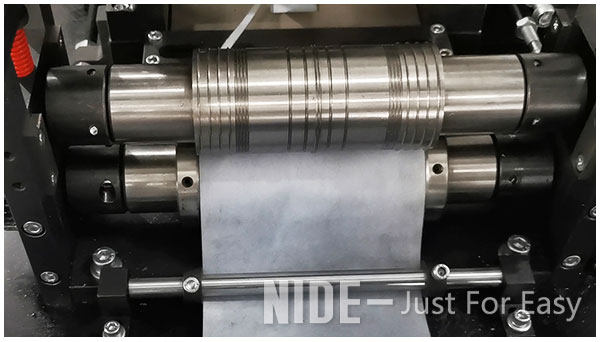

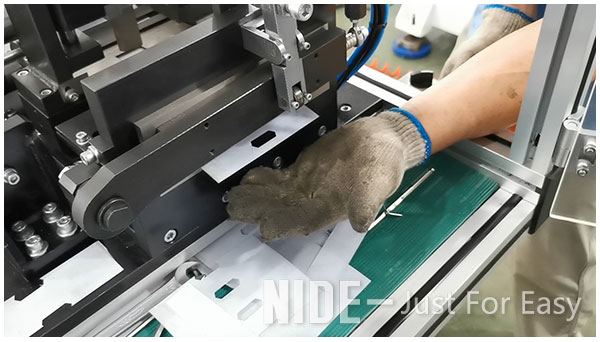

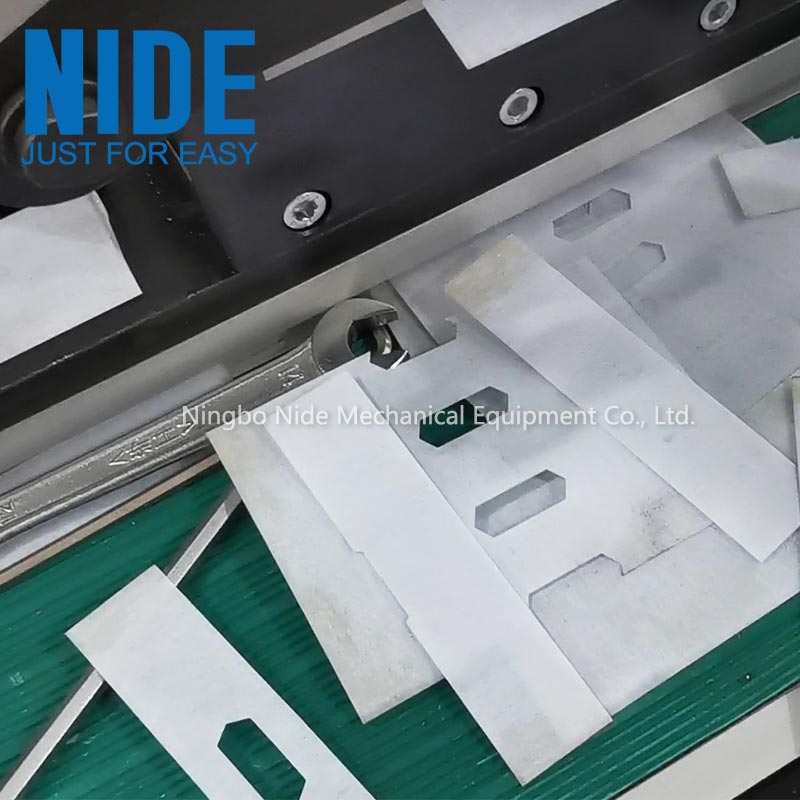

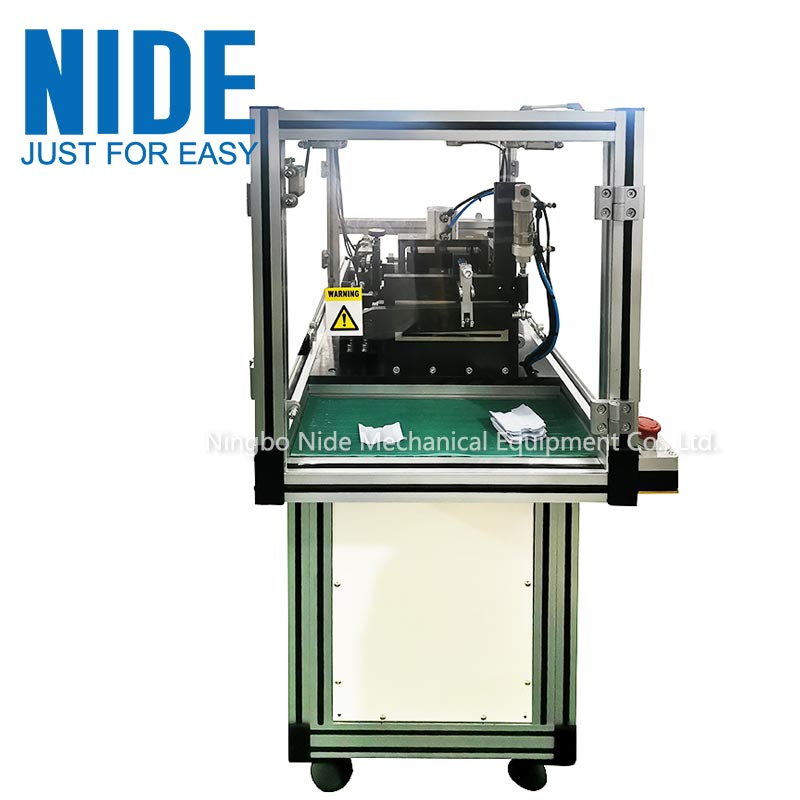

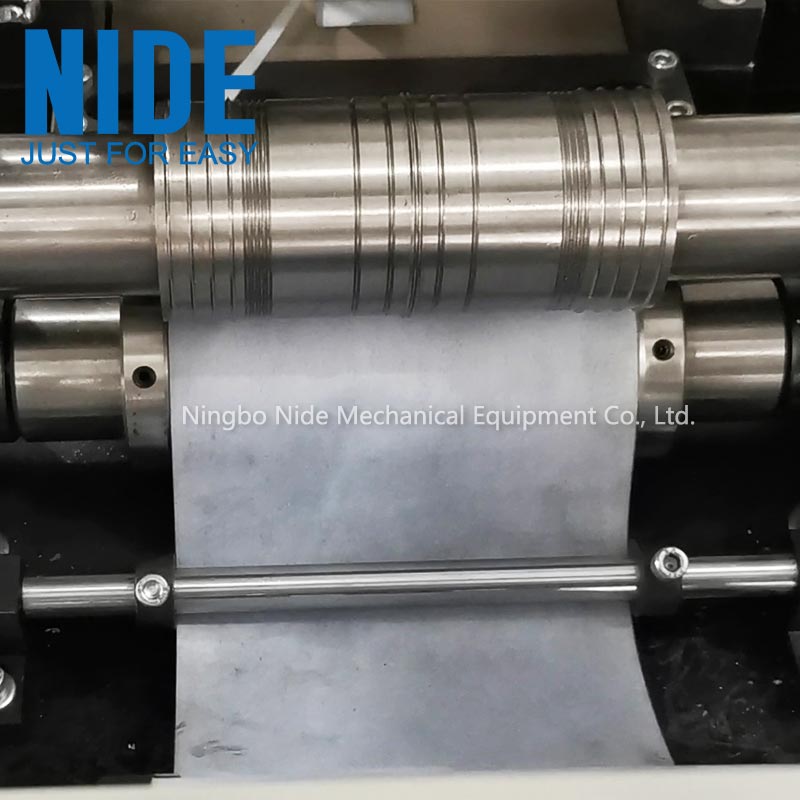

(3). Picture show:
