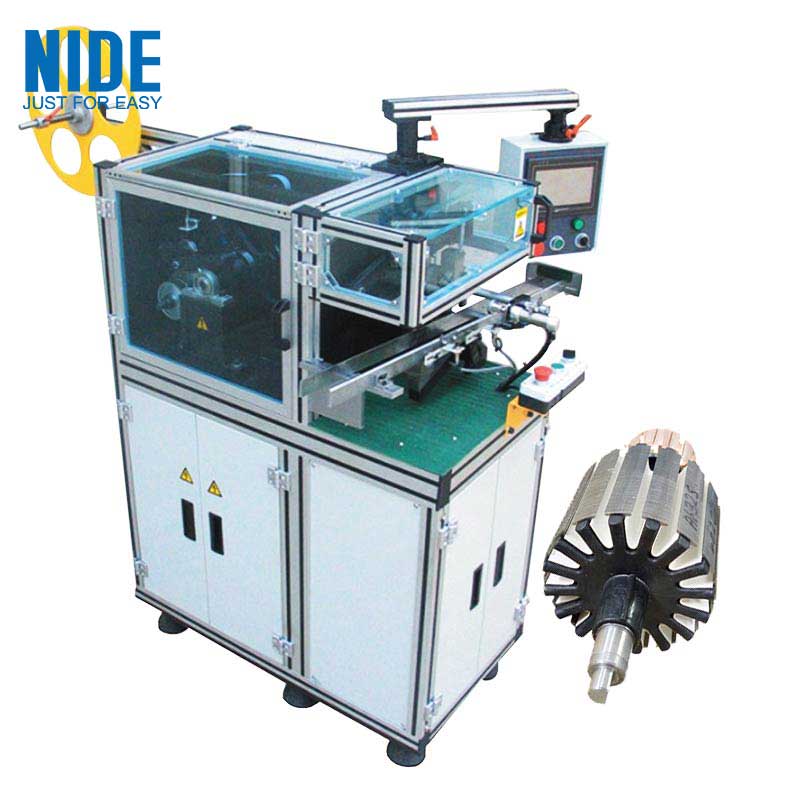

Automatic armature Rotor slot insulation paper inserting machine

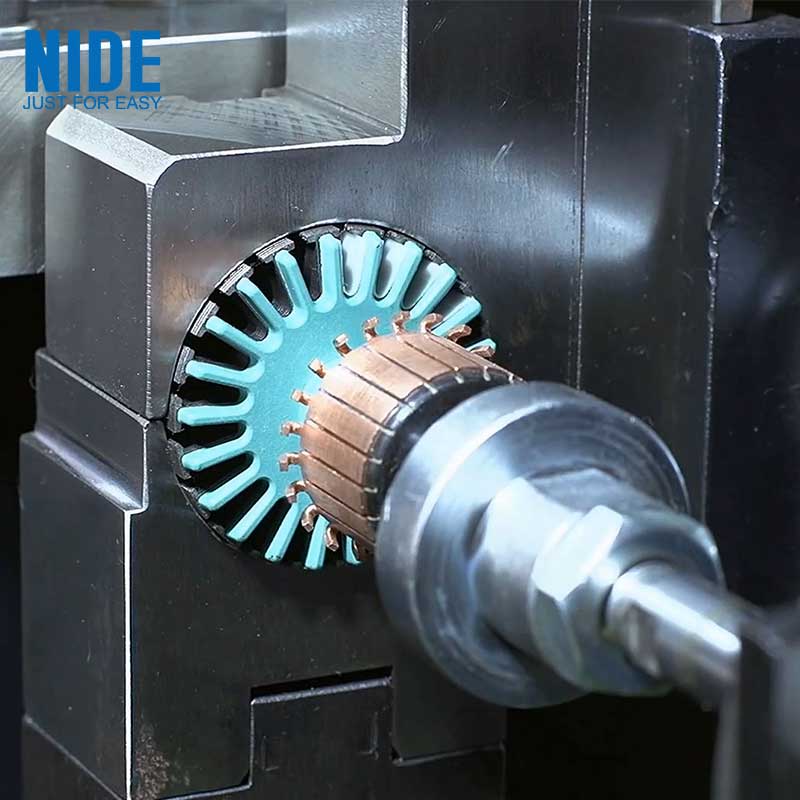

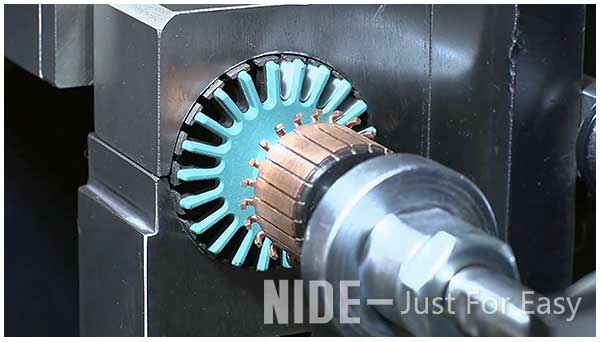

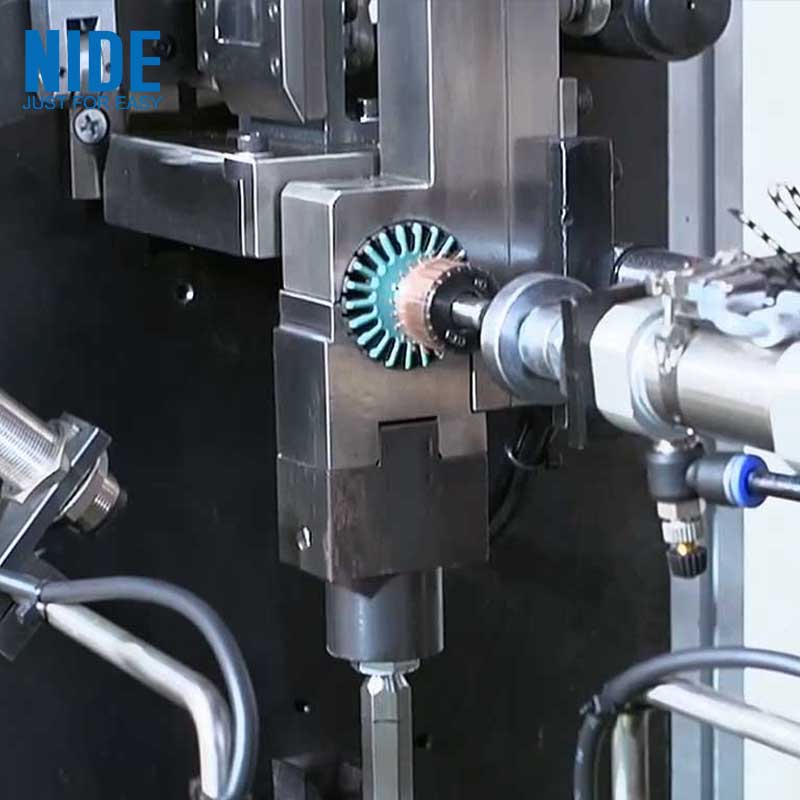

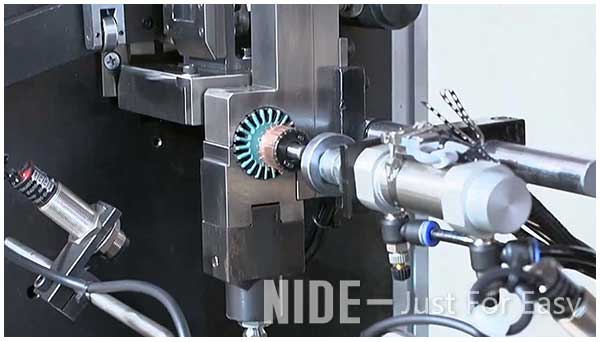

This type of rotor paper inserting machine is widely used in the armature production for inserting insulation paper into armature slot. Once press the start button, this inserting machine will automatically do paper inserting.
(1) Main technical data:
Item | Specification |
Armature O.D | 20~60mm |
Shaft length | Max 250mm |
Shaft O.D | 3~17mm |
Commutator O.D | 12~40mm |
Slot number | 8~24 slots |
Thickness of insulation paper | 0.1mm~0.5mm |
Length of insulation paper | 10~70mm |
Type of insulation paper material | DMD, DM, Polyester film |
Efficiency | 0.5S~0.8 S/slot |
Air source | 4~6Kg/cm2 |
Rated power | 1500W |
Voltage | AC220V,50/60Hz |
Weight | About 400Kg |
Dimension | 910mm x 880 x 1300m |
(2) Application

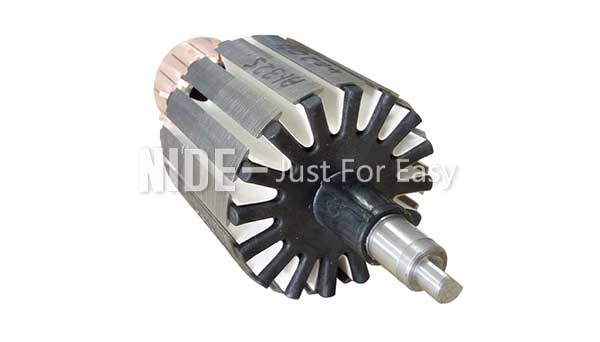

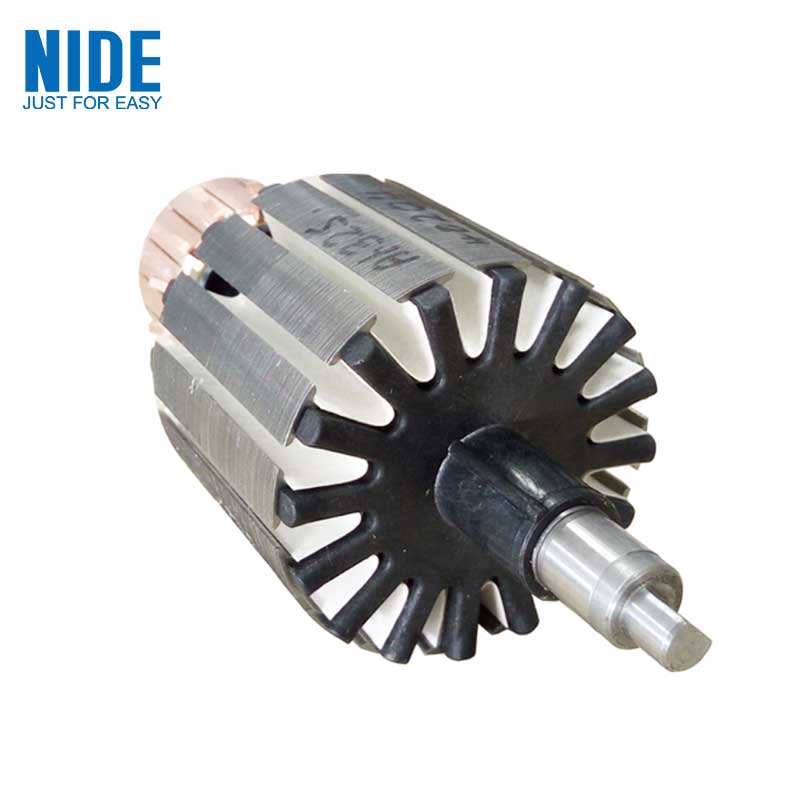

This armature rotor insulation paper inserting machine is suitable for home appliance, car motor, and power tooling motor armature.
Automatic armature Rotor slot insulation paper inserting machine video
