Eight Working Station Induction Motor Stator Coil Winding Machine
1. Machine main function and characteristic
This automatic induction motor stator coil winding machine has four winding heads and eight operation stations. High efficiency is its feature. The machine automatically put the coil into transfer former orderly, especially suitable for high production capacity requirement, high slot filling rate, small slot opening stator coil winding. Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively; Parameter could be set in human-machine interface.
Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.
2. Application of stator coil winding machine
This Automatic Eight Working Station Induction Motor Stator Coil Winding machine is suitable for 2 poles. 4 poles, 6 poles motor stator coils winding, used for Induction motor, stepper motor,fan motor, cooler motor, compressor motor, lawn mower motor, power tool motor,etc.
3. Technical paramenter of stator coil winding machine
| Product name: | Automatic 8 Working Station Stator Coil Winding Machine |
| Wire diameter: | 0.19~1.2mm |
| Swing diameter: | 220mm |
| Operation station: | 8 |
| Winding head: | 4 |
| Max stack height: | 65mm |
| Max stator OD: | 120mm |
| Max RPM: | 2500RPM |
| Air source: | ≥0.5MPa |
| Power supply: | 380V 50/60Hz 15KW |
| Dimension: | (L)2100*(W)1350*(H)2200mm |
| Weight: | About 5000KG |

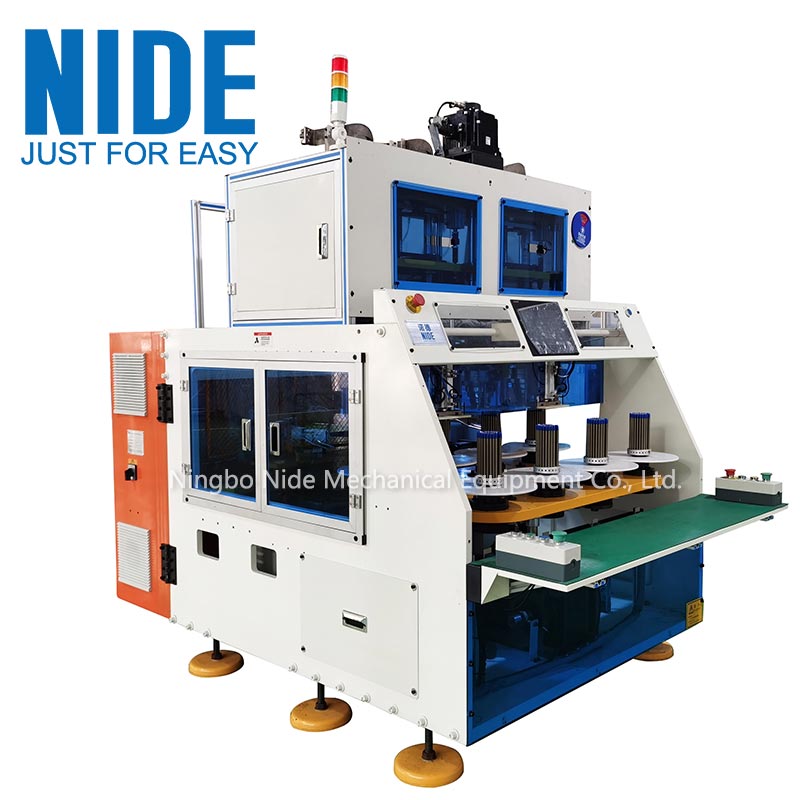

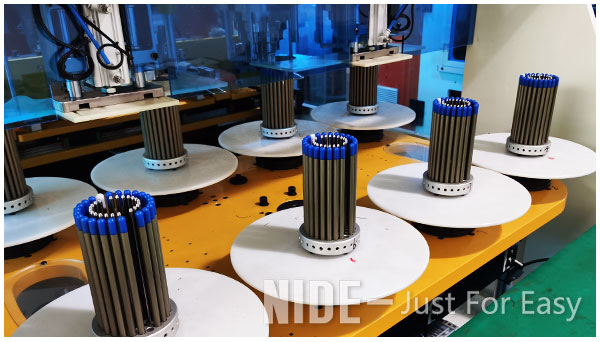

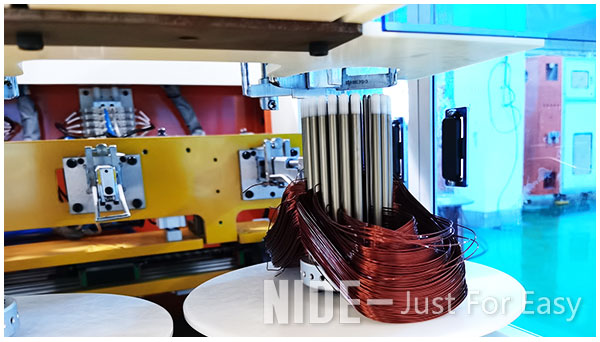

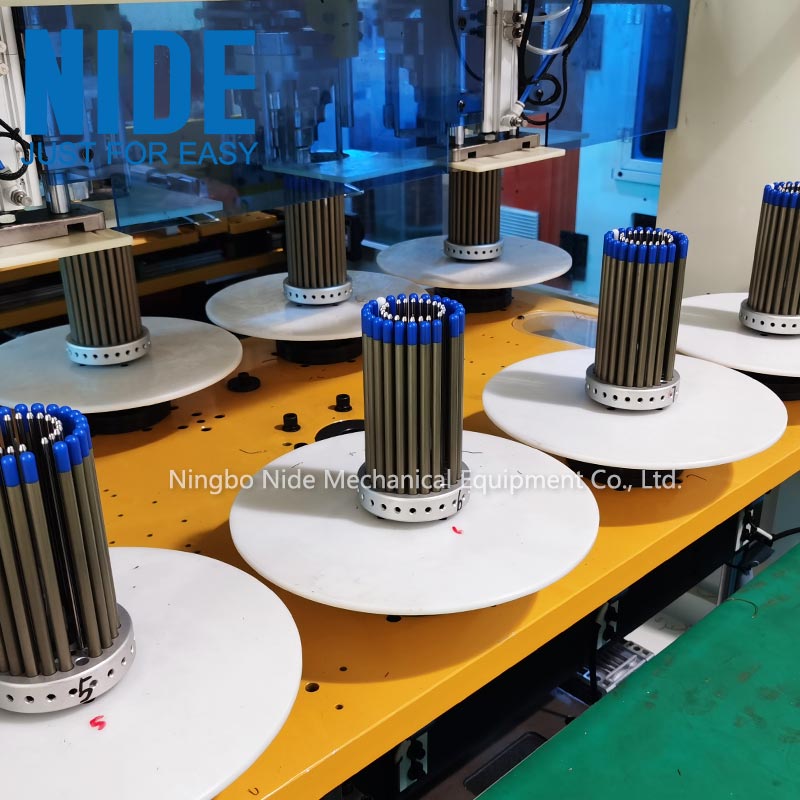

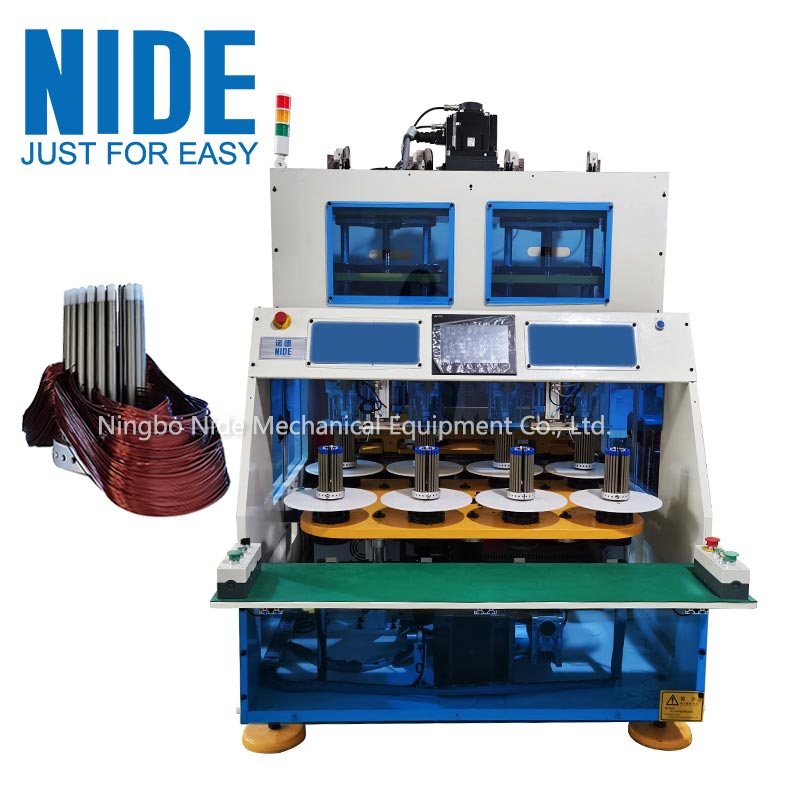

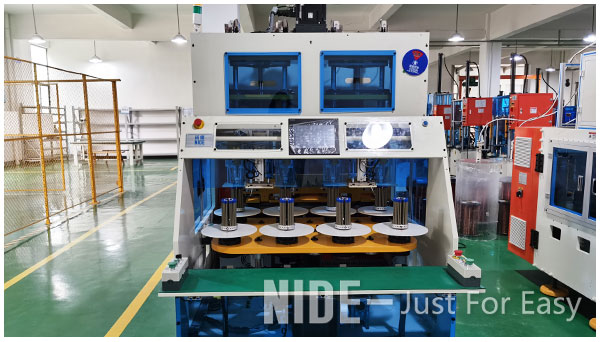

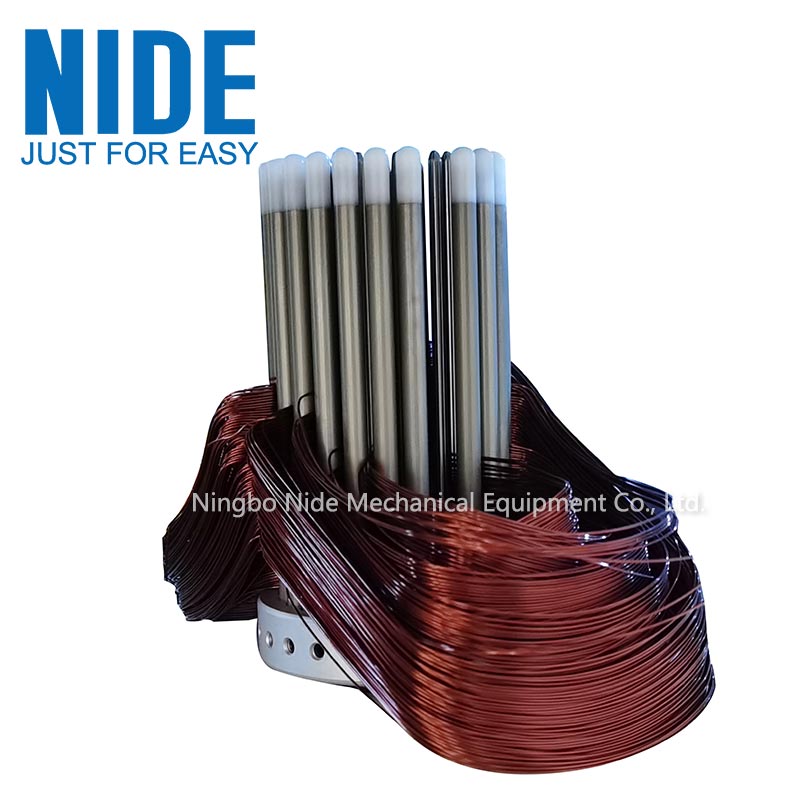

4. Induction Motor Stator Coil Winding Machine Picture show
5.The automatic stator coil winder video
