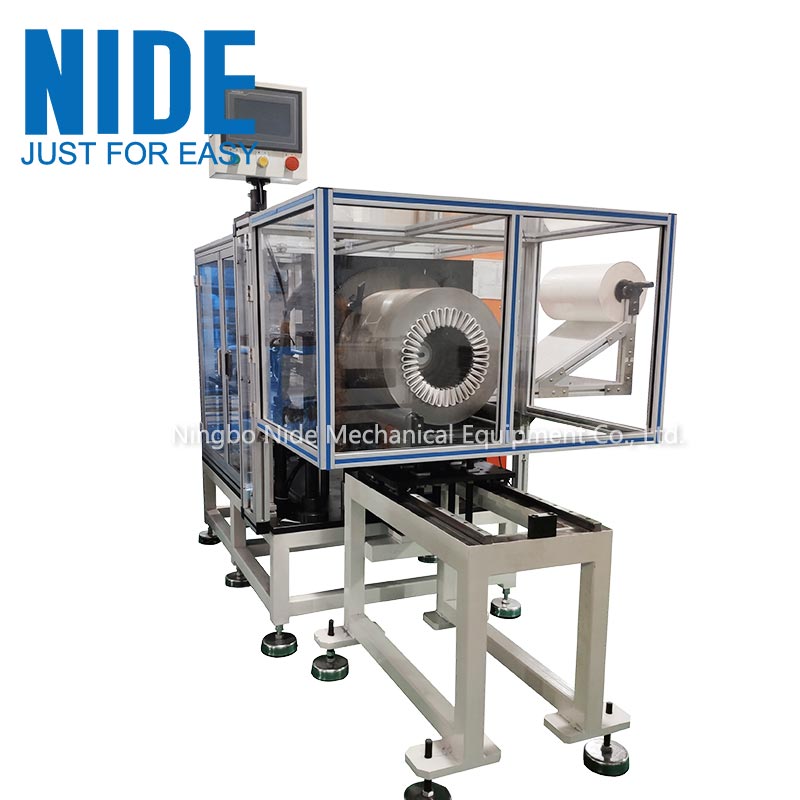

Automatic submersible motor stator slot paper inserting machine

Automatic pump motor slot paper insertion machine

The electric motor stator slot insulation paper inserting machine is suitable exclusively for large and medium-size electric motors, especially suitable for submersible motor, deep pump motor, generator, three phase machine, etc..

This insulation paper inserting machine is used for stator slot paper insertion, it can do automatic paper feeding, edge folding and forming process. We specialize in motor manufacturing equipment, including stator manufacturing and armature manufacturing, and can customize machines to meet customer needs.


(1) Application:

 The electric motor stator slot insulation paper inserting machine is suitable exclusively for large and medium-size electric motors, especially suitable for submersible motor, deep pump motor,  generator, three phase machine, etc..


(2) Machine main function and characteristic

Automatic paper feeding

Auto edge folding and forming

Adapt servo motor for indexing, paper feeding and paper pushing.

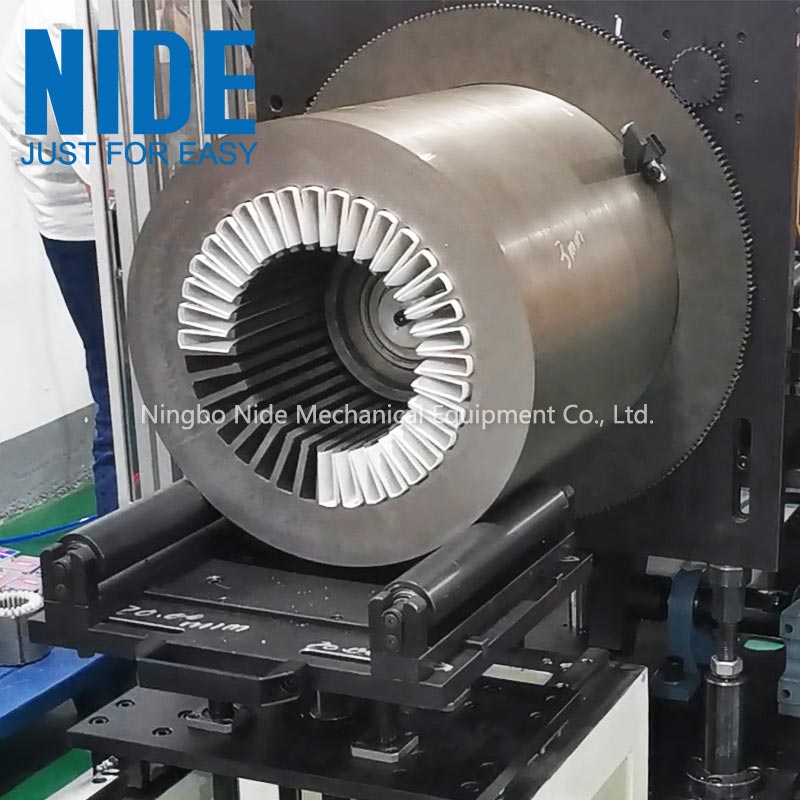

Inserting insulation paper automatically from bottom of stator slot

Interval slot inserting and skip slot inserting could be at option;

Slot number change is controlled by electric;

It is convenient and easy for different slot number stator production and changing tooling.


(3) Main Technical Parameter:

Stator height:  80-300mm

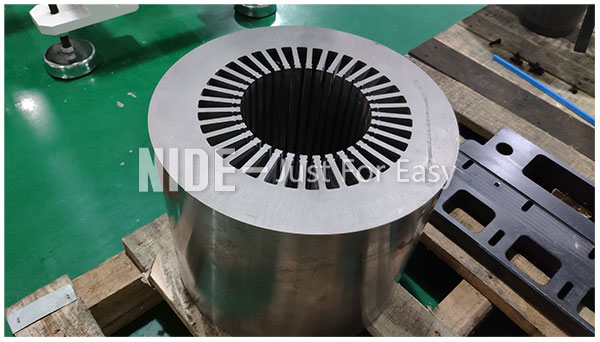

Stator OD: ≤330mm
Stator ID:φ70-φ250
insulation paper's thickness: 0.188~0.35mm
Height of edge folded: 2-4mm/4-7mm
Slot No.: 16~100slots is settable
Tack time: 1.2 S/slot
Voltage: 380V 50/60HZ
Power: 3.5KW
Weight: 600KG
Dimension: 1600*1420*1600mm

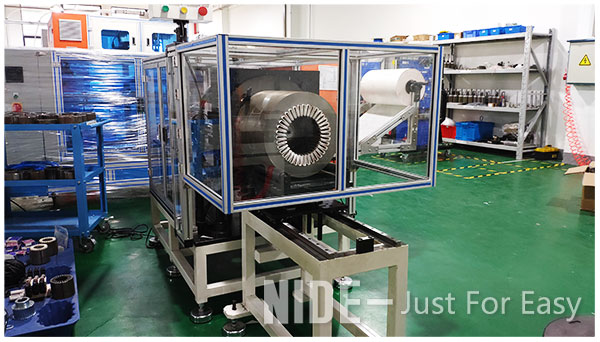

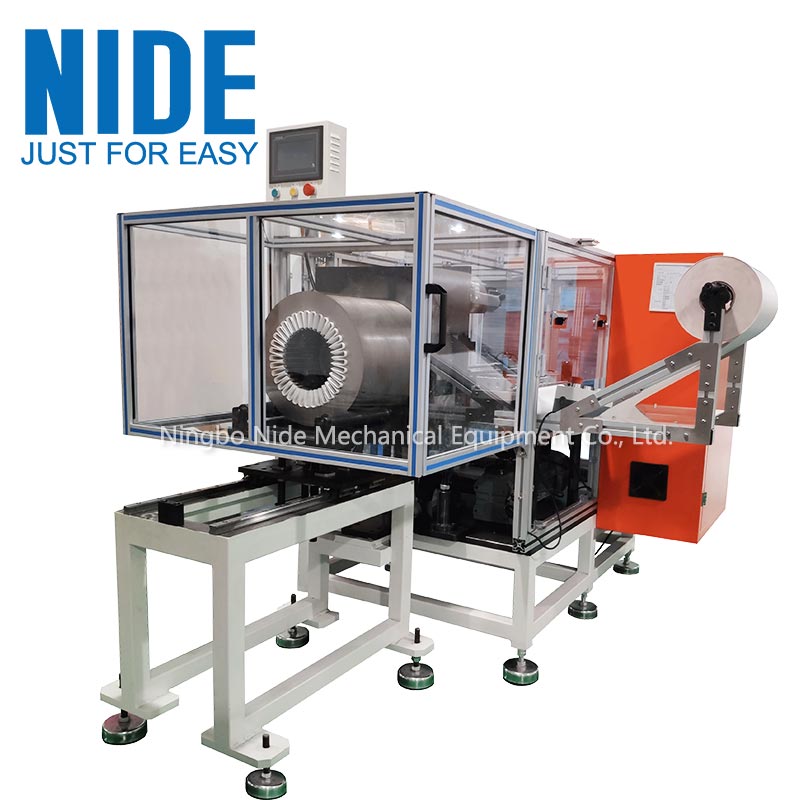

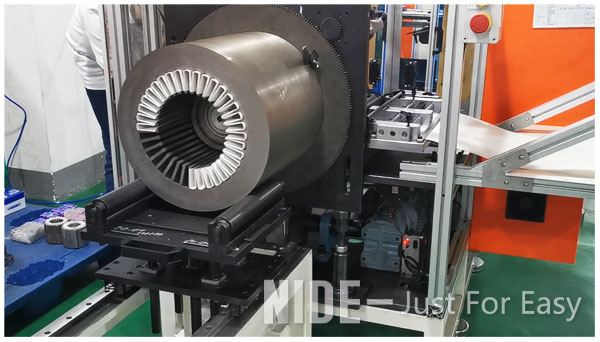

(4)Picture show
