Automatic armature rotor slot insulation wedge inserting machine
1.Insulation Wedge Machine Technical Data：
Armature O.D: Ф20-55mm
Length of lamination: Max 60mm
Shaft length: 50~250mm
Shaft O.D: Ф6~Ф20mm
Slot number: 8-24 slots
Commutator O.D: Ф12~Ф40mm
Length of wedge: 15-65mm, material is provided by user
Speed regulation range: 0~60Hz
Wedge shape: flat, U or R shape
Thickness of wedge: 0.2 mm ~ 2.0 mm
Efficiency: 0.5sec - 0.8sec/per slot, loadingàclampàfeedingàunloading (total 8~10sec/cycle for 12 slots armature)
Air source: air pressure: 4~6kg/cm2
Machine power: 1.0KW
Tooling/fixture: fast changing integrity forming wheel structure
Voltage: AC220V±10%, 50/60Hz
Air pressure: 0.5-0.7MPa
Weight: about 400Kg
Dimension: 910 mm x 880 mm x 1300mm3
2. Armature Insulation Wedge Insertion Features：
Continue operation for 3 shifts, automatically loading and unloading armatures
Could store production parameter for 100nos armatures
Display production data, including shift output, consuming time, etc. During machine running, the machine will alarm once anything abnormal occurring
Three operation mode could be switched: JOG, automatic and stepping
Easy to adjust
Machine has three color alarm light tower it indicate the machine status
The machine has level password protection function
The machine frame is welded, top side adapts aluminium alloy plus transparent organic glass, color is RAL7035
Machine has safety protection signs, safety parts are yellow, it has emergency button and operation alarm signs
3.Application

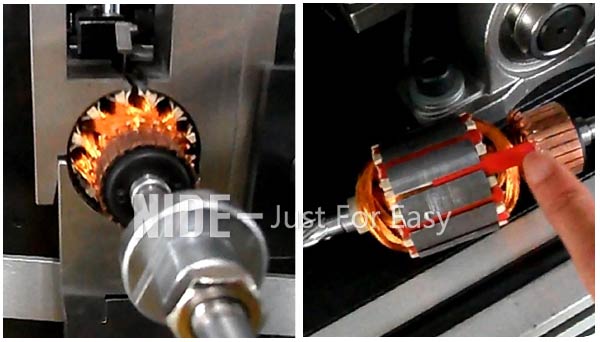

The armature wedge inserting machine is suitable for home appliance, car motor, and power tooling motor armature.

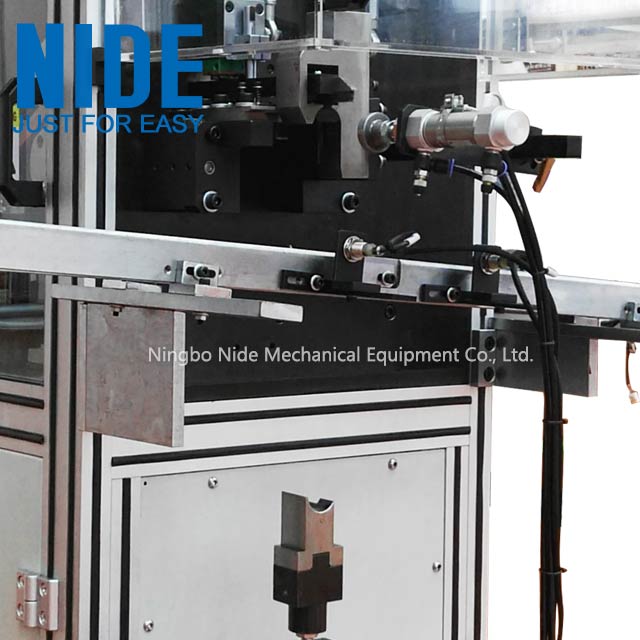

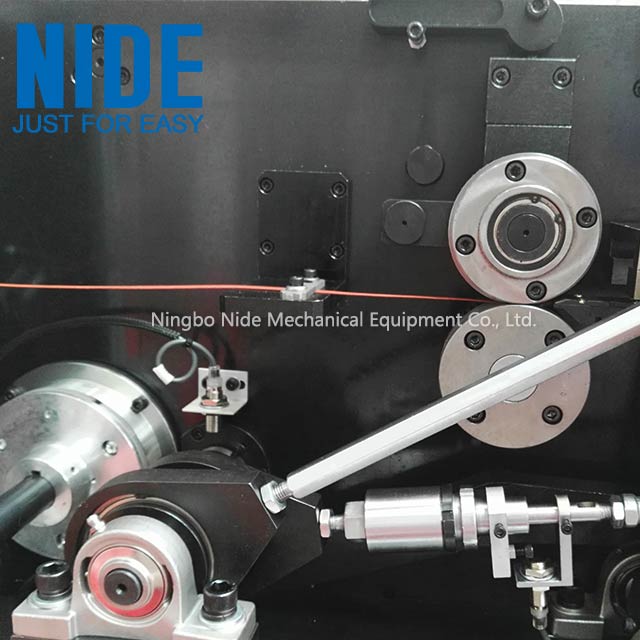

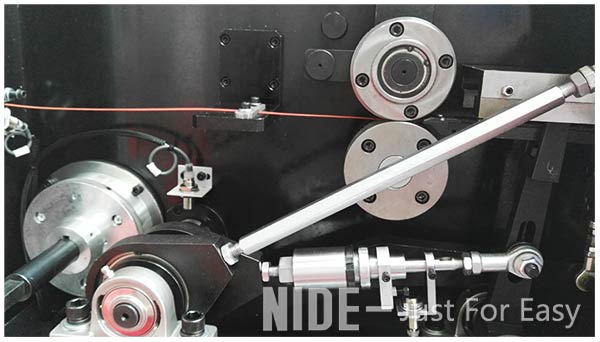

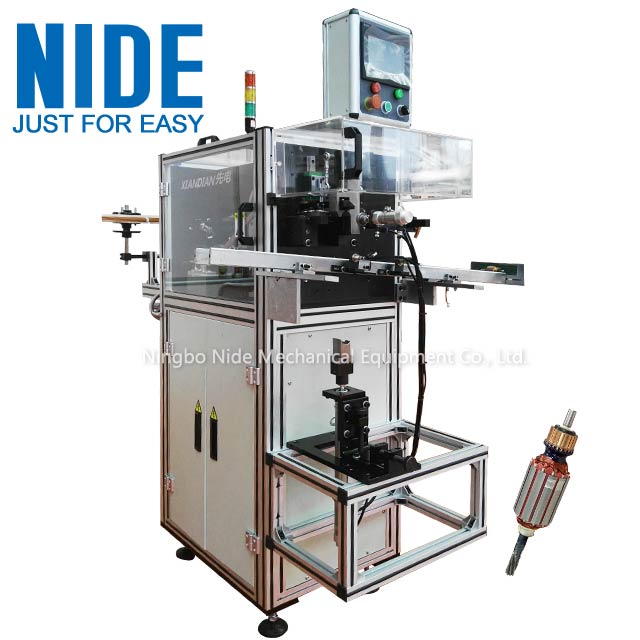

4.The armature insulation wedge inserting machine
