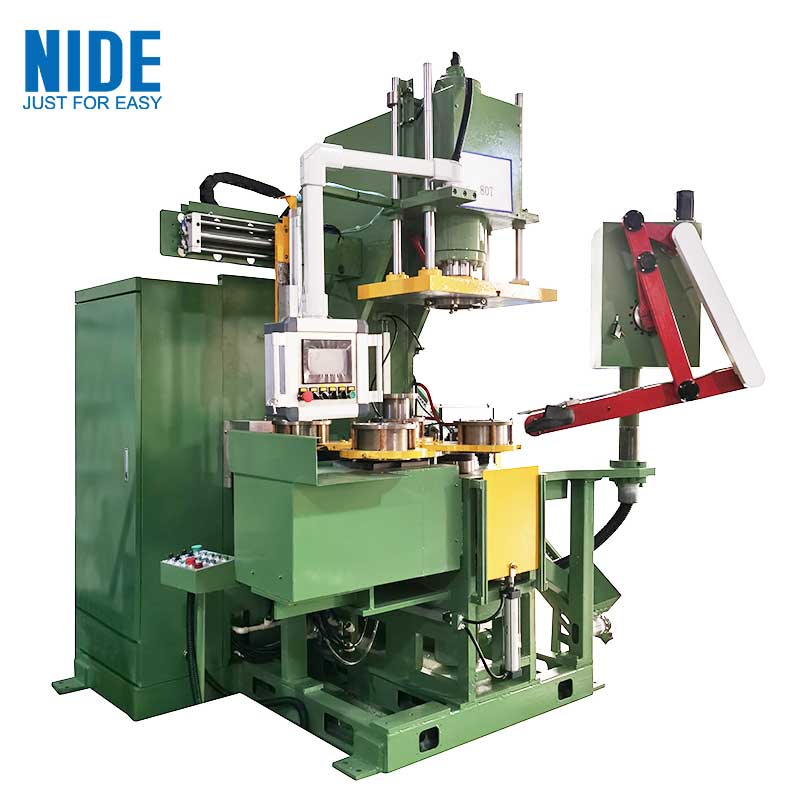

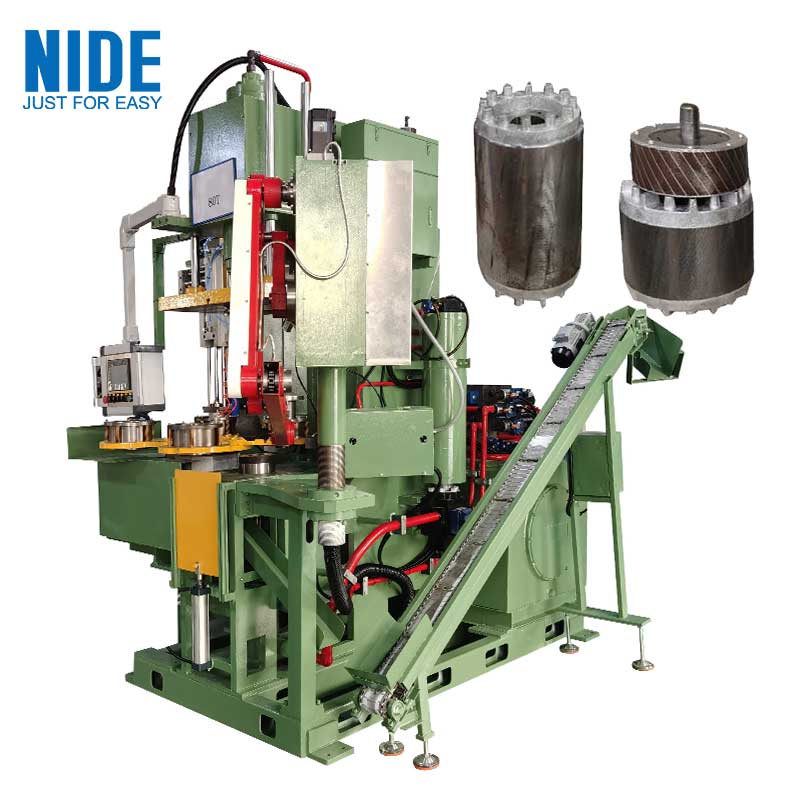

Machine feature of rotor die casting machine
Automatic get aluminum melt liquid, automatic loading and unloading the rotor.

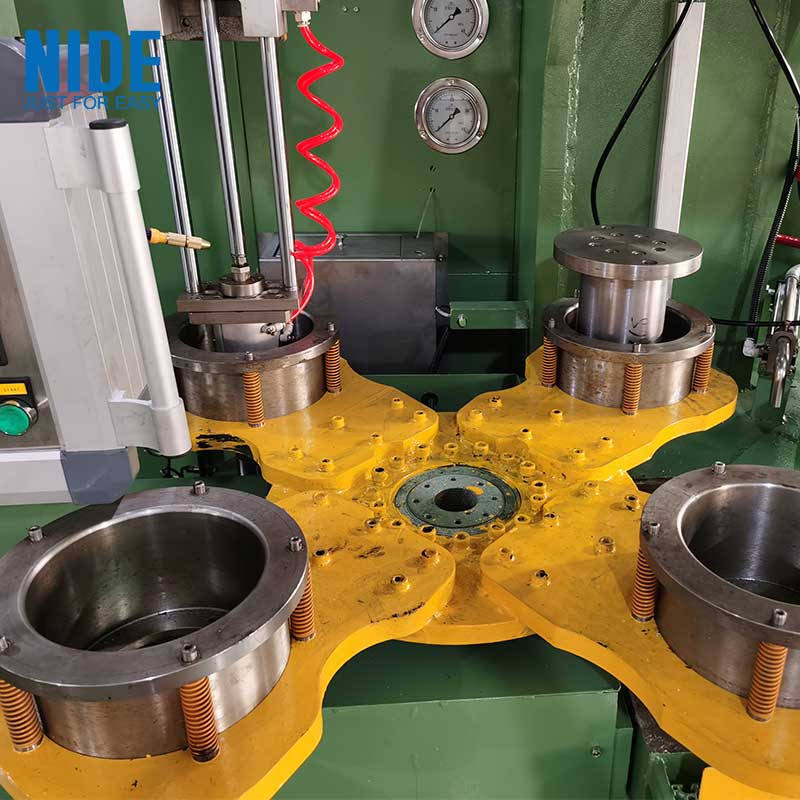

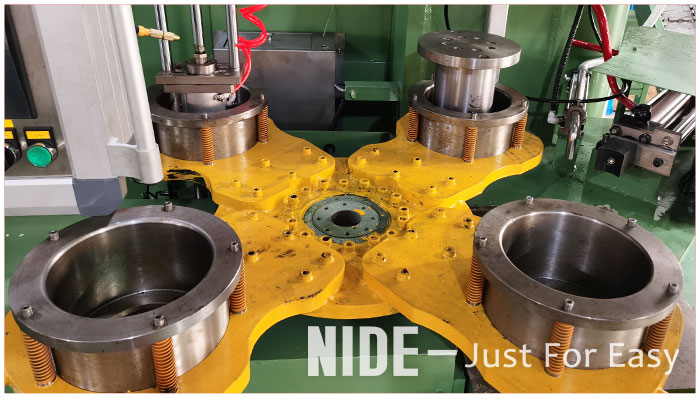

Rotor loading: automatic pneumatic circularly pick up.
Get aluminum melting liquid: servo motor control the mechanical arm, control the liquid volume through human-machine interface.

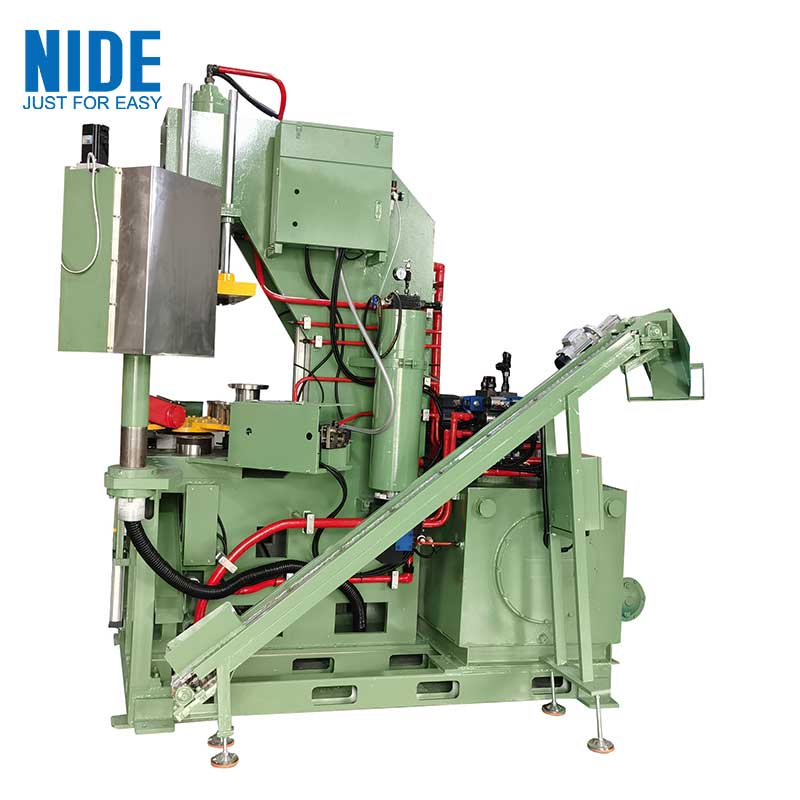

Automatic cut the waste material, automatic recycle the cut wasted material and convey it to the furnace by the conveyor.
Automatic feed mold releasing agent, the feeding time and times can be set.
There is water cooling channel, helpful for reducing the mold temperature effectively.
Setting on touch screen: forward and backward speed, stroke, swing angle of the mechanical arm, loading speed,etc.
Machine will alarm and stop working if out of material.
Failure will be automatic displayed and machine will alarm.
One person can take care of more than one machine.
Comparing with the conventional die casting machine, Our automatic rotor die casting machine has following features.
a. Power saving, and tooling cost is much less and fast tooling changeover.
b. Healthy, our machine doesn't need asbestine cup to keep the temperature and demould
c. safe, it is very easy for operator to run the machine, operator only need to press "start" button, no need to handling the heavy tooling which might occur body injury, and the machine has aluminum anti spatter design to prevent the aluminum liquid from spraying and cause injury.
d. labor cost saving, only one operator required, the aluminum scrap automatic recycle.
etc
| 一、Specification | |||
| No. | Item | Unit | 80Tspecification |
| 1、Main cylinder： | |||
| 1 | main cylinder mold lock force | KN | 500 |
| 2 | main cylinder mold lock travel | mm | 300 |
| 2、Injecting cylinder： | |||
| 1 | Injecting cylinder travel | mm | 150 |
| 2 | Injecting cylinder injecting force | KN | 300 |
| 3 | Injecting force（Min-Max） | KN | 70-300 |
| 4 | capacity | L | 20 |
| 5 | aluminum depot OD(Max) | mm | 75-90 |
| 6 | punching head OD(Max) | mm | 75-90 |
| 7 | aluminum depot capacity(Max) | kg | 1.5 |
| 8 | Injection punching head travel distance | mm | 55 |
| 9 | cycle time | s | 15-20 |
| 10 | Rotor OD | mm | Max 85 |
| 11 | Rotor stack height | mm | Max 70 |
| 3、Motor and pump： | |||
| 1 | Pump motor power | KW | 7.5 |
| 2 | Divider motor powder | KW | 0.75 |
| 3 | Oil pump (plunger pump) | L | 40Y |
| 4、Machine dimension： | |||
| 1 | Main frame（L*W*G） | mm | 1800*1800*2500 |
| 2 | assembly of oil tank and electric appliance（L*W*G） | mm | 1500*1000*900 |
| 3 | turntable OD | mm | 1000 |
| 5、Cooling pump specification： | |||
| 1 | Submersible pump power | KW | 1.5 |
| 2 | Submersible pump rate of flow | M3/H | 5 |
| 3 | Submersible pump water pressure | MPa | 0.4 |
| Remark: the max pressure of this machine is 25Mpa / Submersible pump power 220/380V Optional | |||
Apart from the rotor die casting machine, we supply full range machines for stator and rotor manufacturing, such as stator coil winding machine, coil inserting machine, rotor assembly line, rotor turning machine, etc.
