Automatic Motor Inner Stator Insulation Paper Insertion

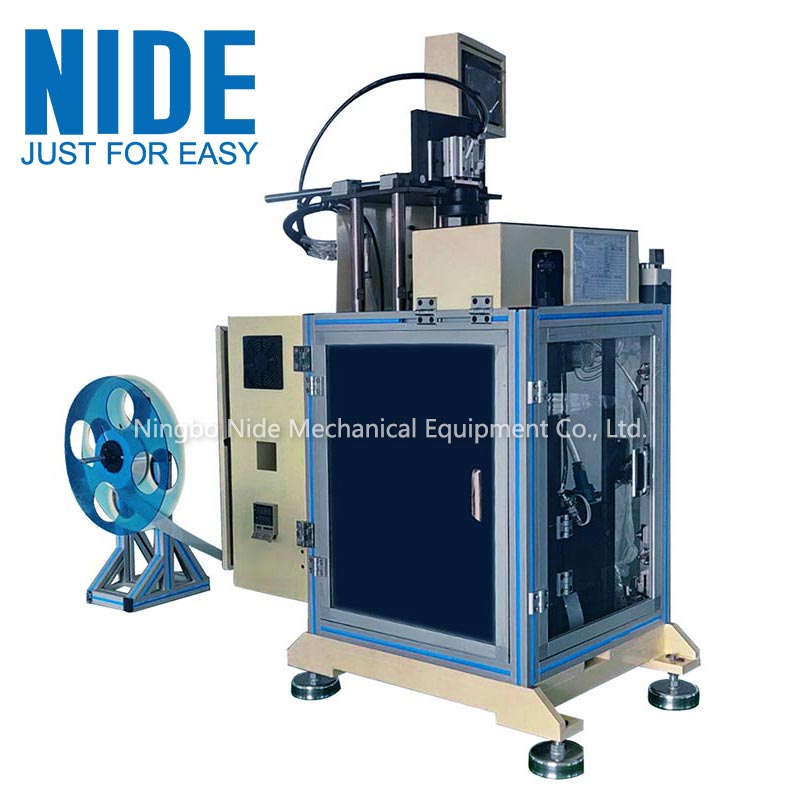

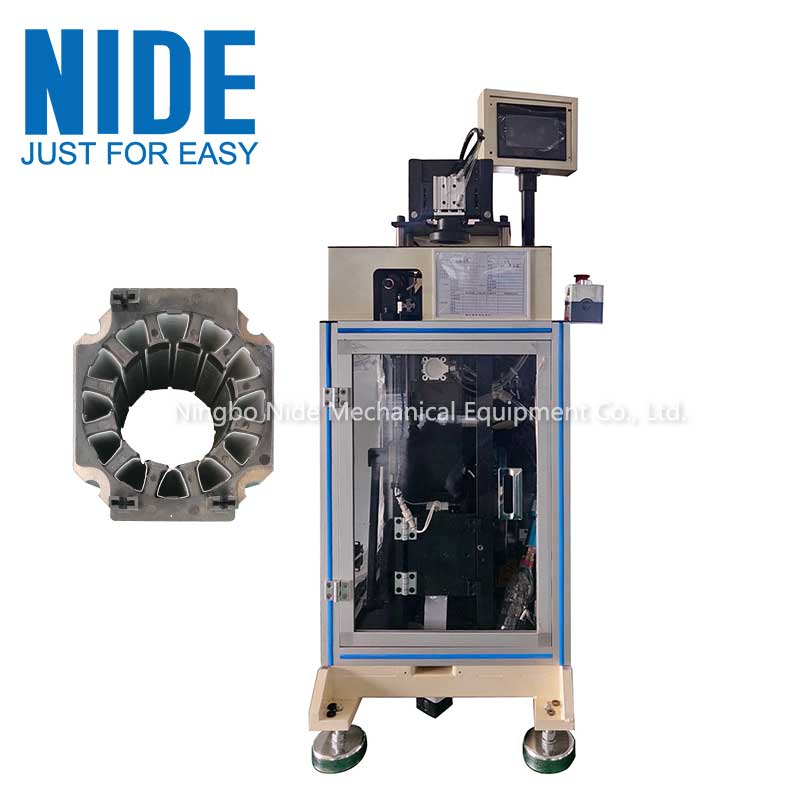

Automatic Motor Inner Stator Slot Paper Inserting Machine

The slot paper insertion machine can automatically complete paper cutting, folding and inserting.

Automatic electric BLDC motor inner stator insulation paper cutting and insertion machine

(1). Introduction and features

The slot paper insertion machine can automatically complete paper cutting, folding and inserting.
The parameter can be set on HMI.
Low noise, high speed and high automation and easy operation.
It has remote diagnosis function.

(2). Specification

Product name: Automatic inner Stator slot paper inserting machine
Stack height: 20mm ~ 58mm
Stator I.D: 50~ 160mm(can be customized if special)
Insulation paper width:10mm ~ 60mm(can becustomized if special)
Insulation paper thickness:0.188mm ~ 0.3mm
Slot No.: Even(more than 8 slots)
Cycle time: 11sec/pc
Notching dimension: 0-3x45
Air pressure: 0.4~0.8MPa
Power supply: 220V AC 50/60Hz
Power: 7KW
Weight: 650Kg
Dimension:1700mm X 750mmX 1880mm


(3). Application

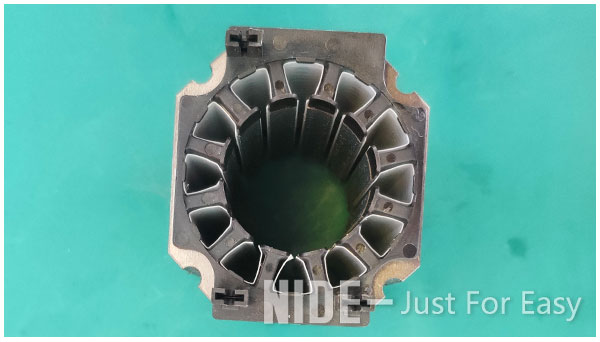

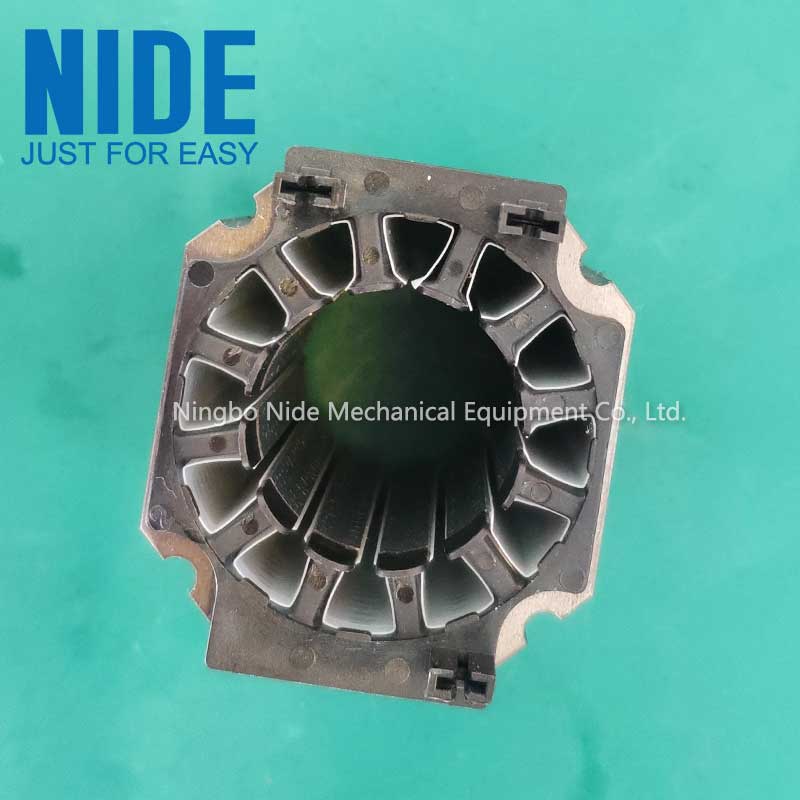

The slot paper inserting machine is suitable for BLDC / brushless motor inner stator, servo motor and stepping motor stator slot insulation paper inserting.


(4).Picture show


(5). The motor stator inner slot insulation paper insertion machine video
