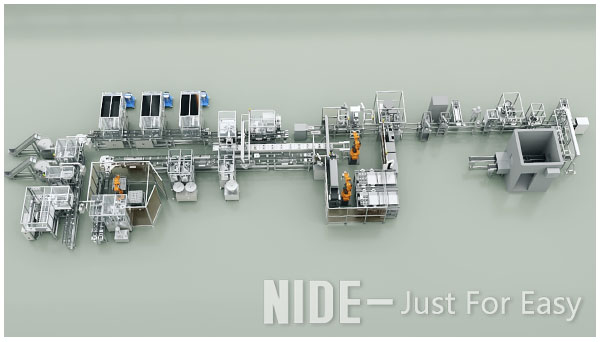

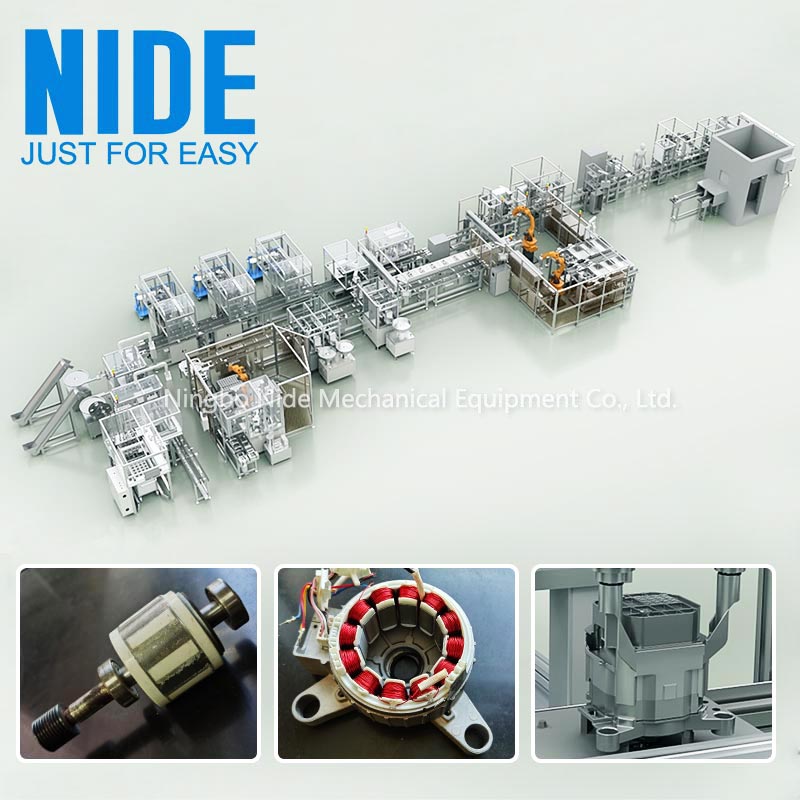

Fully Automatic Washing Machine BLDC Motor Manufacturing Line

This fully automatic BLDC motor assembly line is suitable for washing machine motor manufacturing, automobile motor manufacturing, compression motor manufacturing, new energy motor manufacturing, and brushless DC motor manufacturing.

The motor assembly line includes BLDC stator manufacturing, BLDC rotor manufacturing, brushless motor assembly, stator insulation paper insertion , end plate press-fitting, stator winding, terminal press-fitting test, armature rotor shaft insertion, bearing insertion, stator and rotor test, motor assembly and test, the entire motor assembly process is highly automated, without manual operation.

Fully Automatic Motor Manufacturing Process Video

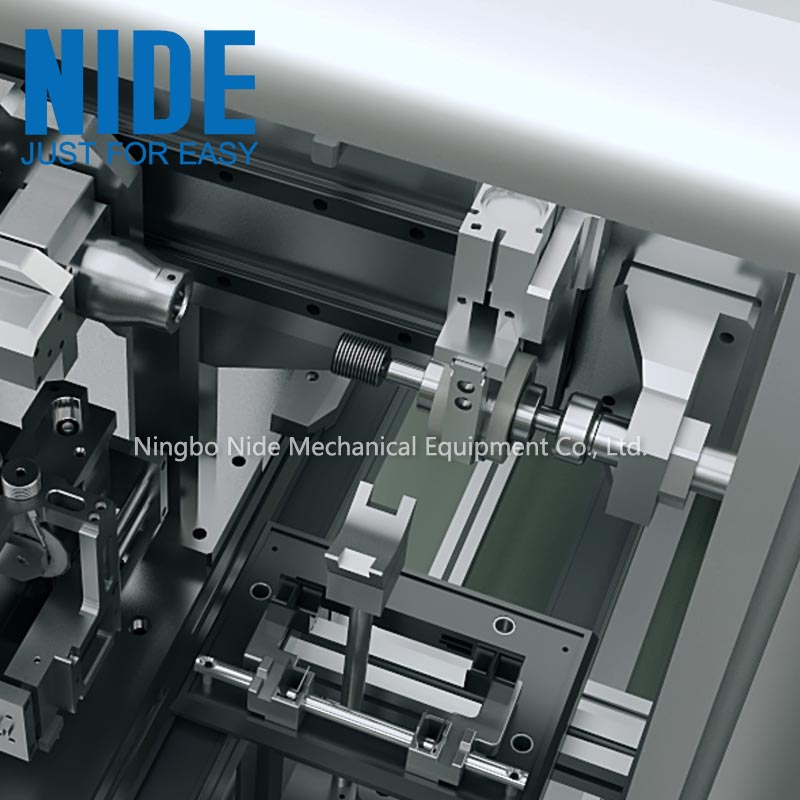

BLDC Rotor Manufacturing Process

1.Auto rotor feeding

2.Bearing pressing

3.Pulley Pressing

4.Rotor Balancing

5.Magnetizer

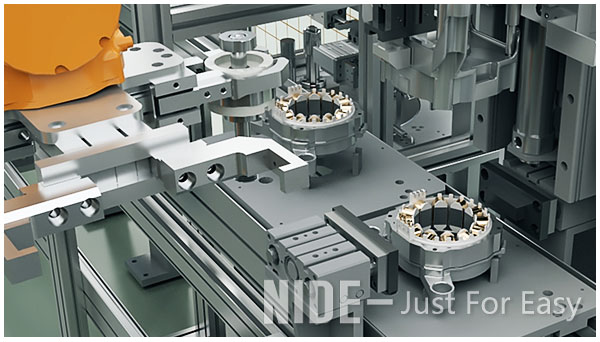

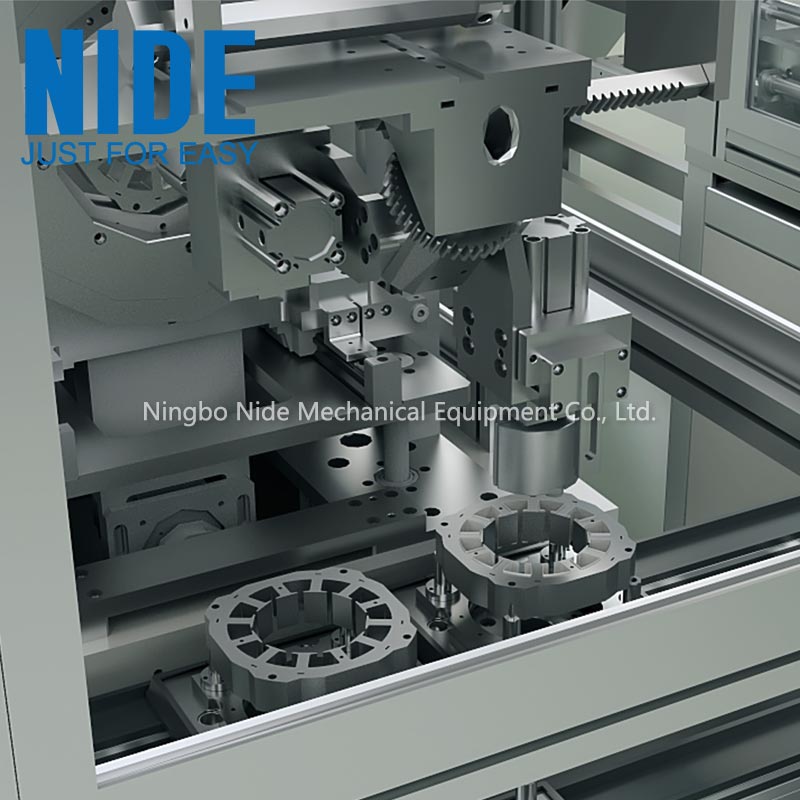

BLDC Stator Manufacturing Process

1.Auto stator feeding

2.Slot Insulation paper inserting

3.Front cap installation

4.End cap installation

5.BLDC Stator Needle Coil Winder

6.Stator Sorting wire

7.Terminal Inserting and testing

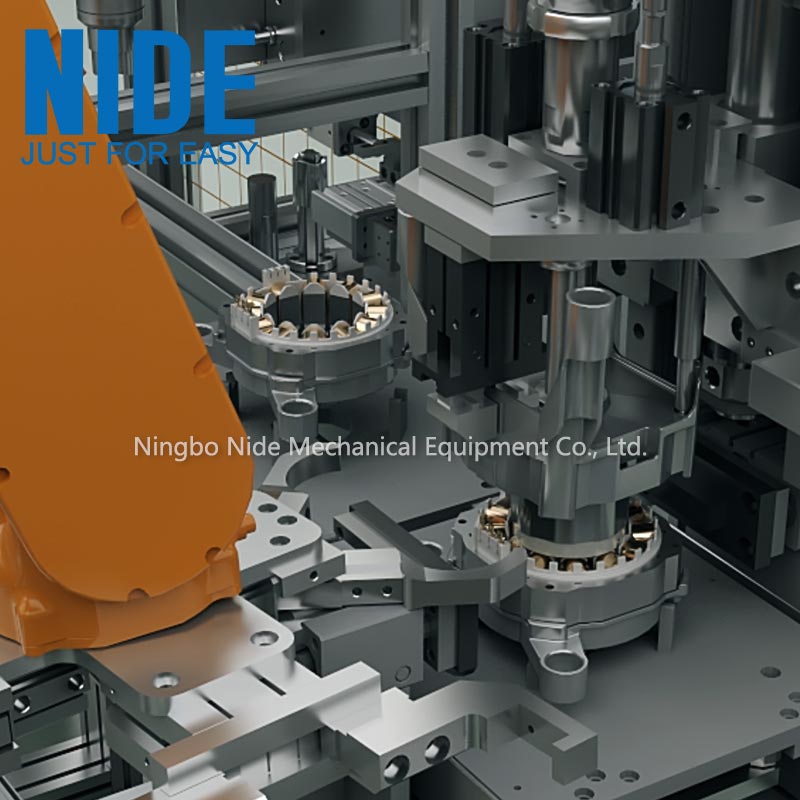

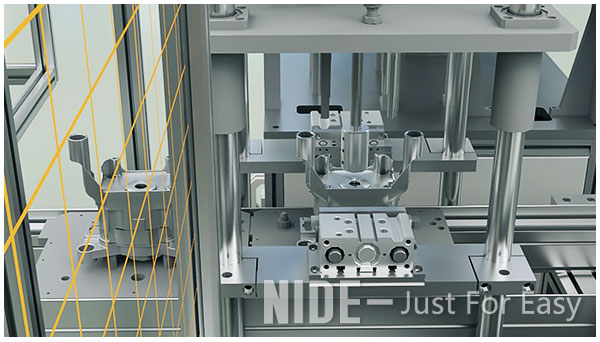

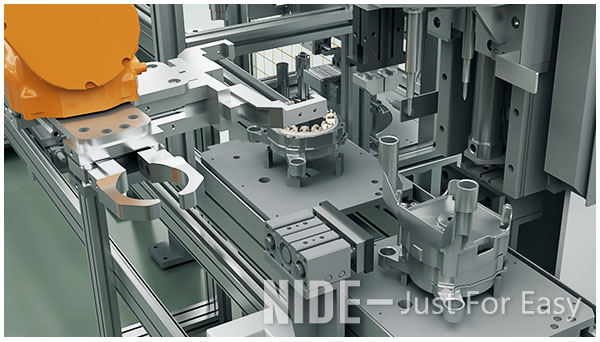

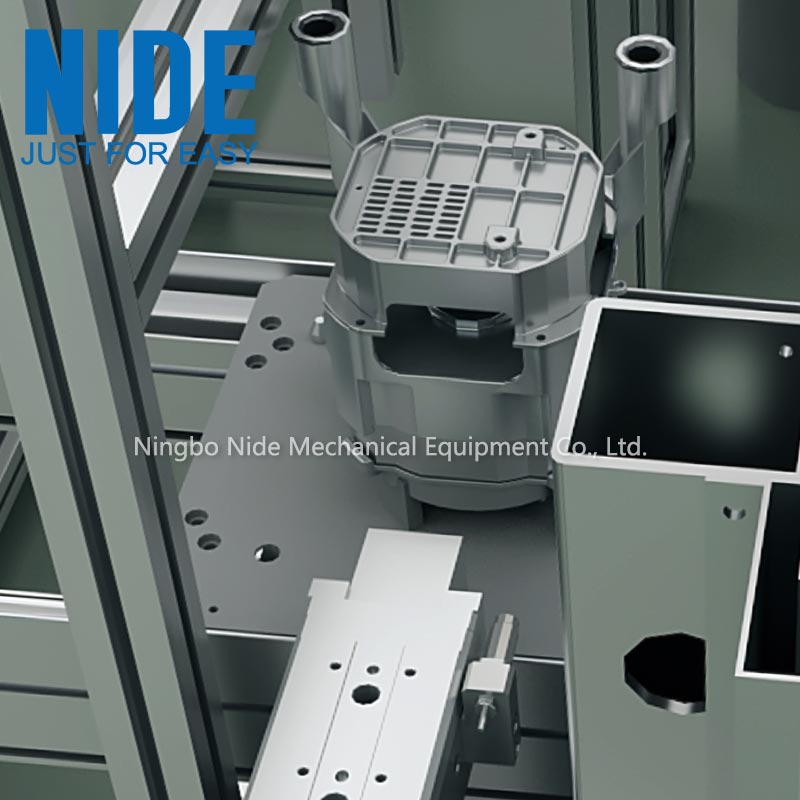

BLDC Motor Product Assembly Line

1.Motor Assembling front shield

2.Assembling rotor and the end shield

3.Tightening screws

4.Electrical control instalation

5.Support installation

6.Laser marking

7.BLDC Motor Running testing

8.Motor Noise testing

9.Motor Unloading

NIDE fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate, easy set-up, user-friendly programming and tooling flexibi
