OUR PRODUCT

Focusing on providing customers with highly automated,informatized,intelligent,and flexible motor manufacturing solution.


4 Stations New Energy Motor Stator Coil Winder And Insertion

New Energy Motor Stator Coil Winder And Insertion

This motor stator coil winding and inserting machine is suitable for new energy motors, induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors,etc.

1. New Energy Motor Stator Coil Winder And Insertion Application

This motor stator coil winding and inserting machine is suitable for new energy motors, induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors,etc.


2. New Energy Motor Stator Coil Winder And Insertion Technical parameters

Product name : 4 Stations New Energy Motor Stator Coil Winder And Insertion
Stator OD :  ≤φ150mm
Stator ID : 40-80mm
Stack Height : 30-80mm
Appropriate Wire :  φ0.2-φ1.2mm
Winding stations :
Winding inserting mode :    chained /same core
Power :   15Kw
Voltage :

 380V  50/60Hz

Dimension :  (L)4050×(W)3000×(H)2500mm
Weight : 4500Kg

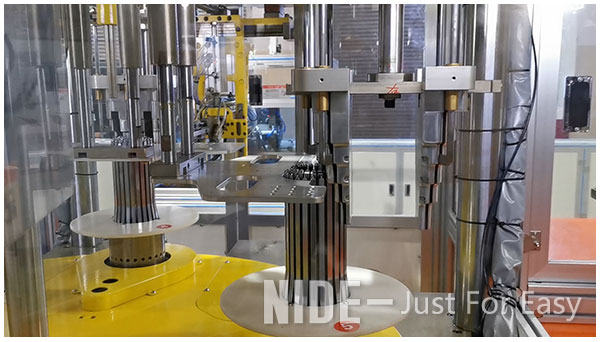

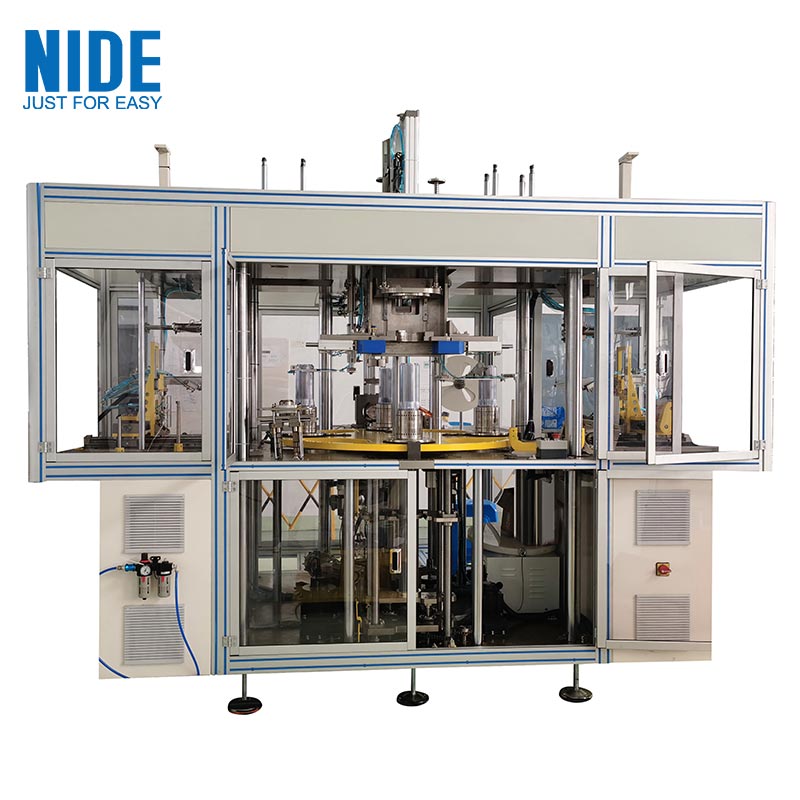

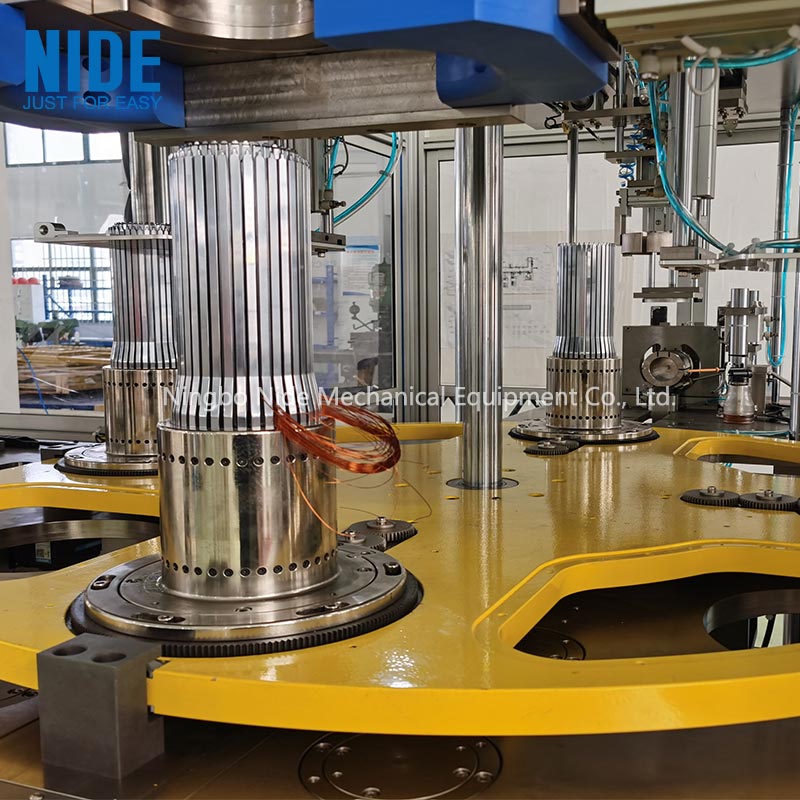

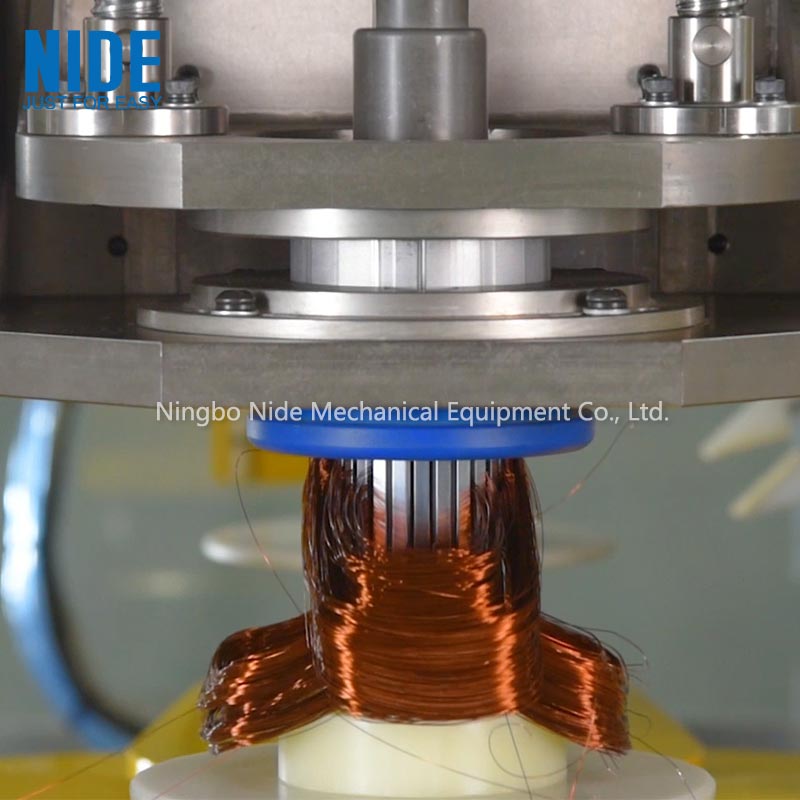

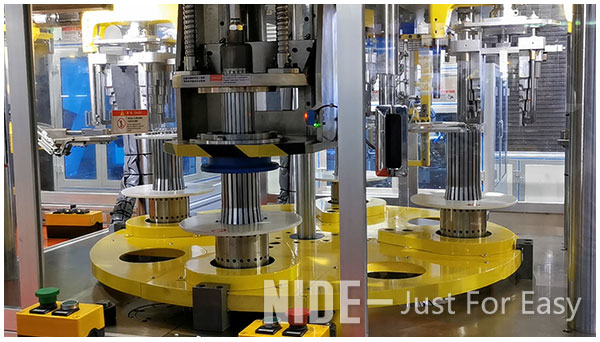

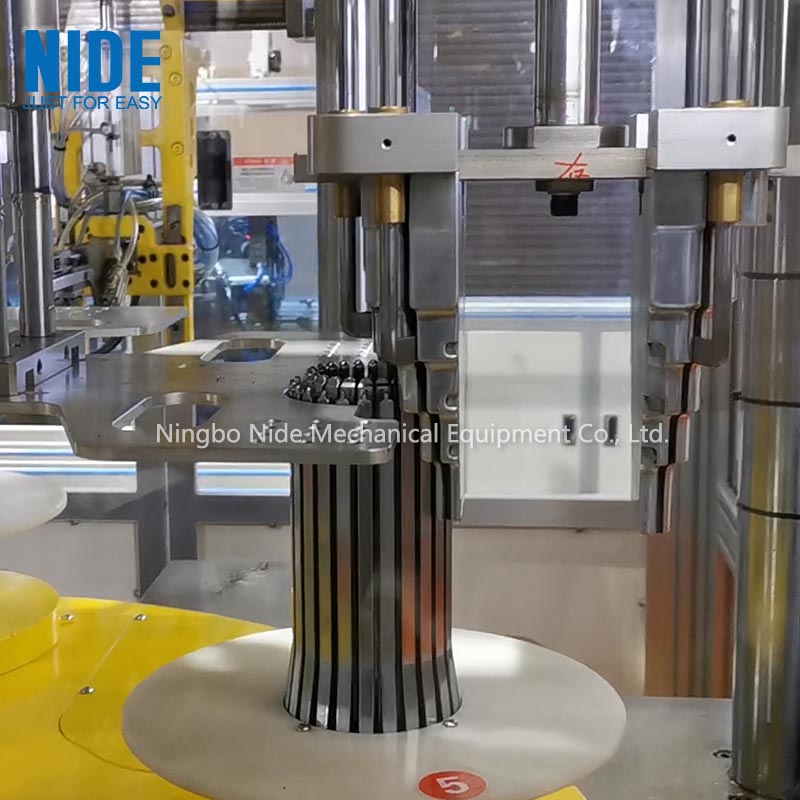

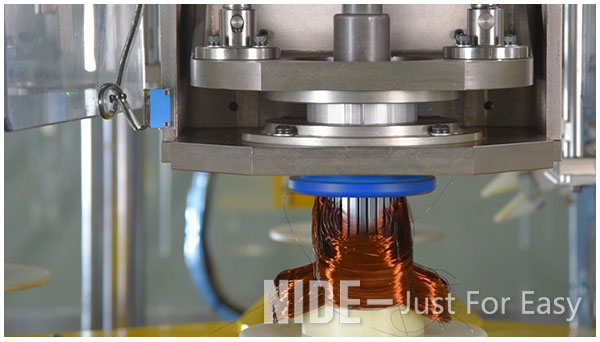

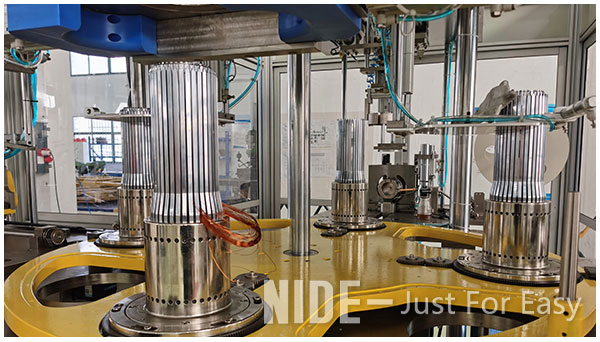

3. New Energy Motor Stator Coil Winder And Insertion Picture show





4. New Energy Motor Stator Coil Winder And Insertion video:
