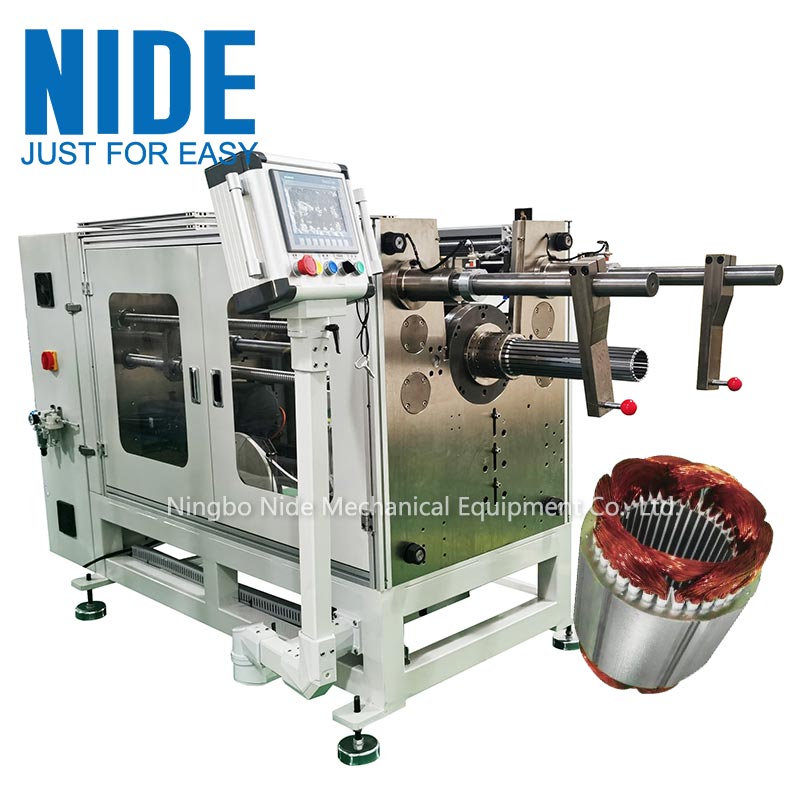

Medium Motor stator wire inserting machine

AC motor stator coil winding inserting machine

This stator wire inserting machine is suitable for large and medium-sized electric motor, induction motor, 3 phase motor.

The stator wire inserting machine is suitable for Large and medium-sized motor stators

The stators are too heavy to do loading and unloading.

We Using a horizontal structure. The change in structure doesn't affect the final inserting quality.


1. Stator wire inserting machine Feature

Can be customized accordingly

Manual loading and unloading

After insertion, no deformation of stator, lamination, or insulation paper

Easy for operation, No skilled operator required

Parameter of different models can be edited, modified and displayed

Quick and easy readjustment for other types of stator

Copper wire and aluminium wire are both applicable


2. Stator wire inserting machine Application

This stator wire inserting machine is suitable for large and medium-sized electric motor, induction motor, 3 phase motor.


3. Stator wire inserting machine Main Technical Parameter:

Product name: Electric Motor stator wire winding inserting machine
Stator ID: φ100-φ150
Stator OD: ≤250mm
Stator height: 80-300mm
Appropriated wire diameter: 0.2~1.2mm
Slot number range: 24~48slot
Power: 380V 50- 60HZ 3KW
Dimension: 3210*820*1600mm
Weight: 800KG

The parameters of the stator wire inserting machine can be adjusted.

We can customize the machine according to customer needs.

Please feel free to contact us if you need it.

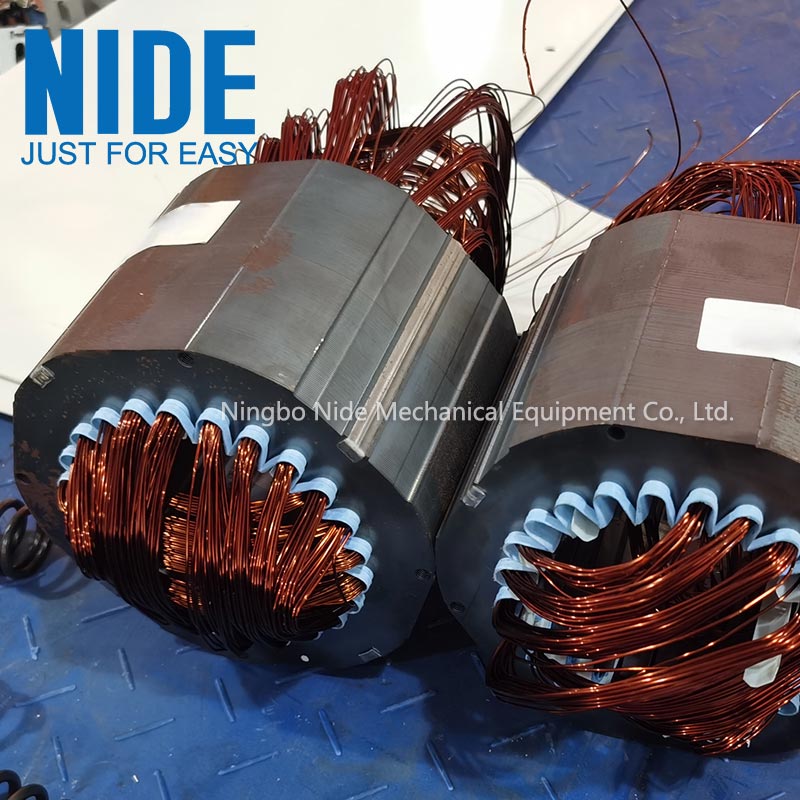

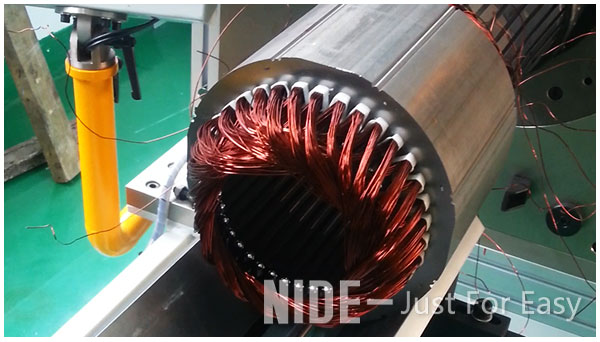

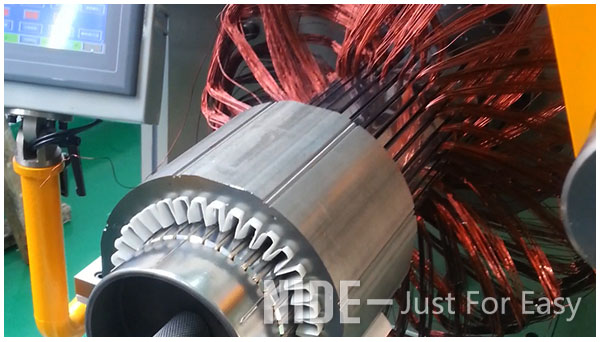

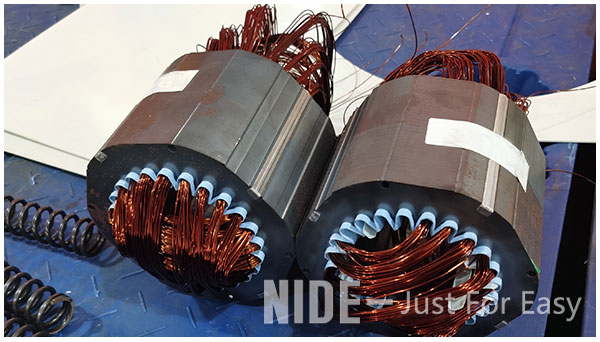

4. Stator wire inserting machine Picture Show




 The Horizontal Type Stator Winding Inserting Machine working video
