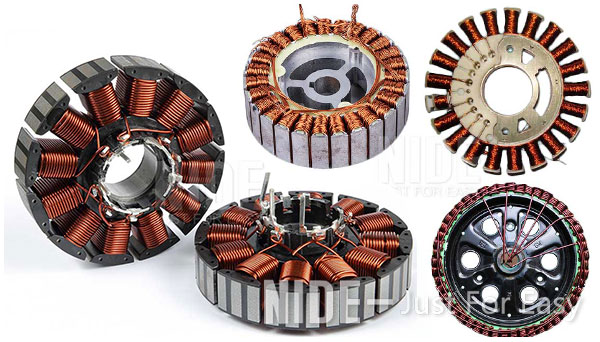

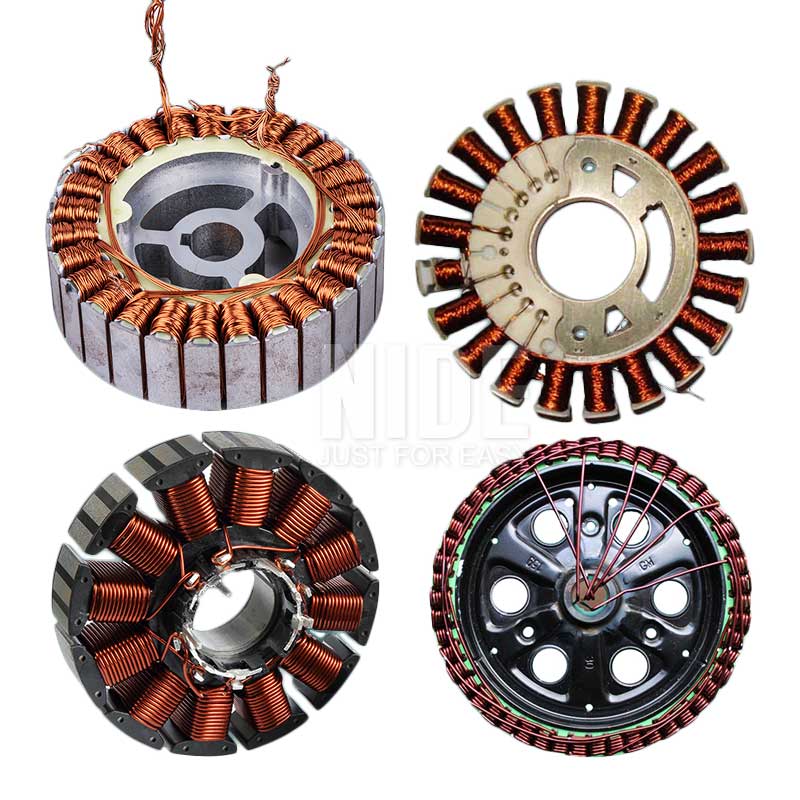

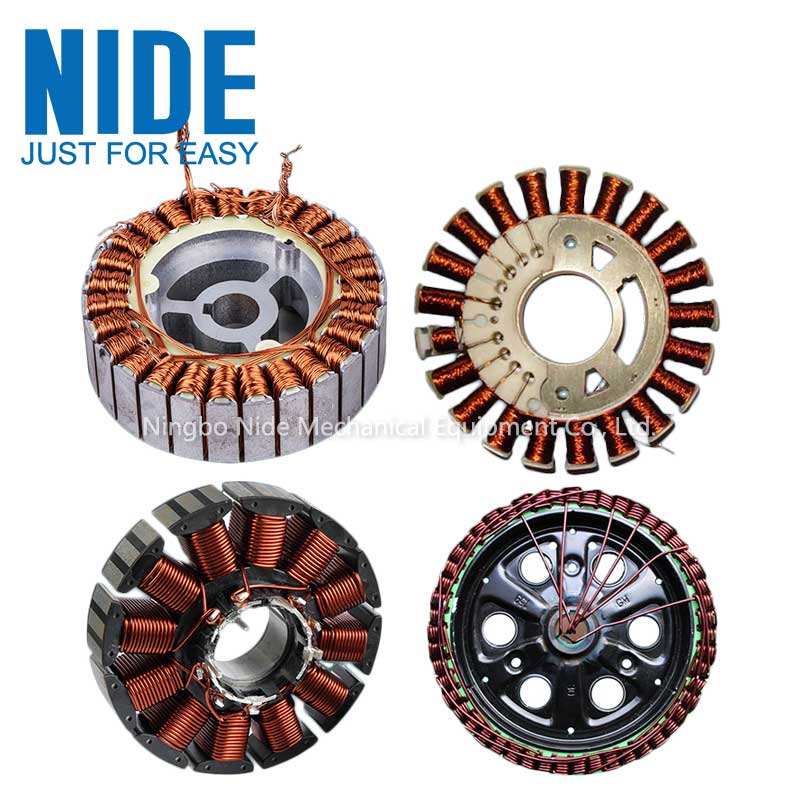

This Automatic BLDC outer slot stator production assembly line is suitable for producing varies type BLDC motor outer slot stator, such as electric bicycles motor stator, electric vehicle motor stator, hub motor stator, DD BLDC washing machine motor stator, etc.

The Brushless direct current (BLDC) motors are constructed with a outer slot stator and when this outer slot stator has magnets, it is called a Permanent Magnet Synchronous Motor (PMSM). The outer slot stator can be configured in different ways, the most common configuration is an internal rotor motor (rotor located inside a multiphase wound stator). Outer slot stator motors have the opposite construction. The outer slot stator is placed around the stator and has permanent magnets mounted on the inner diameter of the outer slot stator housing. It then rotates around the internal stator.

The BLDC outer slot stators are shorter than internal rotor motors and offer a cost-effective solution particularly for large series. In these motors the permanent magnets are mounted on the rotor housing which rotates around the internal stator with the windings. Thanks to the higher inertia of the rotor, outer slot stator motors have a lower torque ripple than internal rotor motors.

The movement, processing data is programmable, winding is tidy and compact, machines are flexible, easy set-up, fast, and user-friendly.

We could accomplish tailored and innovative solutions to meet all quality and production requirements.

Our fully automatic motor assemble line is suitable for varies type induction motor assembly, BLDC motor assembly, universal electric motor and DC motor assembly, It could automatically assemble the rotor, armature, stator and motor components together . It is used for washing machine motor, fan motor, BLDC motor, DD motor, electric bicycles motor , electric vehicle motor , hub motor, DD BLDC washing machine motor , compressor motor, vacuum cleaner motor, power tool motor, wiper motor, mixer motor, RO pump motor, NEMA motor, DC motor, etc. It features fast, efficient, accurate winding, easy set-up, user-friendly programming and tooling flexibility.

Nide provides turn-key service and technical consultance for motor production technology, it covers varies type motors. We could accomplish tailored and innovative solutions to meet all quality and production requirements, aim at making motor production easier.
