Hoverboard Wheel Motor Stator Winding machine for Smart balance Electric Scooter Segway
The Hoverboard Wheel Motor stator winding machine is suitable for 2 wheels Smart Self Balancing Electric Scooter motor . The Hoverboard Wheel Motor is a three-phase AC, permanent-magnet brushless motor.In a system that requires high power, AC motors are more efficient. AC motors also have more control over their start-up torque than DC motors, making the hoverboards just slightly less terrifying.
(1) Introduction and Features
The Hoverboard Wheel Motor stator winding machine equips with the servo control system.
it is designed for Smart balance Electric Scooter wheel motor coil winding.
It could diagnose the fault, count the output, etc.
The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed.
The Hoverboard Wheel Motor winding machine adopts double stations winding design.
It has high production efficiency and reduced labor costs.
The Hoverboard Wheel Motor stator winding machine has remote diagnostics function.
It is easy to operate and maintain .
(2) Application

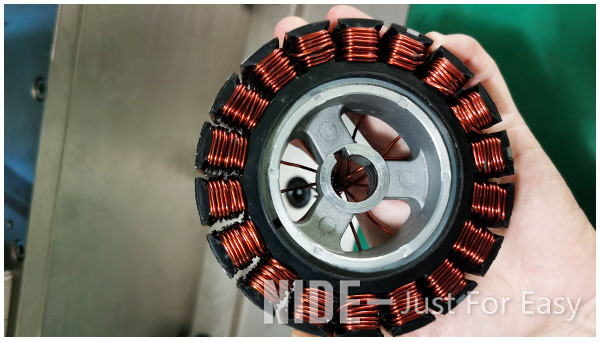

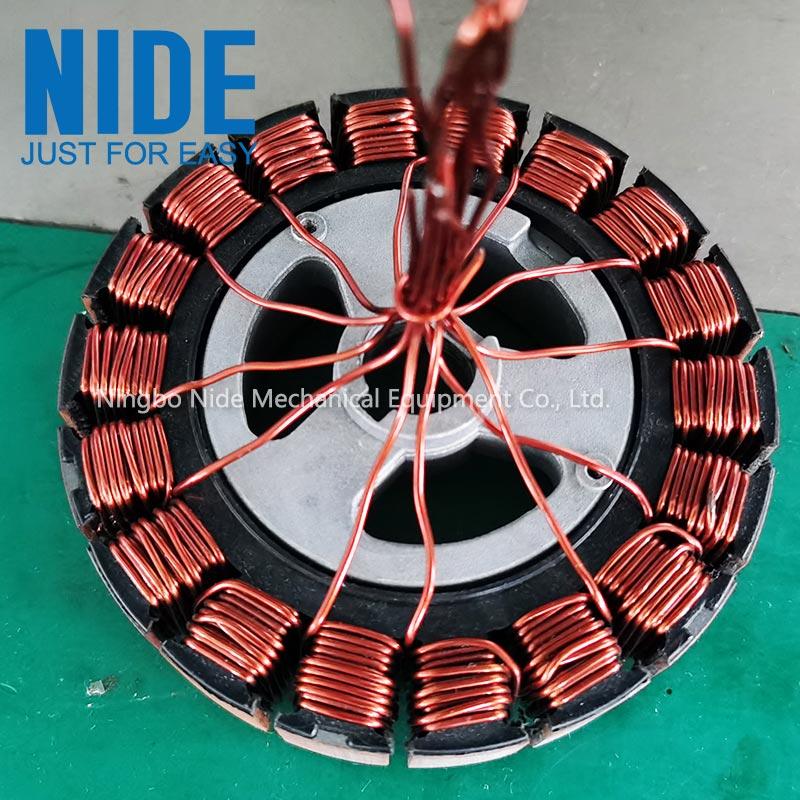

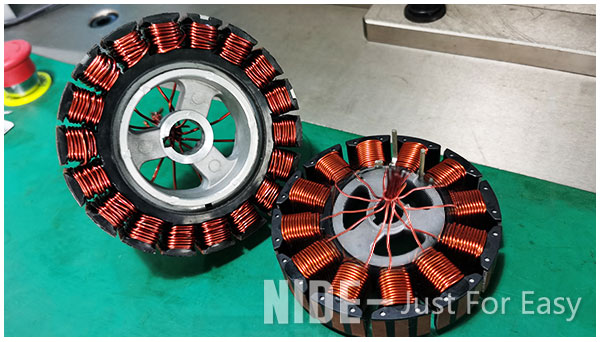

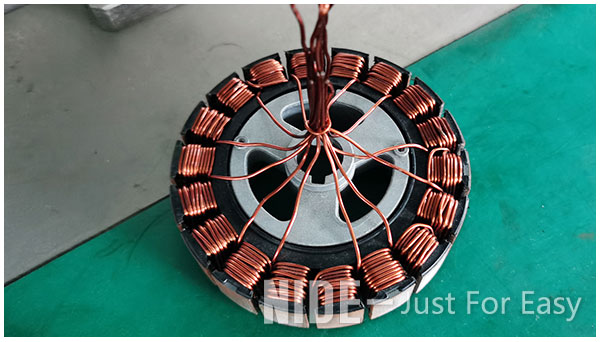

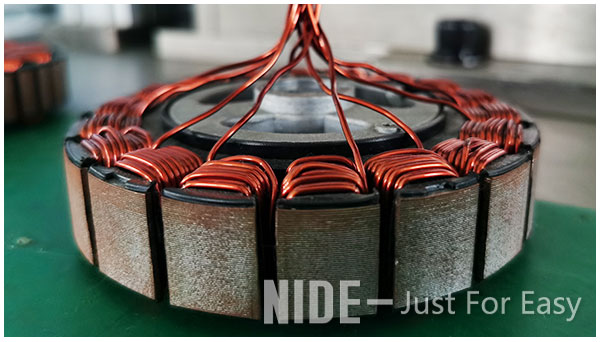

This Hoverboard wheel motor winding machine is used for the wheel hub motor stator coil winding, such as Electric Scooter, electric vehicles, battery cars, electric motorcycles, Self Balancing cars, new energy vehicles, etc.
(3) Technical parameter:
| Product name: | Automatic Hoverboard wheel motor stator winding machine |
| Wheel motor Stator ID : | 10~100mm |
| Wheel motor Stator O.D : | 80-310mm |
| Wheel motor Stator stack lenght : | 10-50mm |
| Wire dia : | 0.2~1.3mm |
| Max. winding speed : | 500RPM |
| Winding station: | 2 |
| Parallel winding wire number : | 1~8 |
| Voltage : | three pahse 380V 50HZ , single pahse 220V 50HZ |
| Air pressure : | 0.4-0.7 MPA |
| Total power : | ＜7KW |
| Weight : | about 750KG |
| Dimension : | 1100x1000x1700mm |

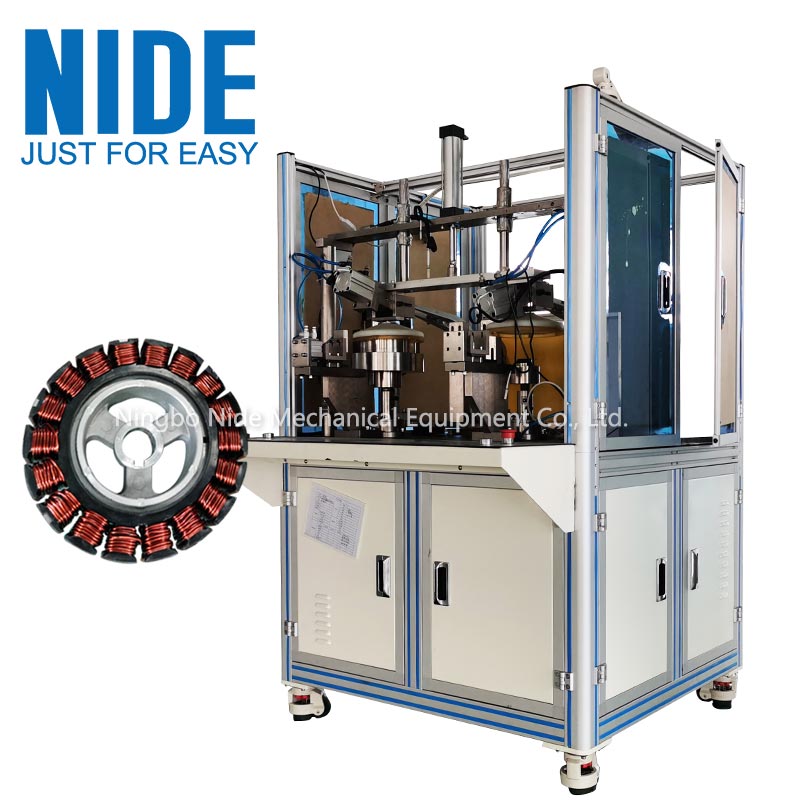

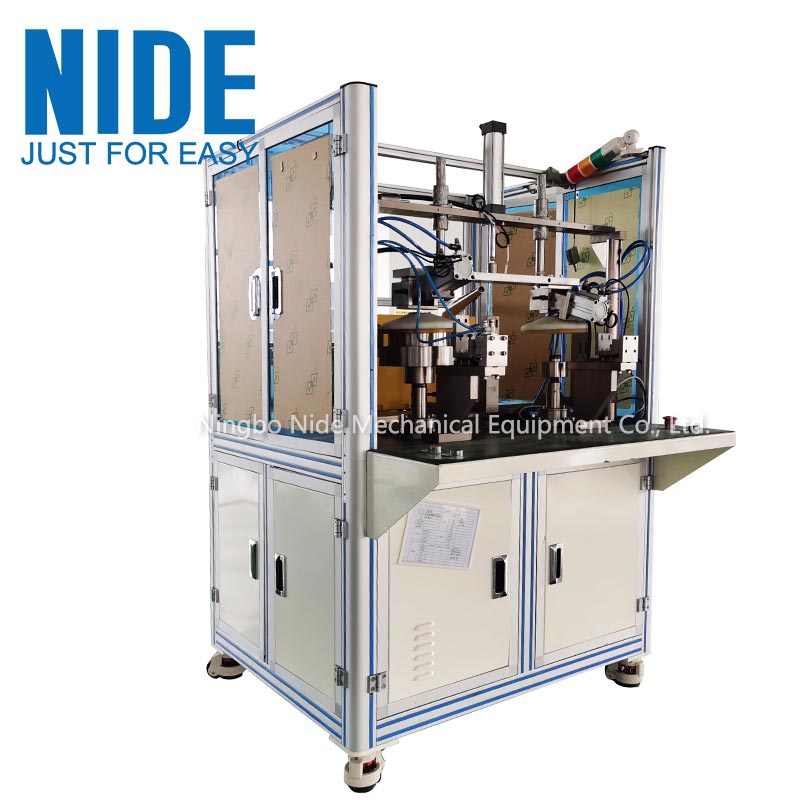

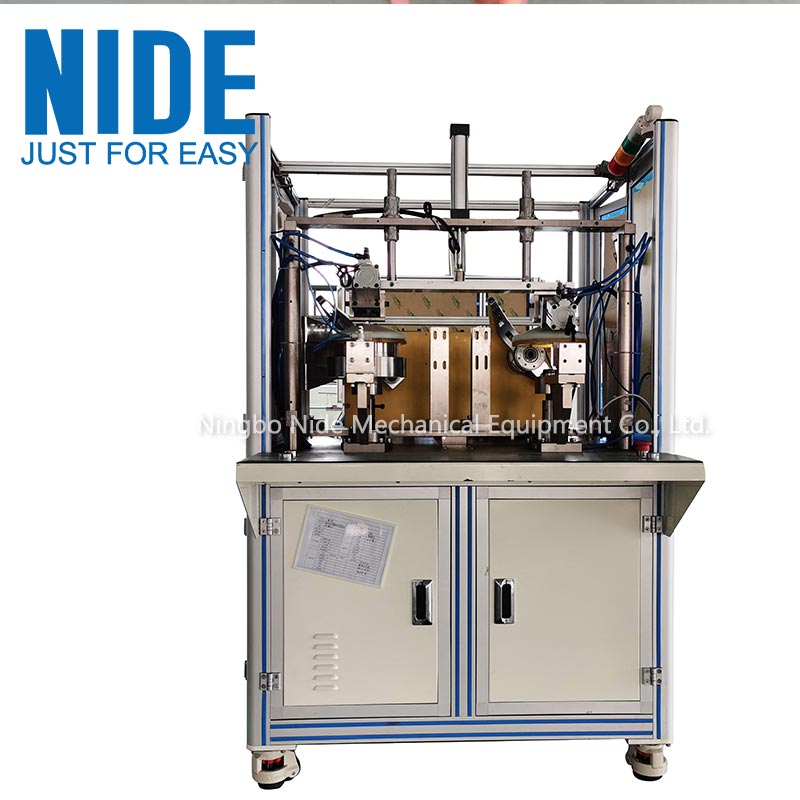

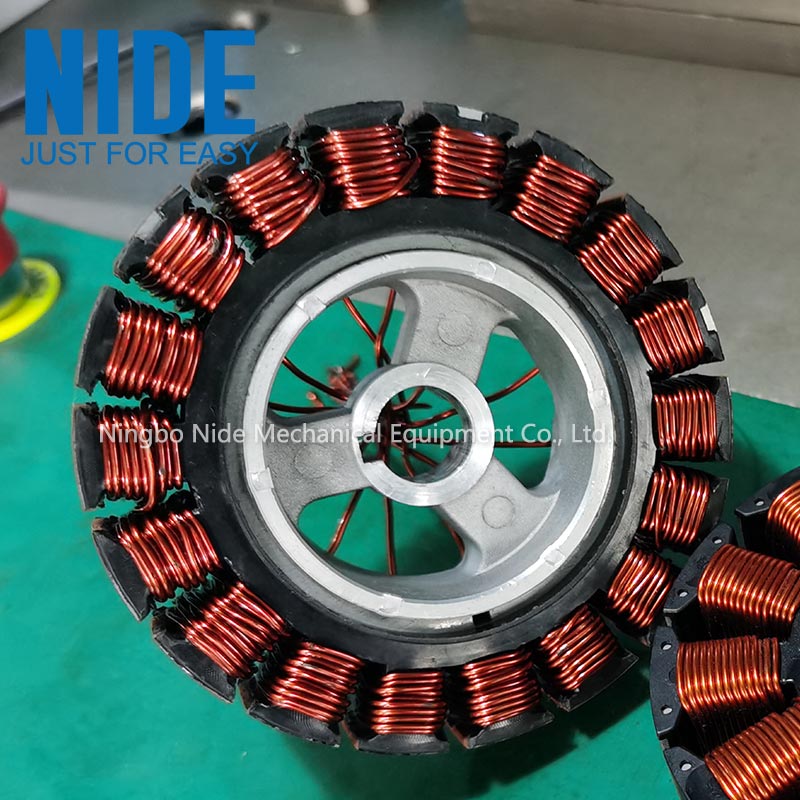

(4) Picture show:
The Hoverboard wheel motor stator winding machine video https://youtu.be/lyO92w45O4w
